MPI Module Fan Control Resistor Jumper, High Speed

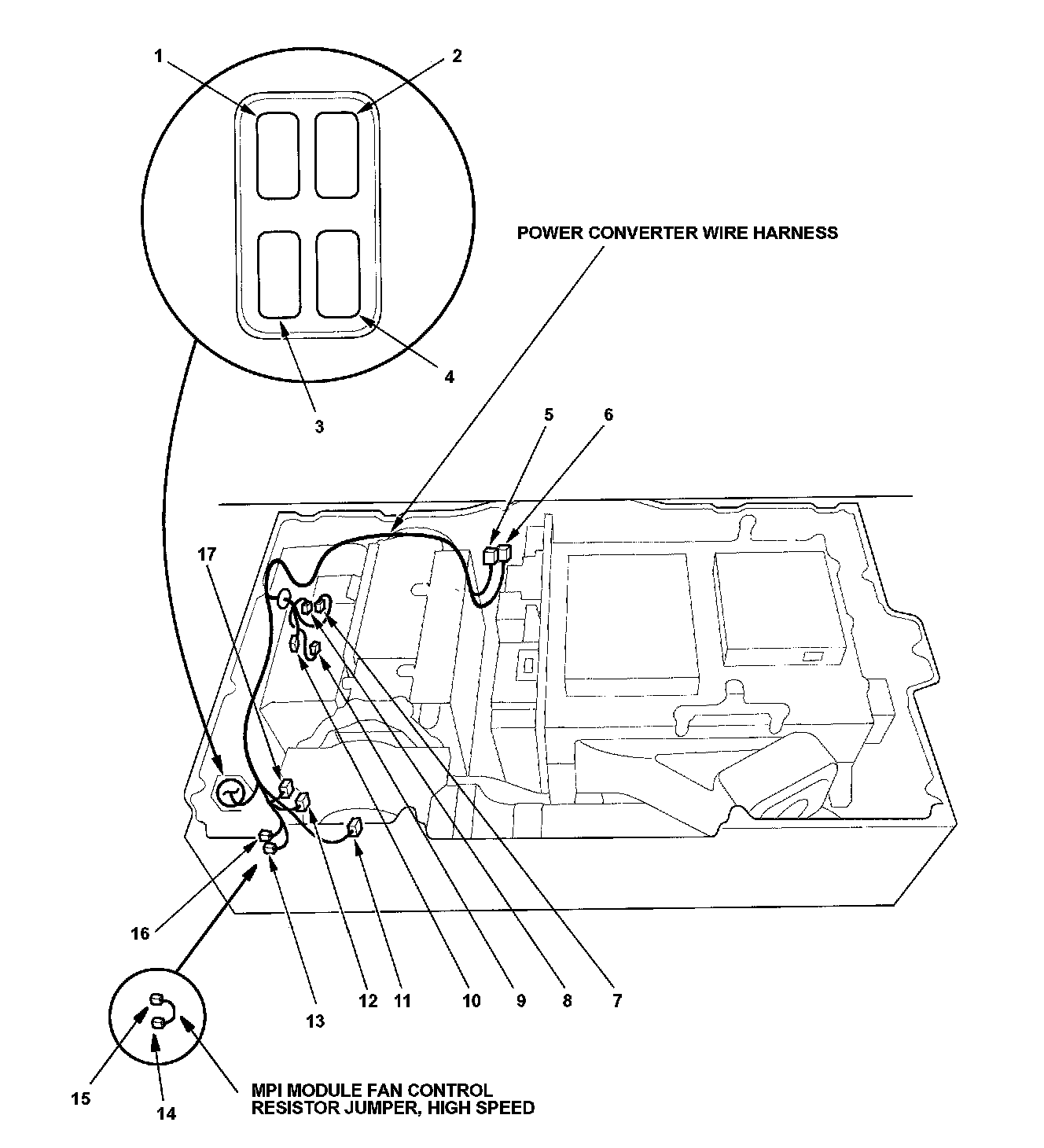

Harness Location View:

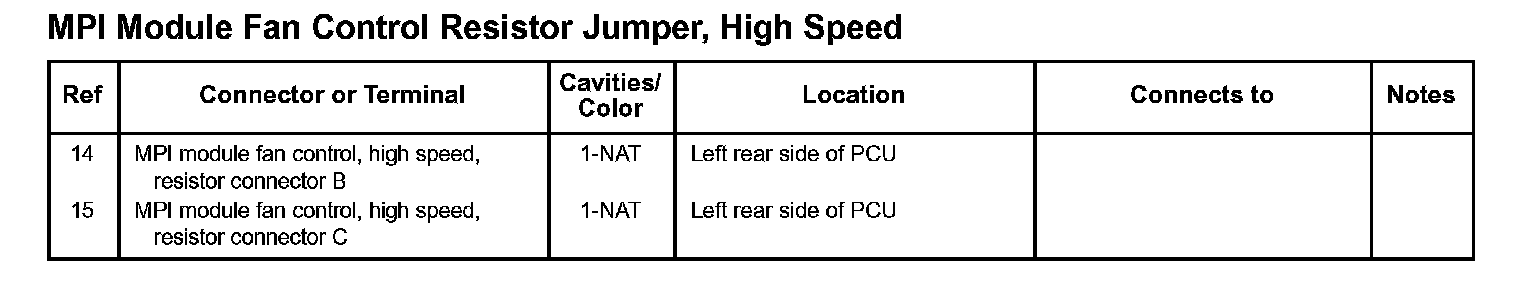

MPI Module Fan Control Resistor Jumper, High Speed:
