Wiper Relay
Wiper Relay

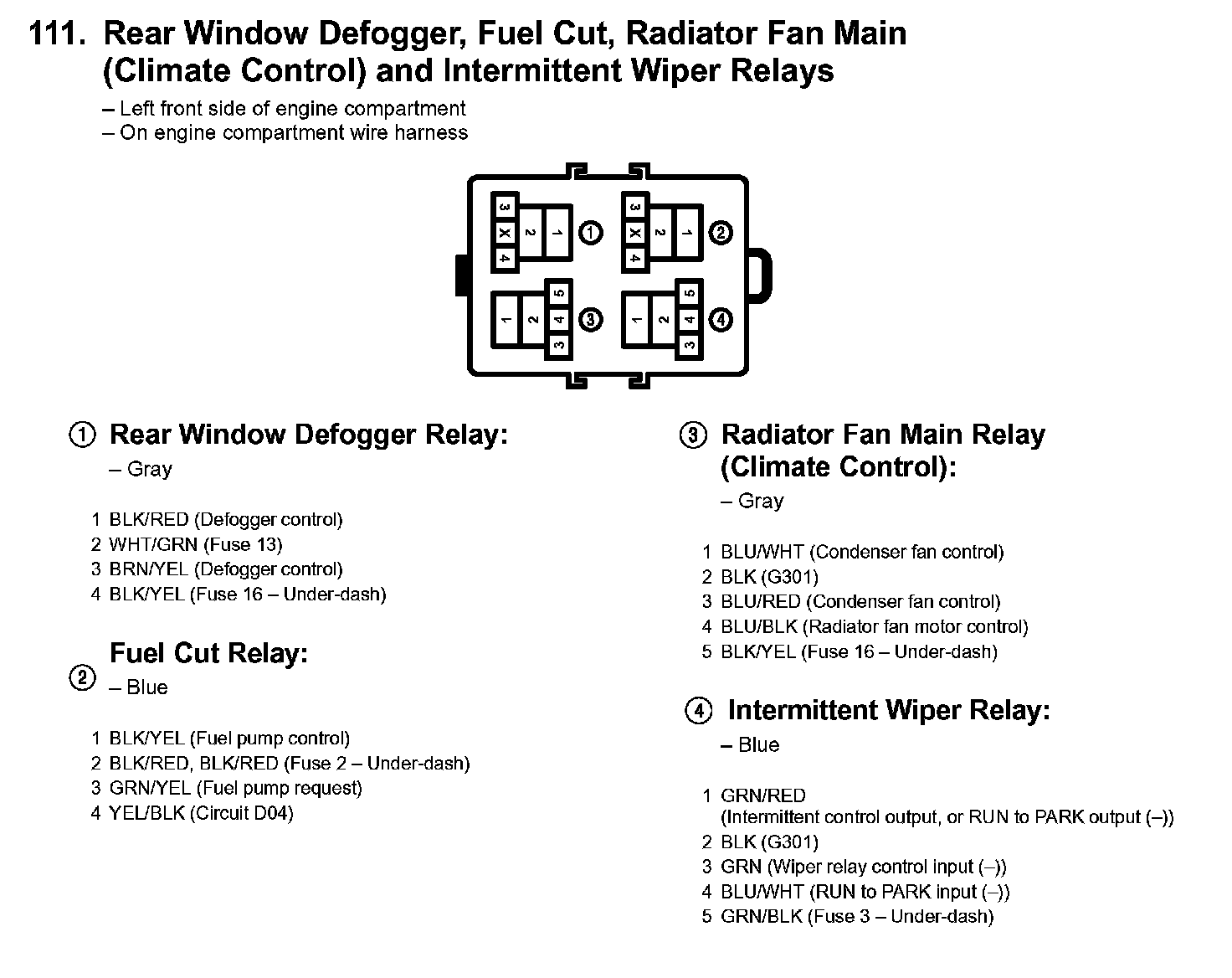

111. Rear Window Defogger, Fuel Cut, Radiator Fan Main (Climate Control) And Intermittent Wiper Relays:
