Home >> Honda >> 2005 >> Insight L3-1.0L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 1-25 >> 3

Views 1-25: 3

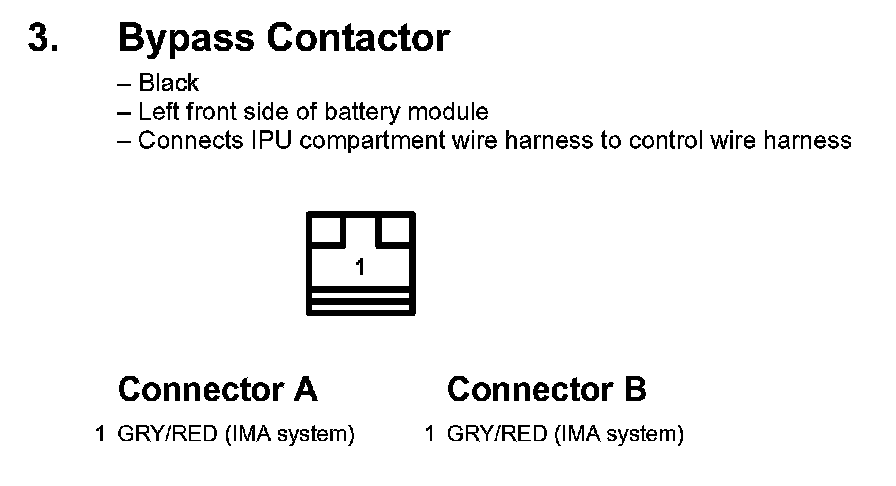

3. Bypass Contactor:



4. Bypass Resistor:

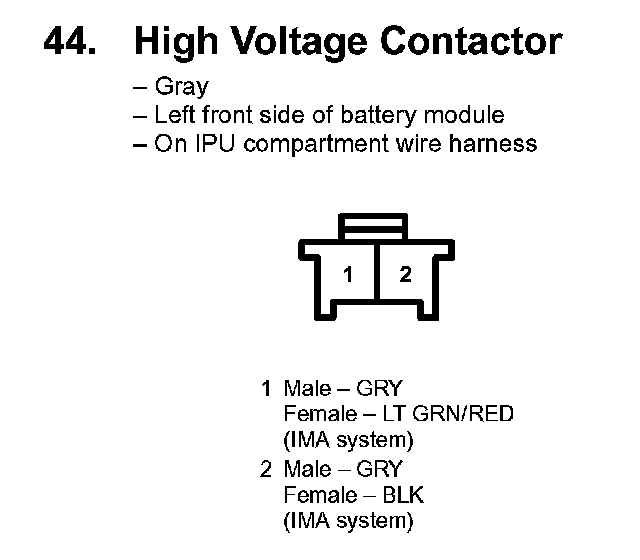

44. High Voltage Contactor:



80. IMA Diode:
