Brake Fluid Pressure Sensor/Switch

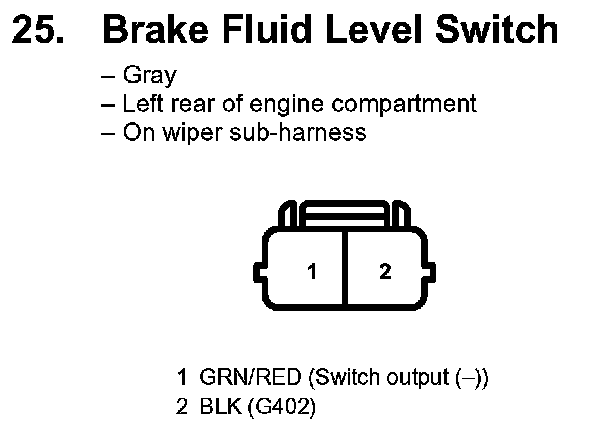

25. Brake Fluid Level Switch:

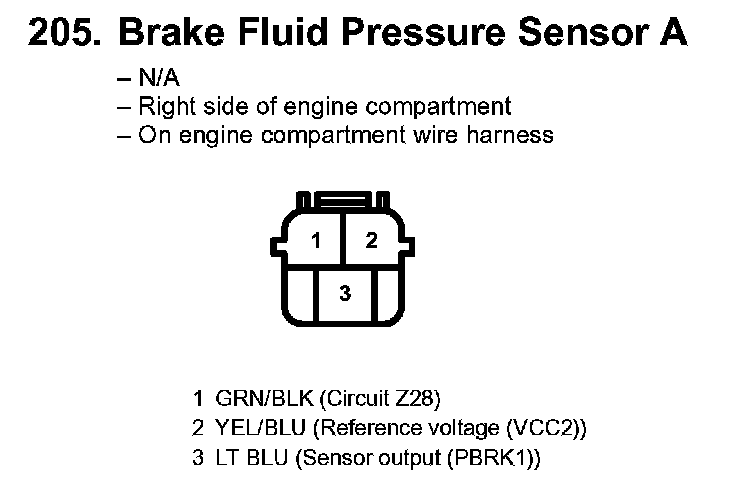

205. Brake Fluid Pressure Sensor A:

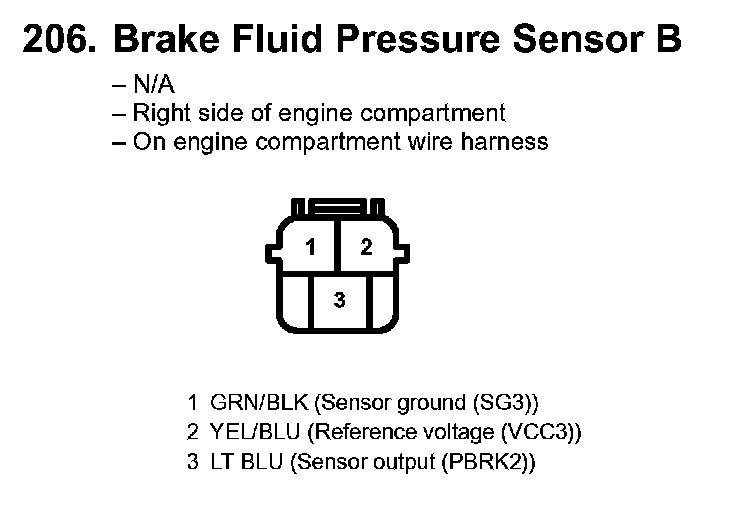

206. Brake Fluid Pressure Sensor B:
