Control Unit Input Test
Control Unit Input Test1. Before testing, troubleshoot the multiplex control system.
2. Remove the driver's dashboard lower cover.

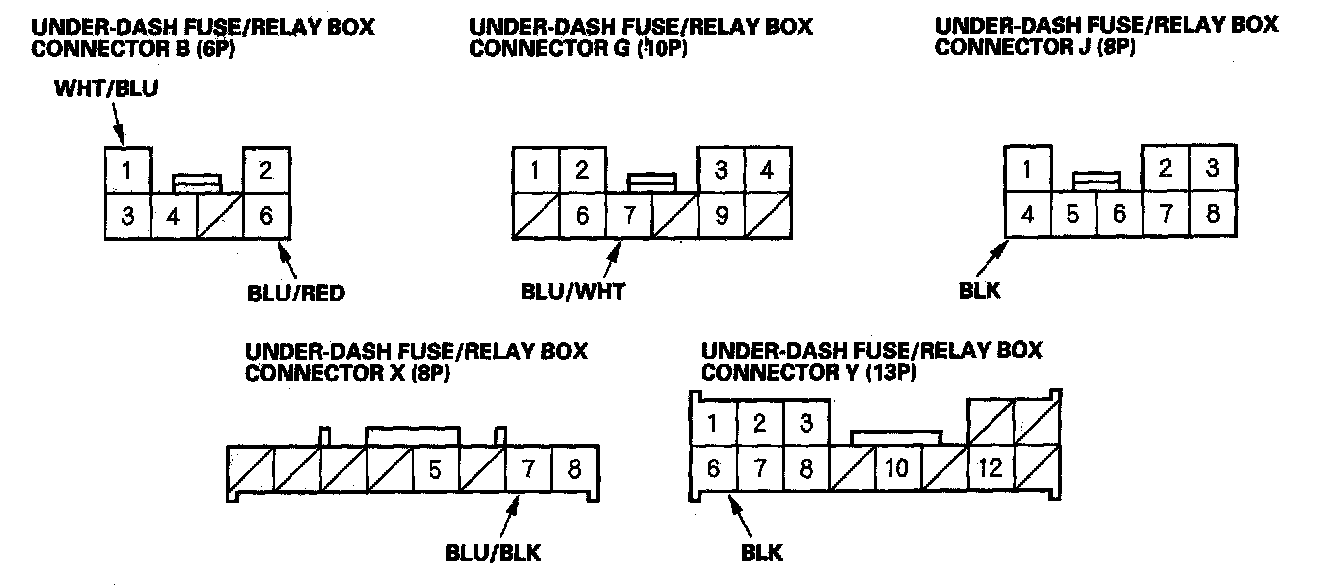

3. Disconnect the under-dash fuse/relay box connectors B, G, J, X and Y.
NOTE: All connectors are wire side of female terminals.
4. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals are OK, go to step 5.

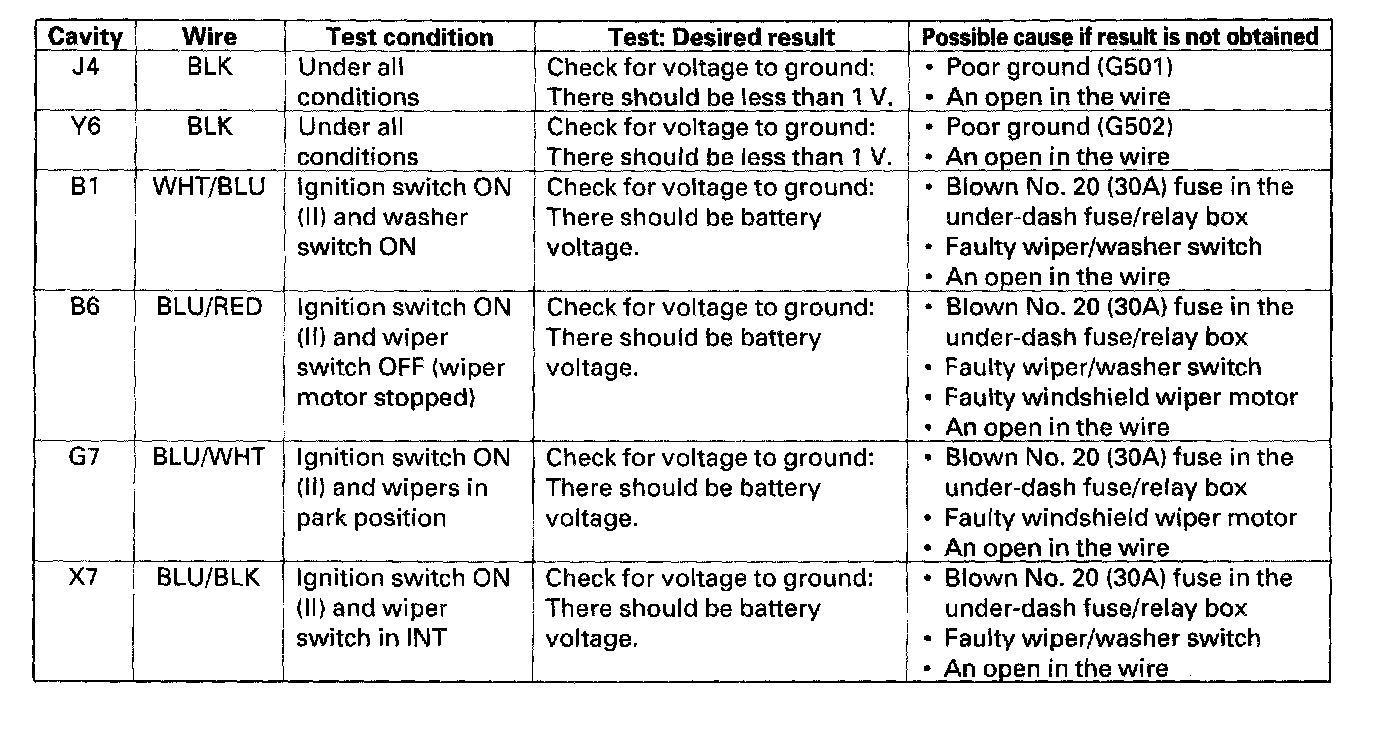

5. Reconnect the connectors, and make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the multiplex control unit must be faulty. Replace the under-dash fuse/relay box assembly.
