Front Door Window Motor: Diagrams

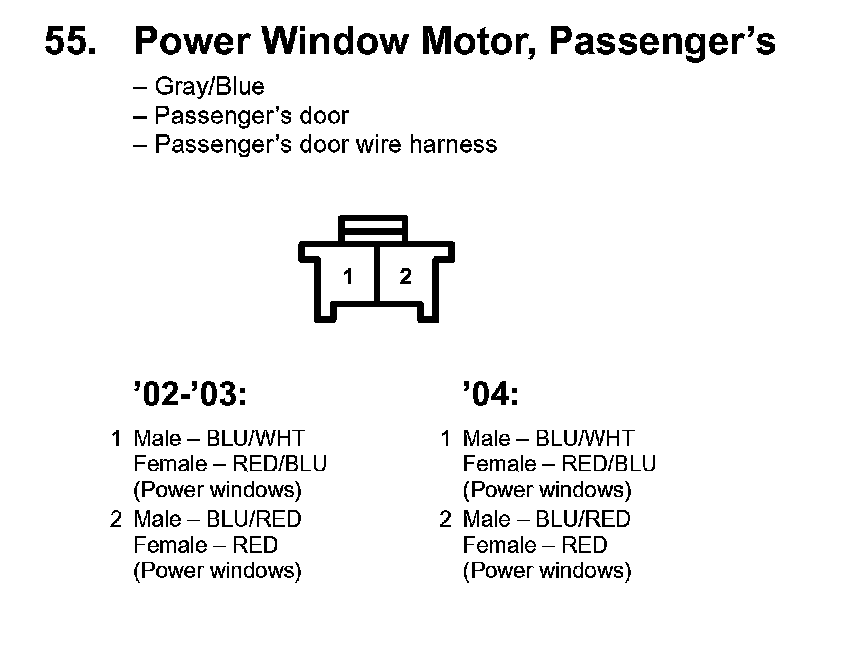

55. Power Window Motor, Passenger's:

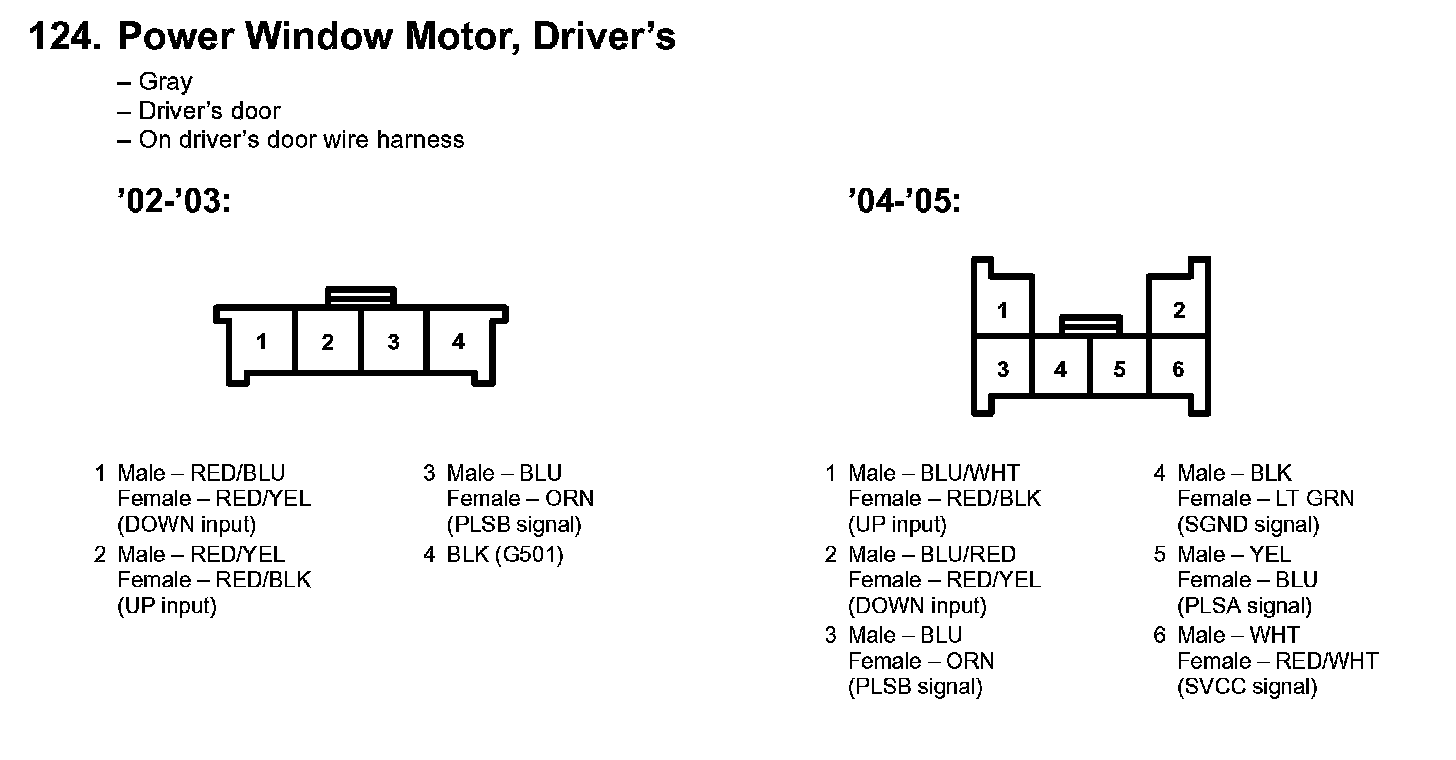

124. Power Window Motor, Driver's:
