Descriptions

System Description

'04-05 models

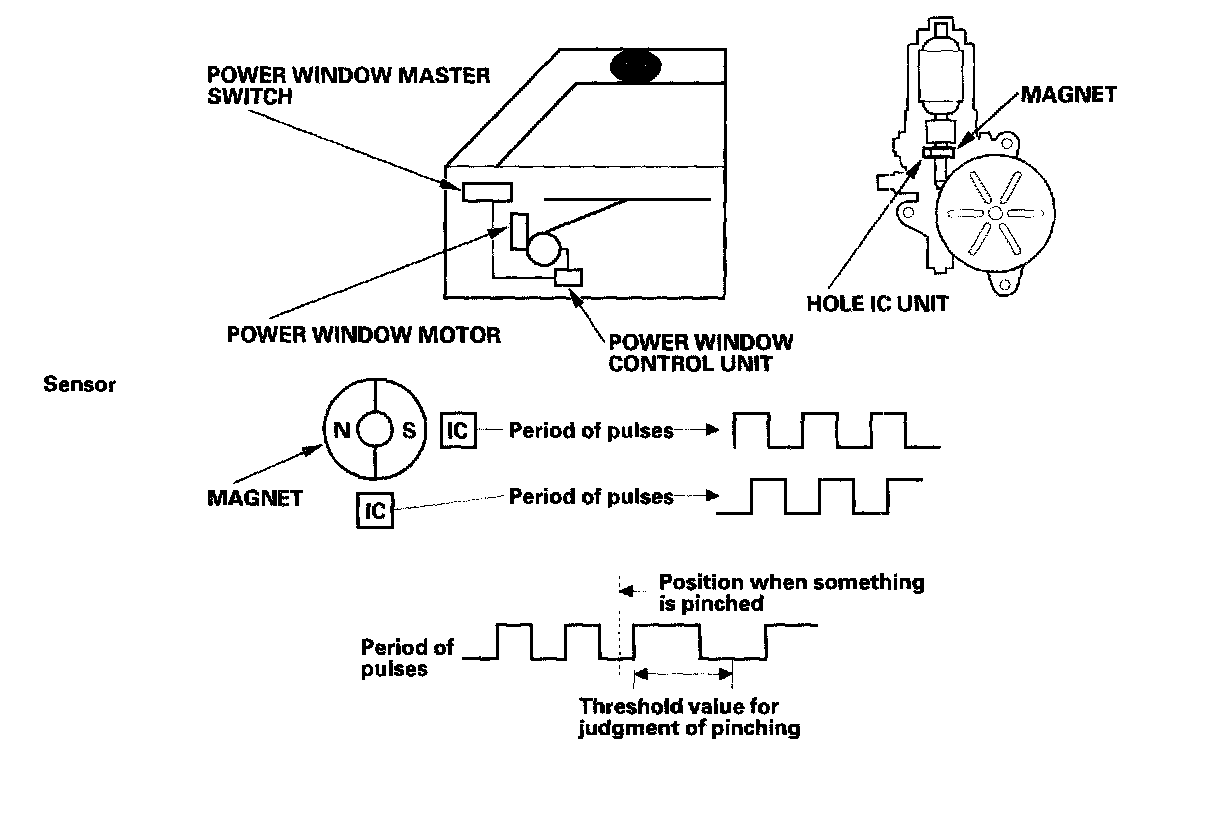

The driver's window will stop and automatically open if you pinch your hand or something during auto-up operation. The system is composed of the power window master switch, the power window control unit and the driver's window motor.
The power window motor incorporates a pulser which generates pulses during the motor's operation and sends the pulses to the power window control unit. As soon as the power window control unit detects no pulses from the pulser, the control unit makes the power window motor stop and reverse.

Resetting the Power Window Control Unit

Resetting the power window control unit is required after performing the following procedures:
- Disconnecting the battery
- Removing the No. 6 (7.5 A) and/or the No. 23 (20 A) fuses in the under-dash fuse/relay box.
- Disconnecting the driver's door wire harness

1. Turn the ignition switch ON (II).
2. Move the driver's window all the way down holding the driver's switch in the AUTO DOWN position; when the window reaches the bottom, hold the driver's window,switch in the AUTO DOWN position for 2 seconds.
3. Move the driver's window all the way up holding the driver's switch in the AUTO UP position; when the window reaches the top, hold the driver's window switch in the UP position for 2 seconds.
4. If the window does not work in AUTO, repeat steps 1 through 3.
