Countershaft Bearing Replacement

Countershaft Bearing Replacement

Special Tools Required
^ Adjustable bearing puller, 20 - 40 mm 07736-A01000B
^ Oil seal driver 07JAD-APL90100
^ Slide hammer, commercially available

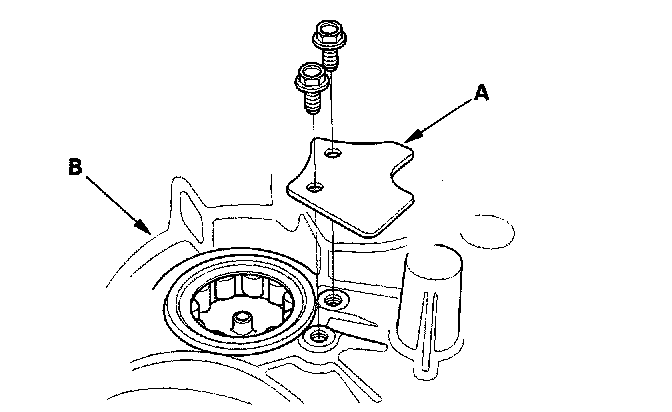

1. Remove the bearing set plate (A) from the clutch housing (B).

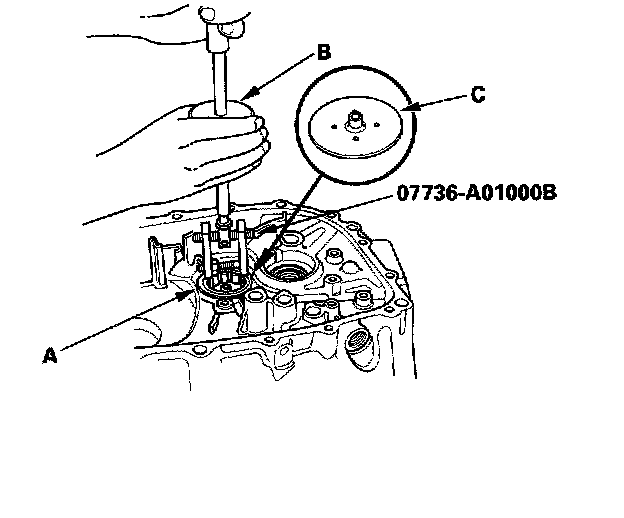

2. Remove the needle bearing (A) using the special tool and a commercially available 3/8"-16 slide hammer (B), then remove the oil guide plate C.





3. Position the oil guide plate C and new needle bearing (A) in the bore of the clutch housing (B).
4. Install the needle bearing using the special tool.

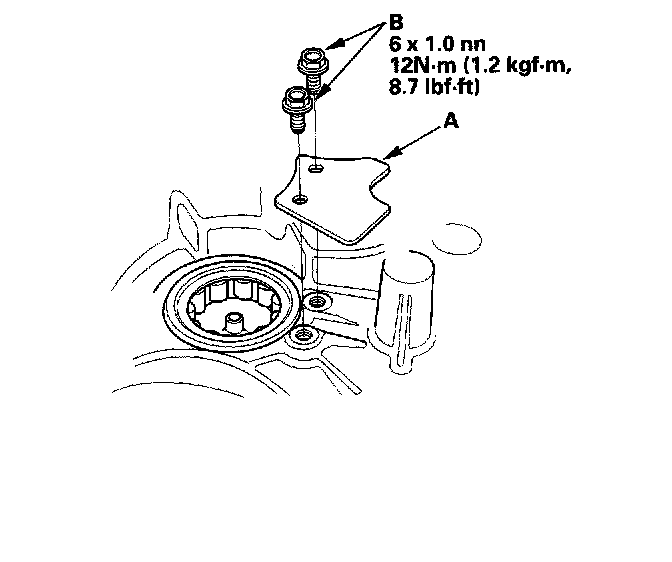

5. Install the bearing set plate (A) with bolts (B).
