Final Driven Gear/Carrier Replacement

Final Driven Gear/Carrier Replacement

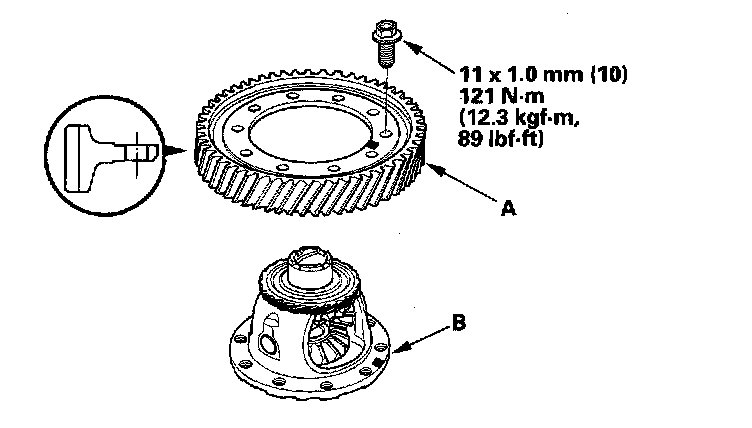

1. Remove the bolts (left-hand threads) in a crisscross pattern in several steps, then remove the final driven gear (A) from the differential carrier (B).
2. Install the final driven gear with the chamfer on the inside diameter facing the carrier. Align the marks on the final driven gear and the carrier. Tighten the bolts in a crisscross pattern in several steps.
