Pinout Values and Diagnostic Parameters

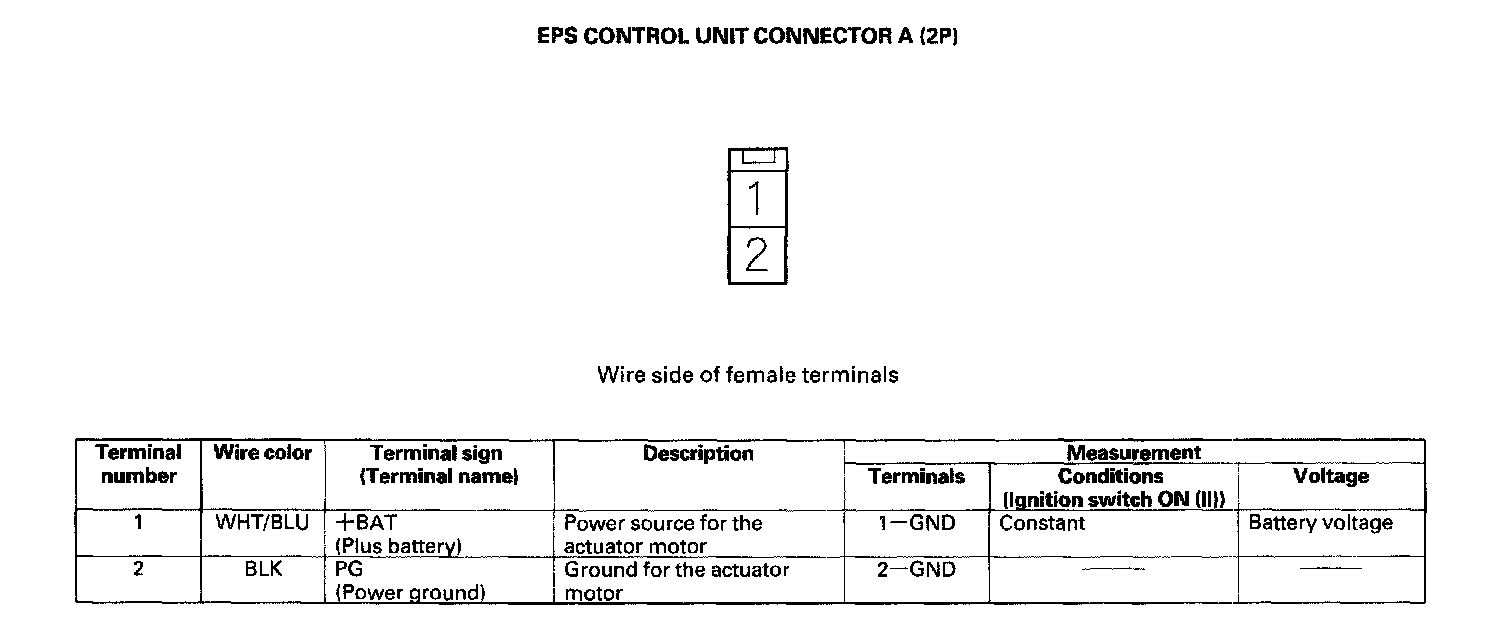

EPS Control Unit Inputs and Outputs at Connector A (2P)

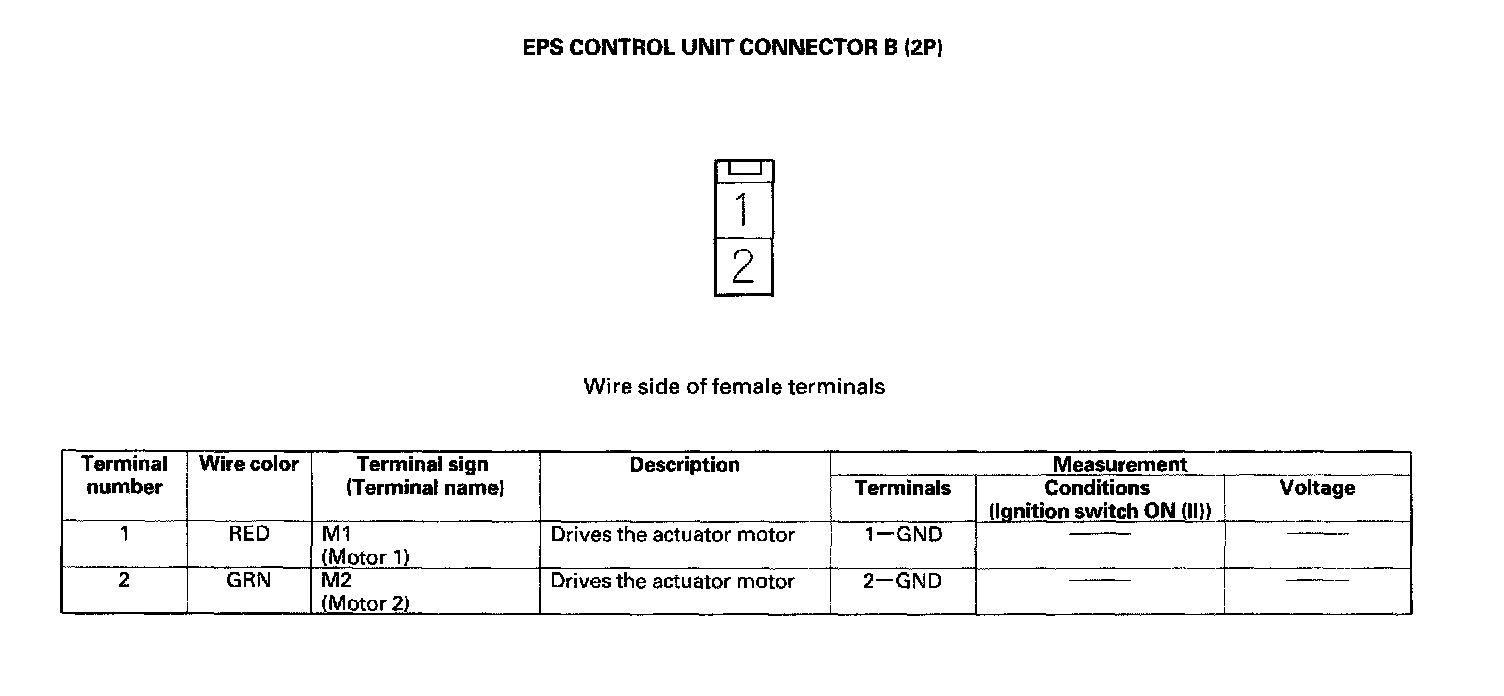

EPS Control Unit Inputs and Outputs at Connector B (2P)

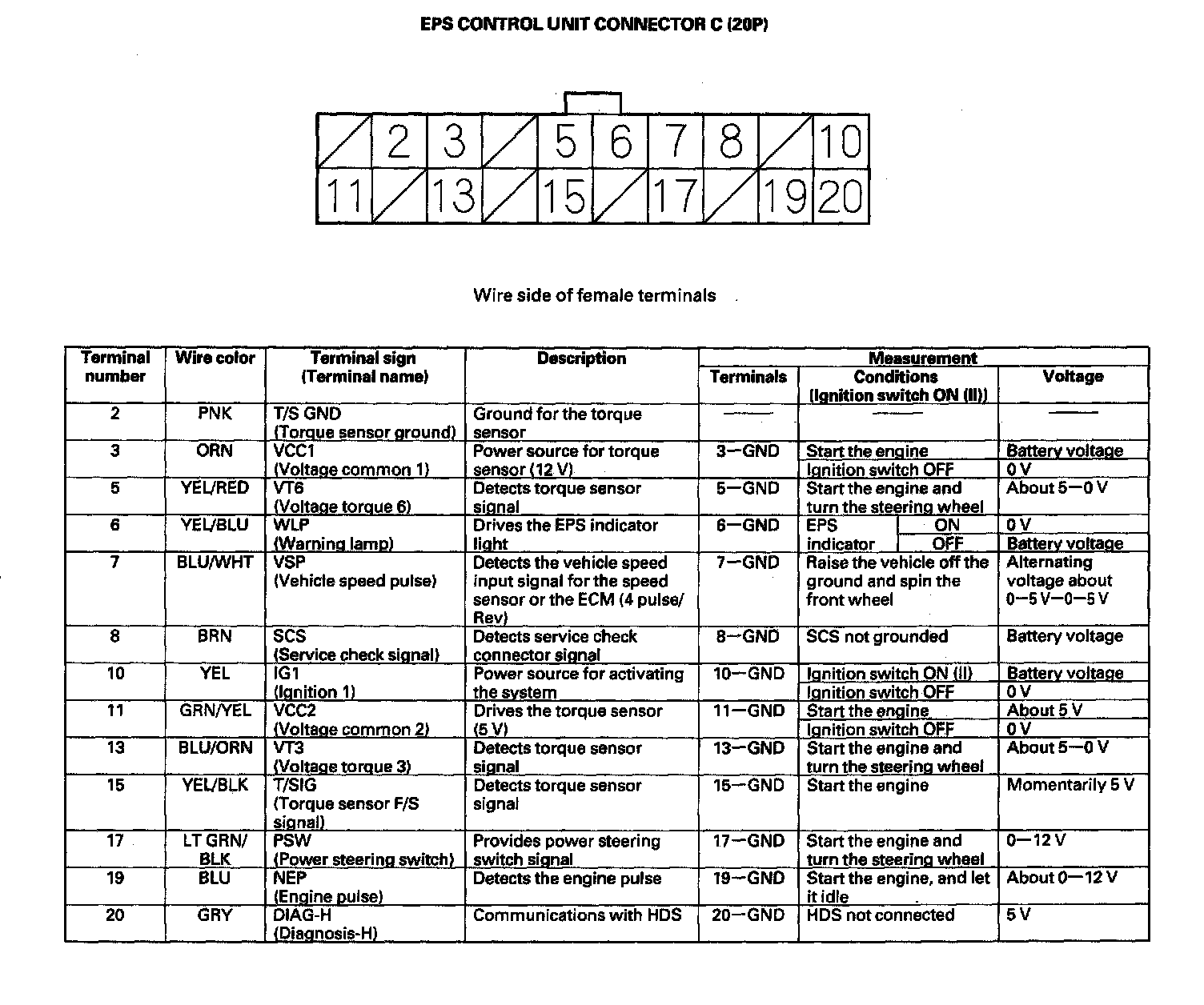

EPS Control Unit Inputs and Outputs at Connector C (20P)
