Home >> Honda >> 2005 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Clutch, M/T >> System Specifications >> Torque & Sequence

Torque & Sequence

Pressure Plate

Mounting Bolts 25 Nm (19 lbft)

Flywheel

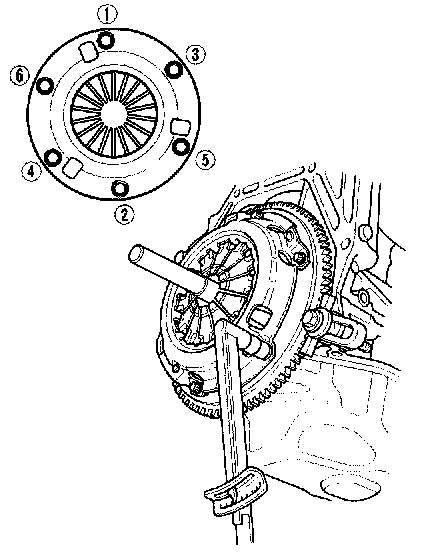

Install the special tool, then torque the flywheel mounting bolts in a crisscross pattern in several steps.
