System Specifications

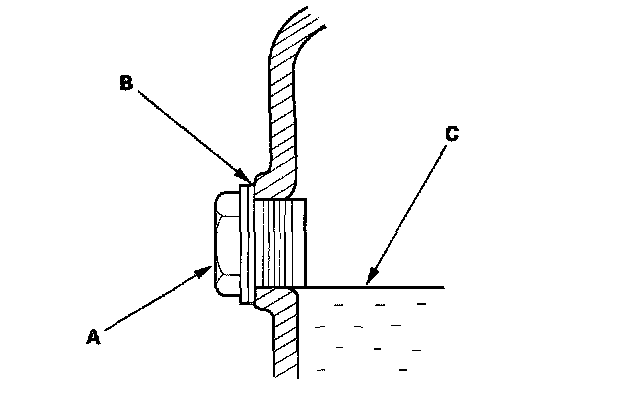

Make sure the fluid is at the proper level (C).

Oil Capacity
1.5 L (1.6 US qt.) at fluid change
1.7 L (1.8 US qt.) at overhaul

Always use Honda Manual Transmission Fluid (MTF). Using motor oil can cause stiffer shifting and noise because it does not contain the proper additives.
