Washer Fluid Level Switch: Service and Repair

Washer Fluid Level Switch Test/Replacement

Canada

1. Partially remove the right inner fender.

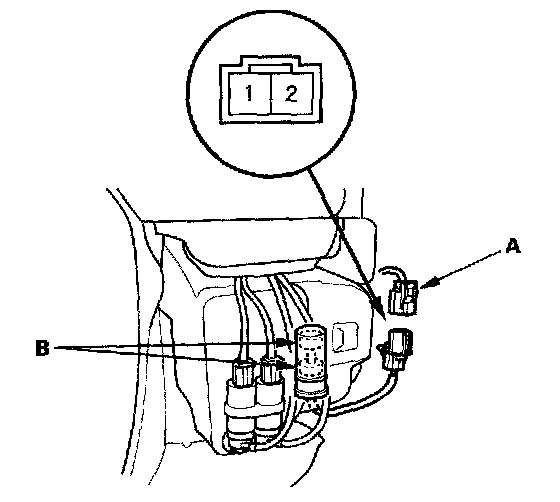

2. Disconnect the 2P connector (A) from the washer level switch.
3. Remove the washer fluid level switch from the reservoir.

NOTE: Fluid may flow out the opening.

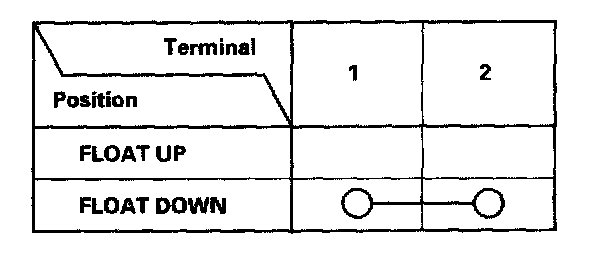

4. Check for continuity between the terminals in each float (B) position according to the table.
5. If the continuity is not as specified, replace the switch.
