Passenger's Window Switch Replacement

Passenger's Window Switch Replacement

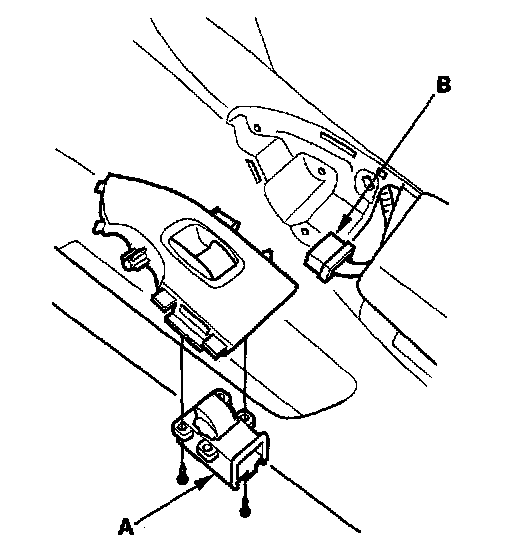

1. Remove the door grip.




2. Remove the power window switch (A) from the door panel.
3. Disconnect the 5P connector (B) from the switch,
4. Remove the two screws and the switch from the switch panel.
