Power Window Switch: Diagrams

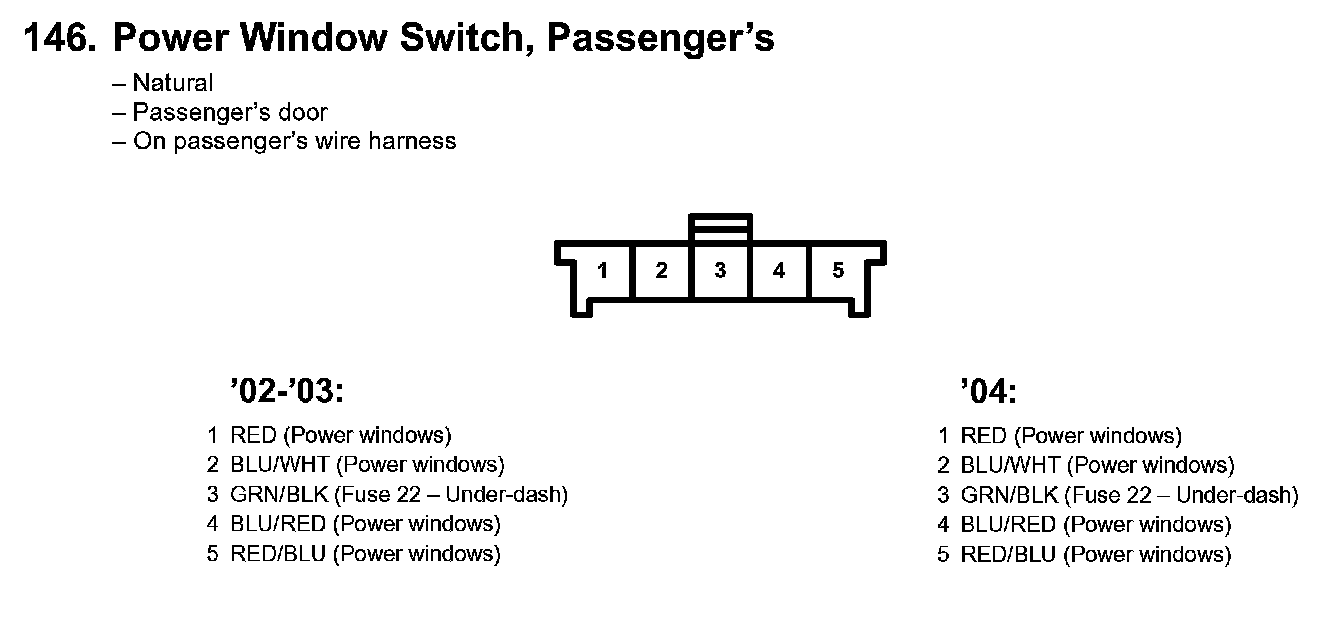

146. Power Window Switch, Passenger's:

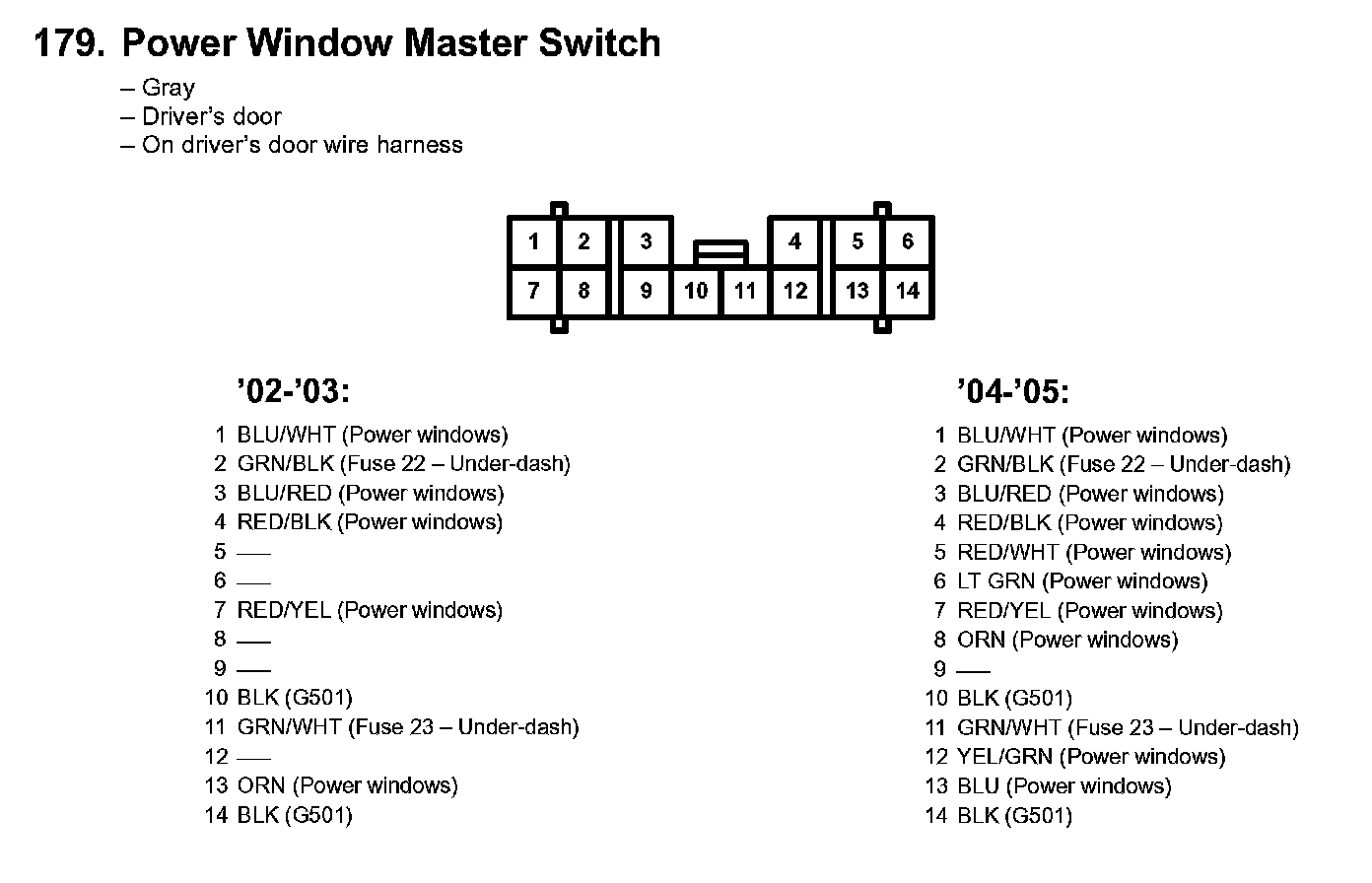

179. Power Window Master Switch:
