Impact Sensor: Locations

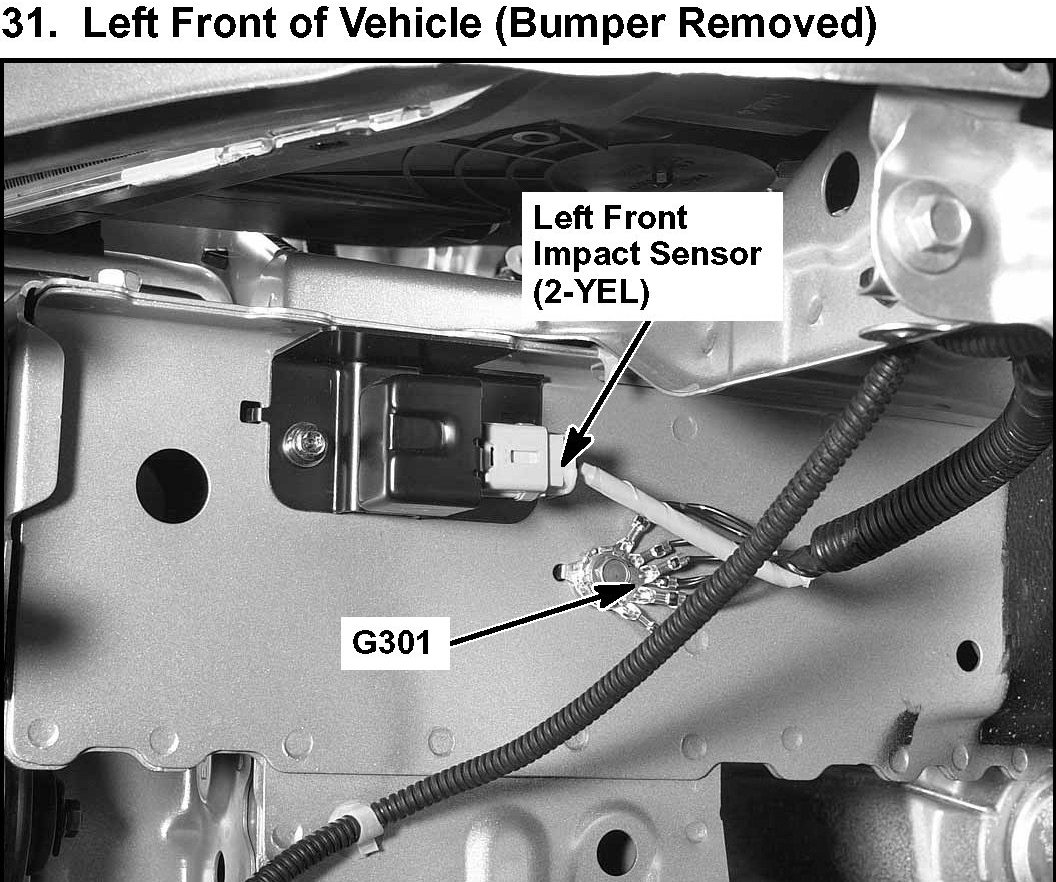

31. Left Front of Vehicle (Bumper Removed):

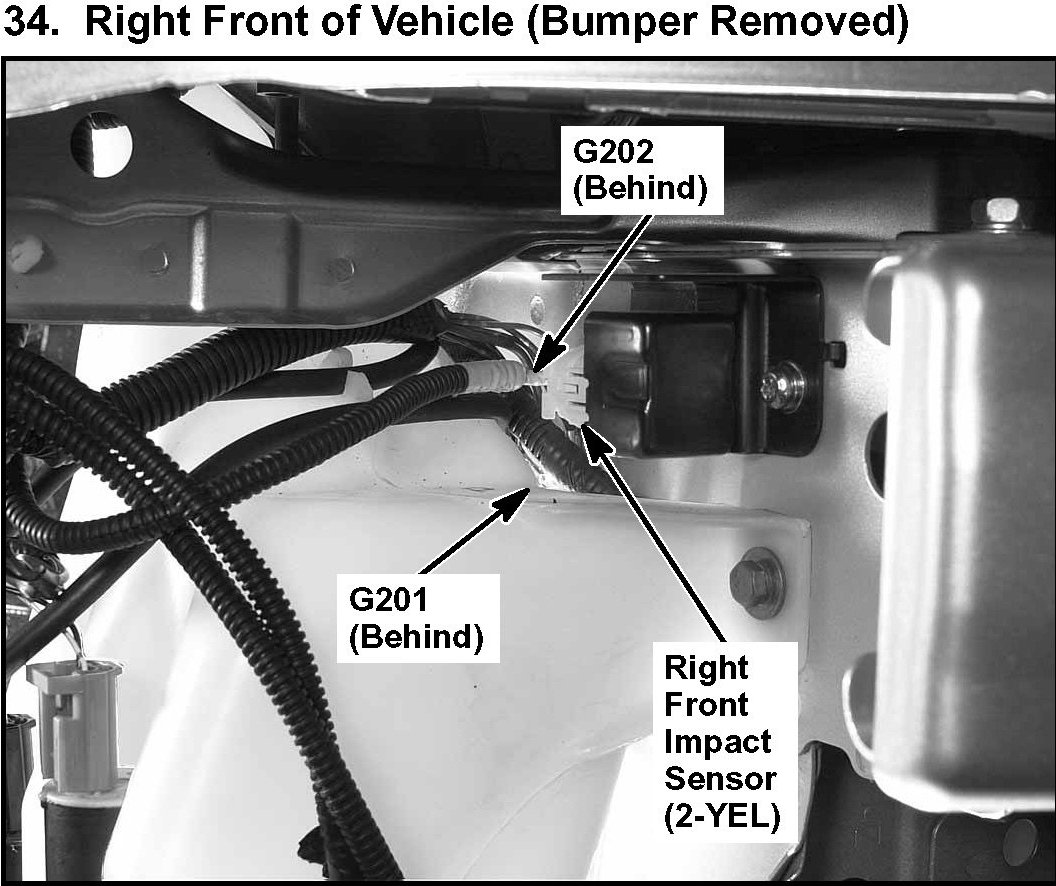

34. Right Front of Vehicle (Bumper Removed):

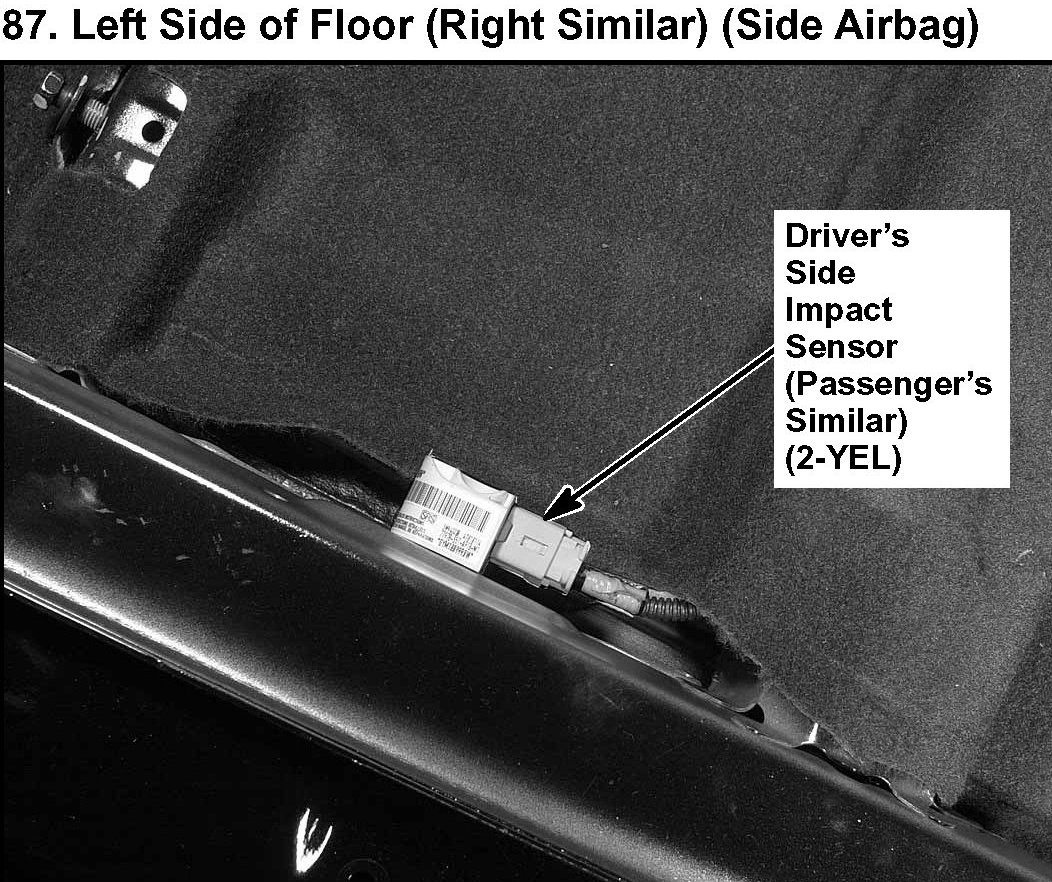

87. Left Side of Floor (Right Similar) (Side Airbag):

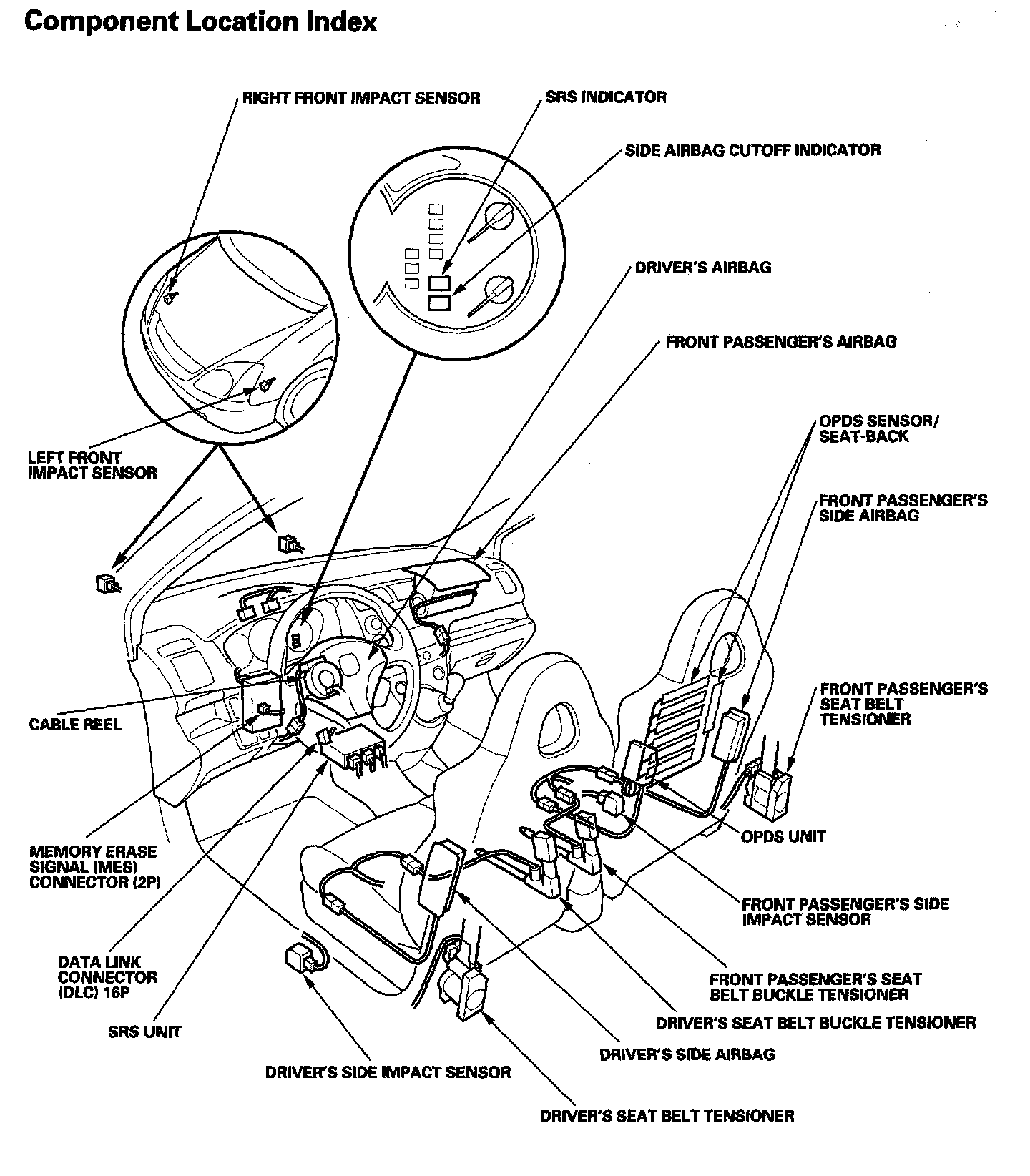

SRS - Component Location Index:
