Impact Sensor: Diagrams

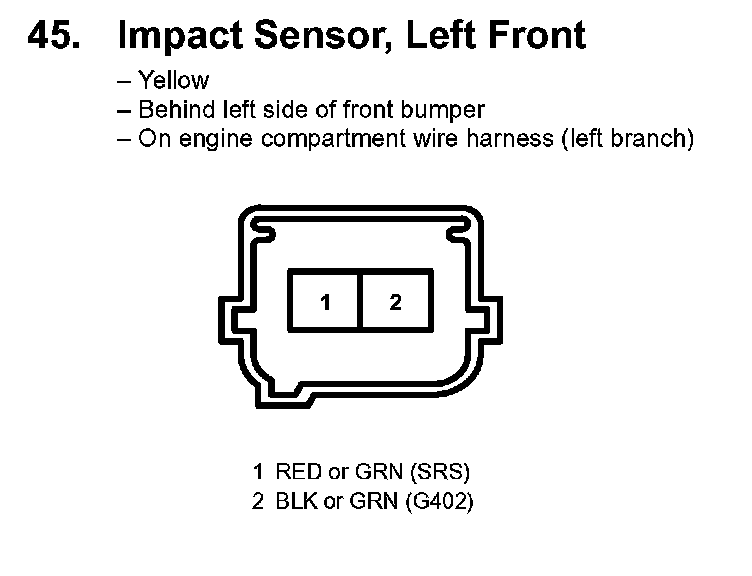

45. Impact Sensor, Left Front:

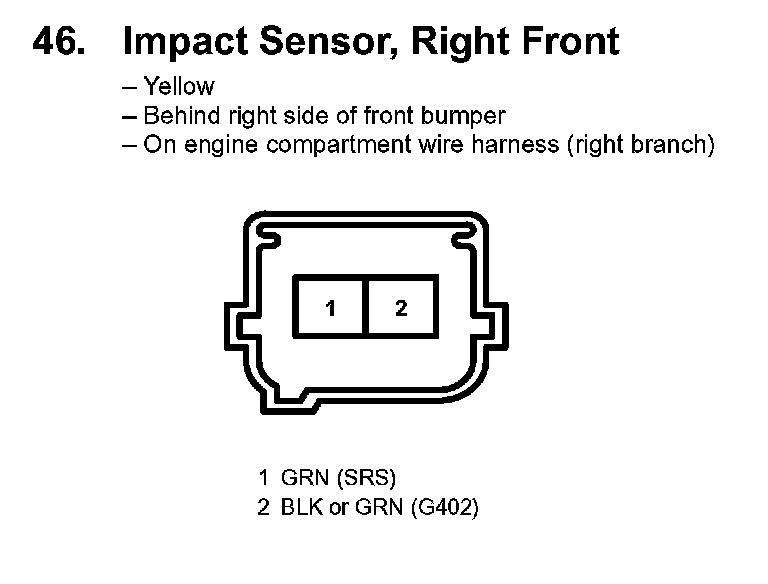

46. Impact Sensor, Right Front:

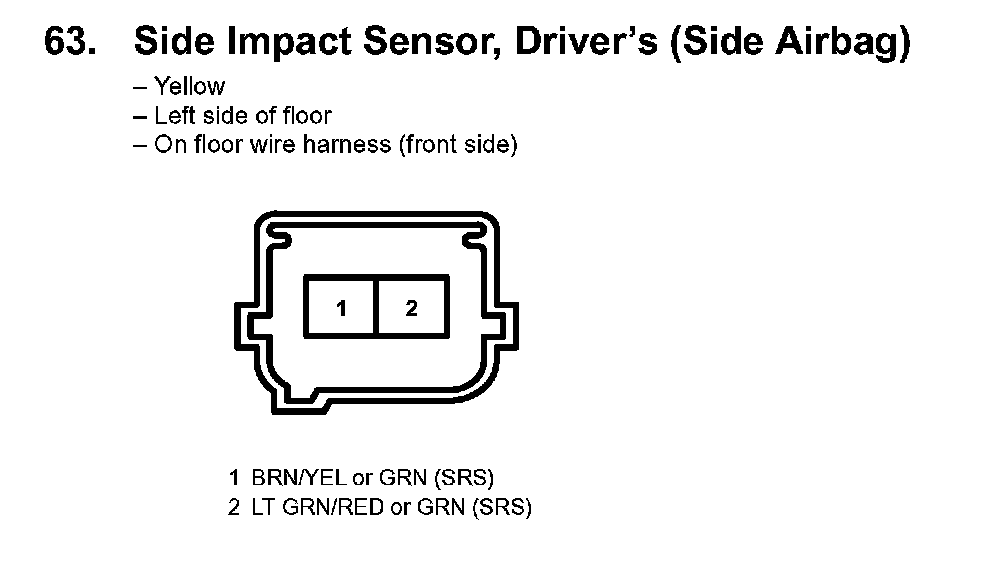

63. Side Impact Sensor, Driver's (Side Airbag):

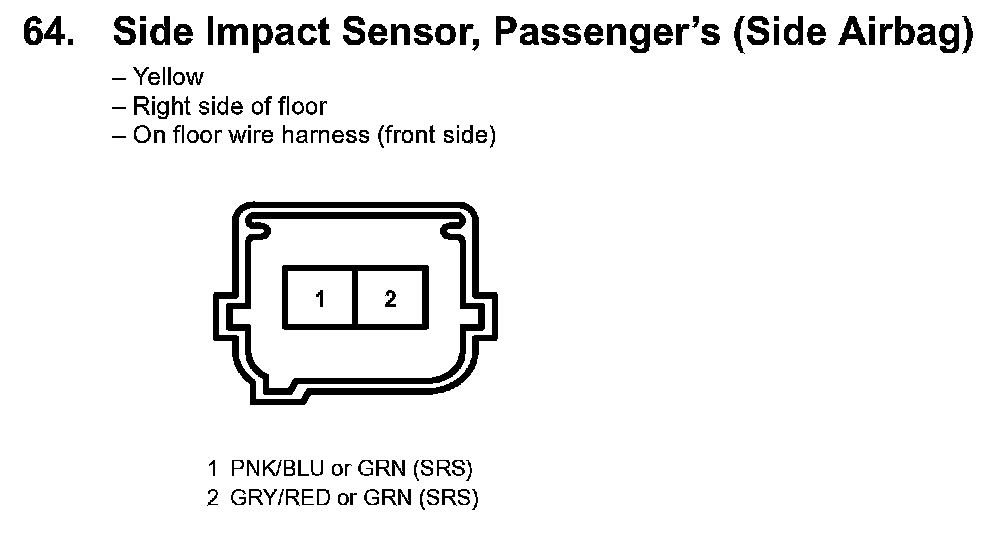

64. Side Impact Sensor, Passenger's (Side Airbag):
