Cruise Control Switch: Diagrams

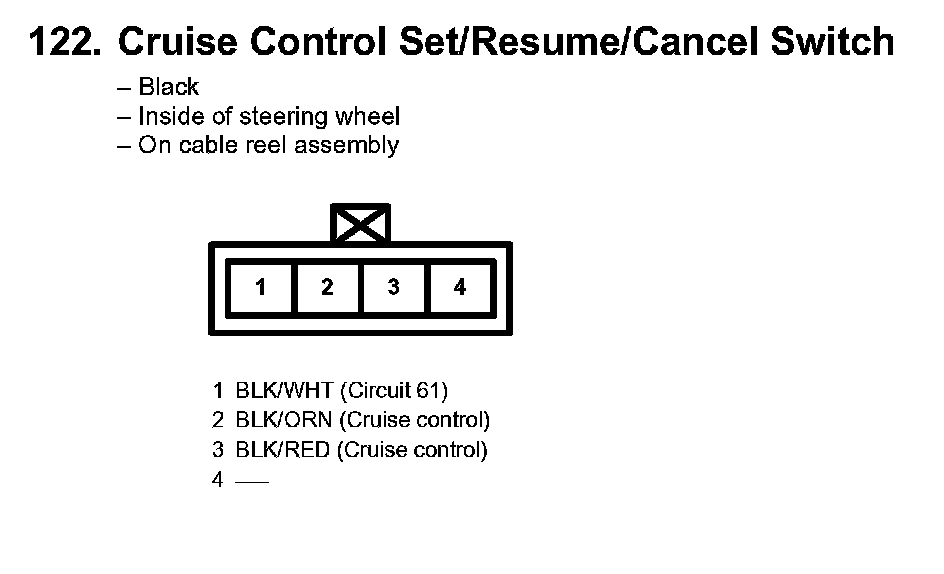

122. Cruise Control Set/Resume/Cancel Switch:

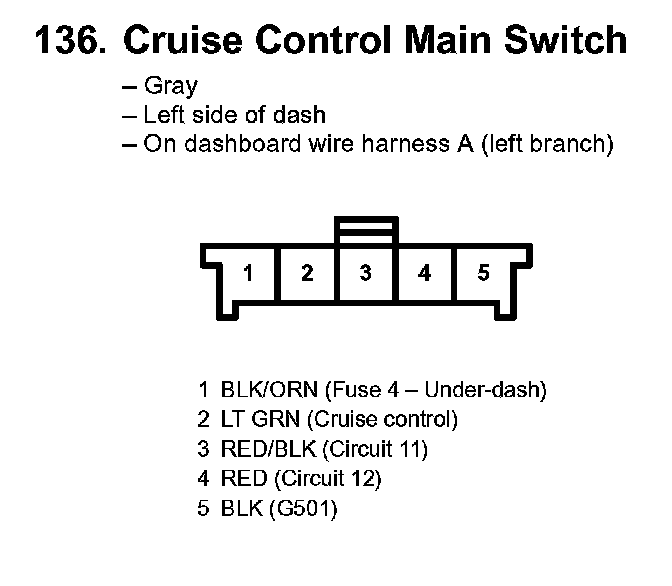

136. Cruise Control Main Switch:
