Home >> Honda >> 2005 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Braking Sensor/Switch >> Locations

Braking Sensor/Switch: Locations

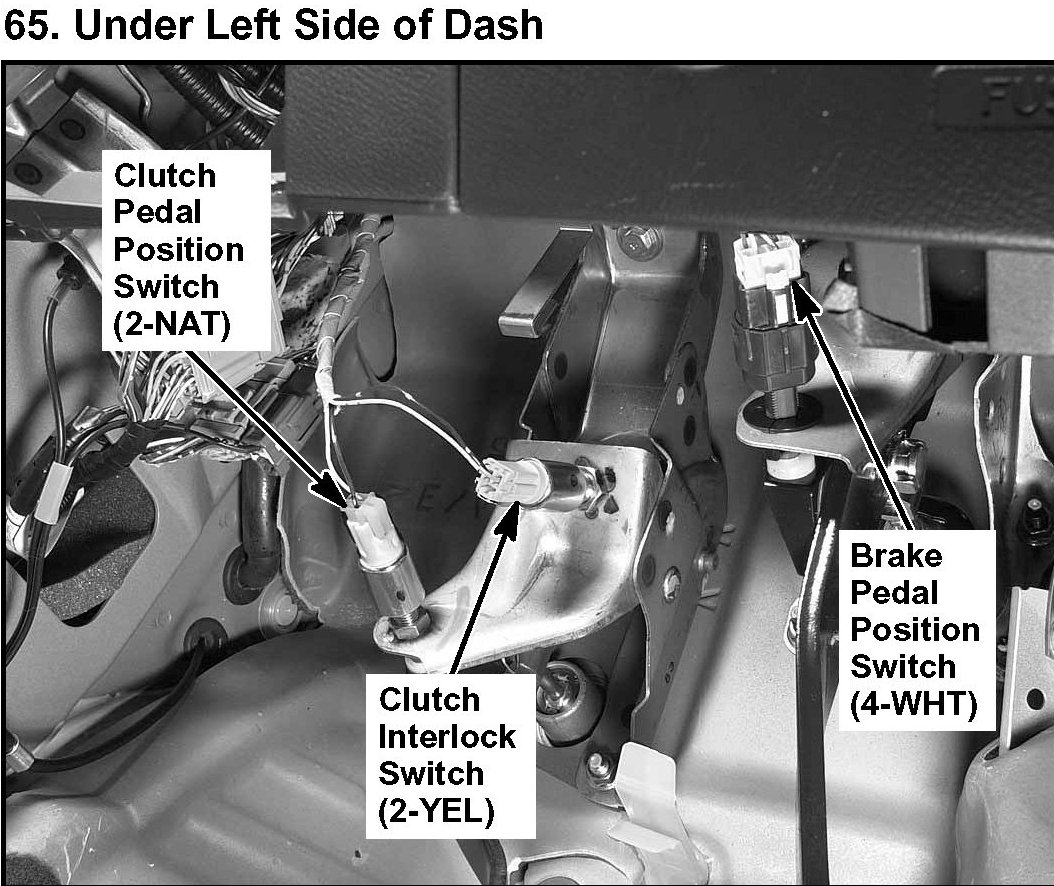

65. Under Left Side of Dash:



Cruise Control - Component Location Index:
