Sunroof / Moonroof Limit Switch: Testing and Inspection
Limit Switch Test1. Remove the headliner.

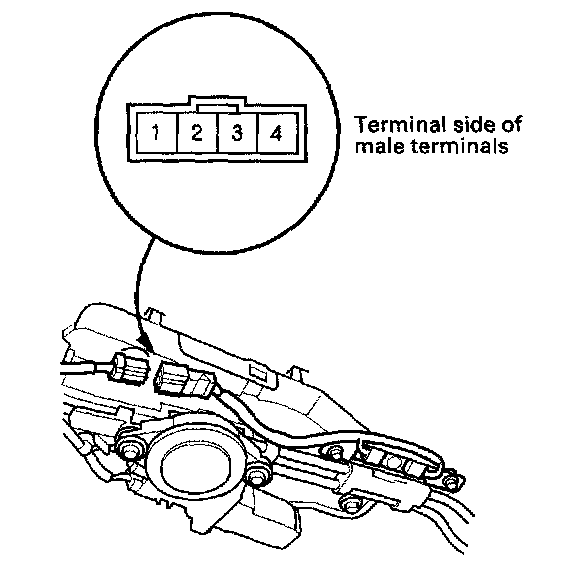

2. Disconnect the 4P connector from the moonroof limit switch.

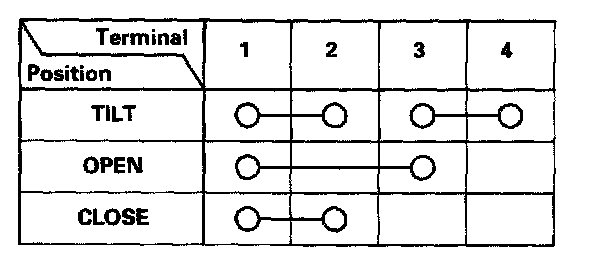

3. Check for continuity between the terminals in each switch position according to the table.
NOTE: Turn the motor by hand with the wrench.
4. If the continuity is not as specified, replace the moonroof limit switch.
