Power Door Lock Switch: Diagrams

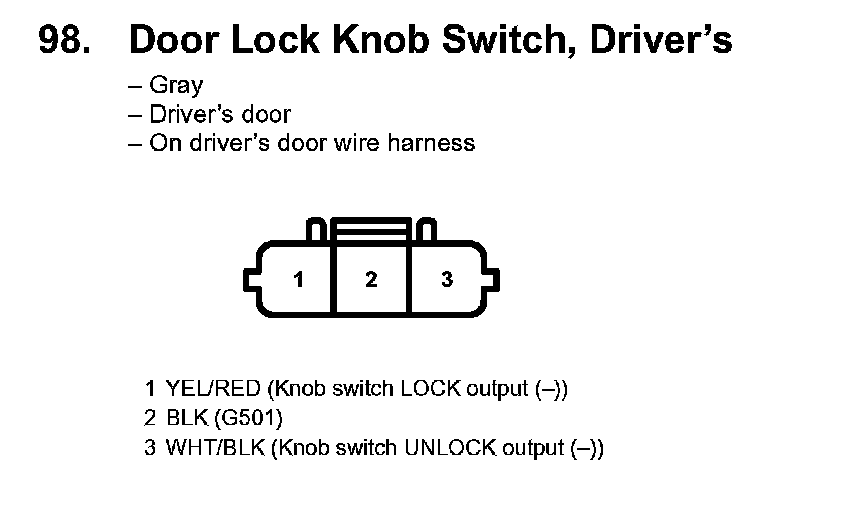

98. Door Lock Knob Switch, Driver's:

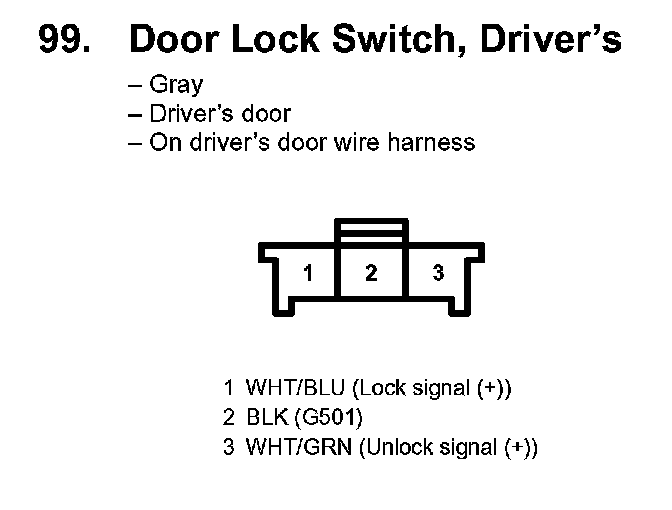

99. Door Lock Switch, Driver's:
