Home >> Honda >> 2005 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Fog/Driving Lamp Relay >> Diagrams

Fog/Driving Lamp Relay: Diagrams

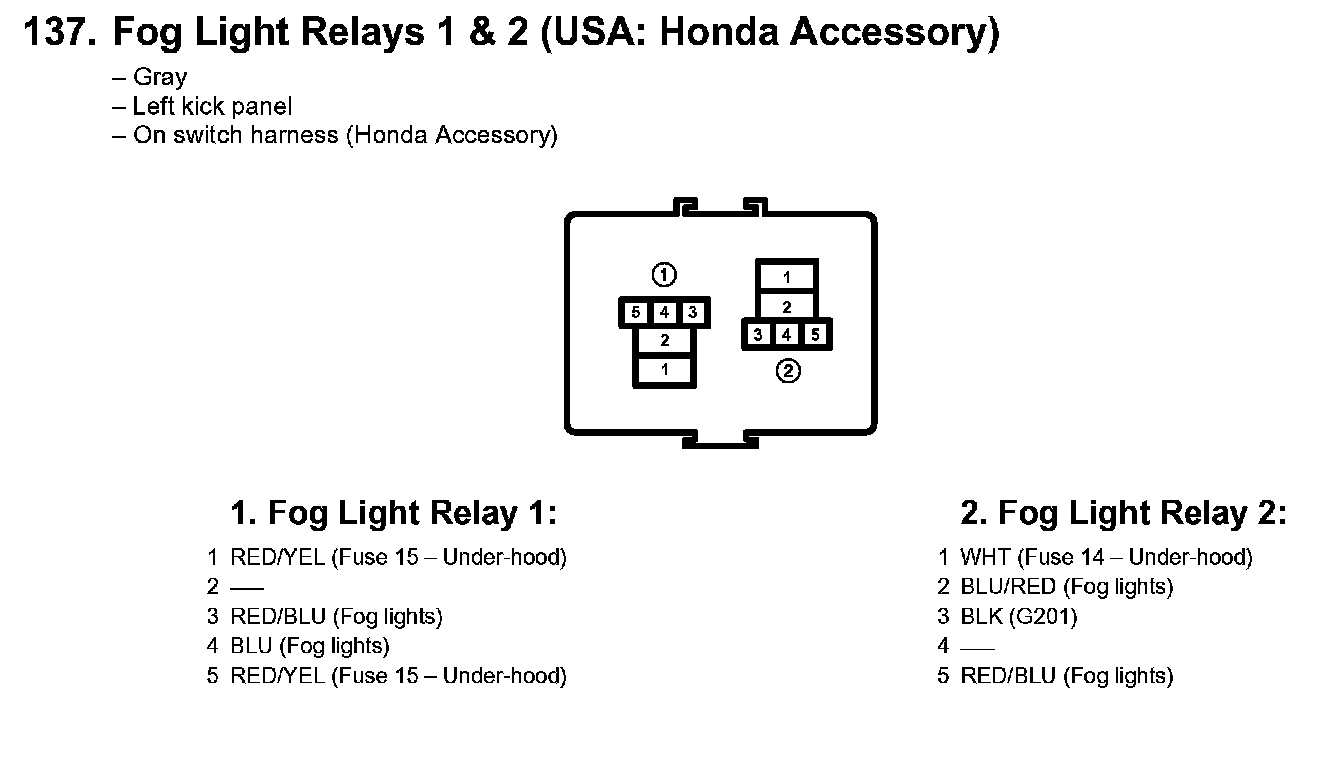

137. Fog Light Relays 1 & 2 (USA: Honda Accessory):
