Home >> Honda >> 2005 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Electronic Brake Control Module >> Testing and Inspection

Electronic Brake Control Module: Testing and Inspection

System Description

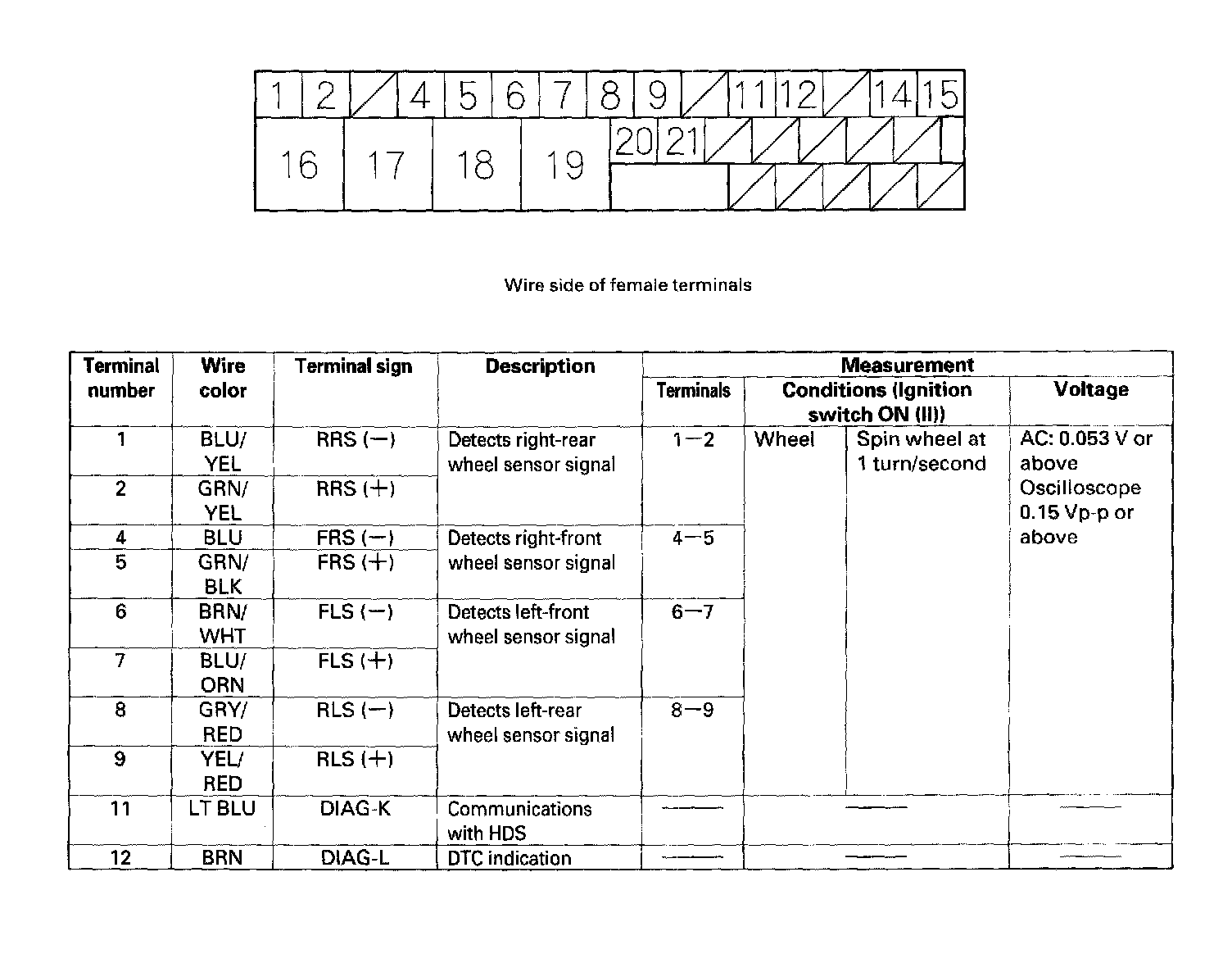

Part 1:

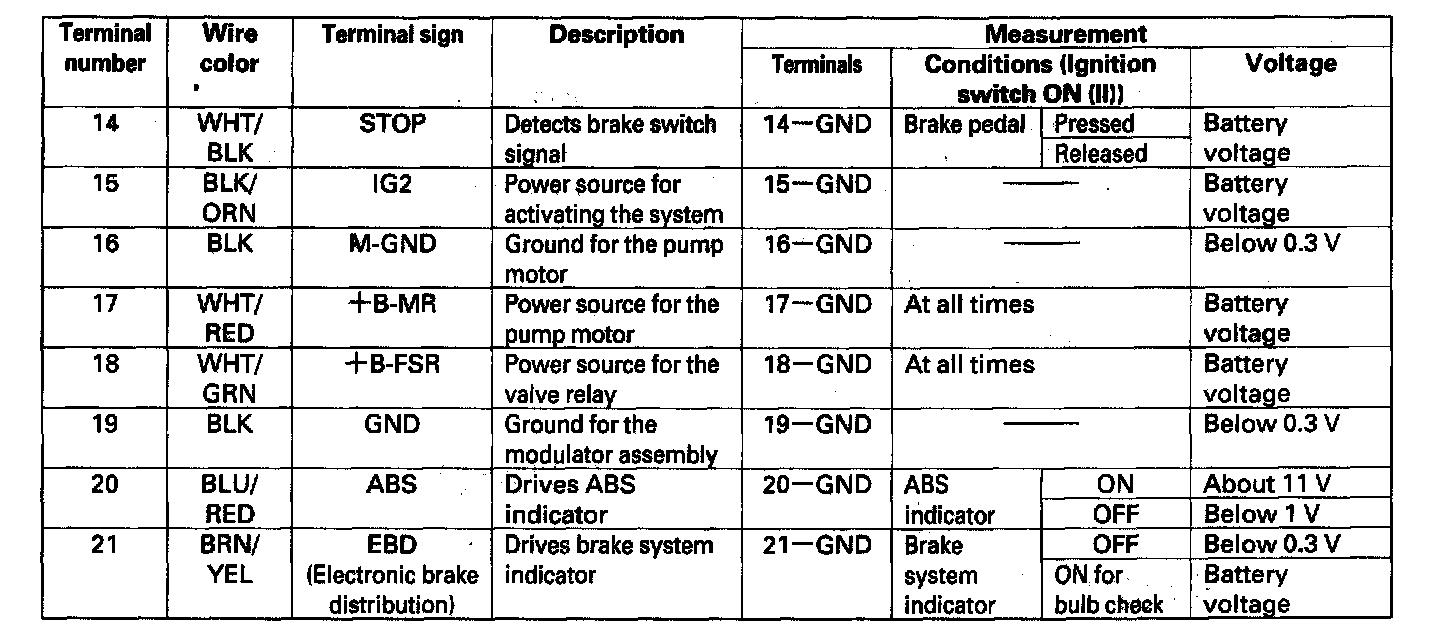

Part 2:

ABS Control Unit Inputs and Outputs for 31P Connector
