Refueling Control Valve: Service and Repair

Fuel Tank Vapor Control Valve Replacement

1. Remove the fuel tank.

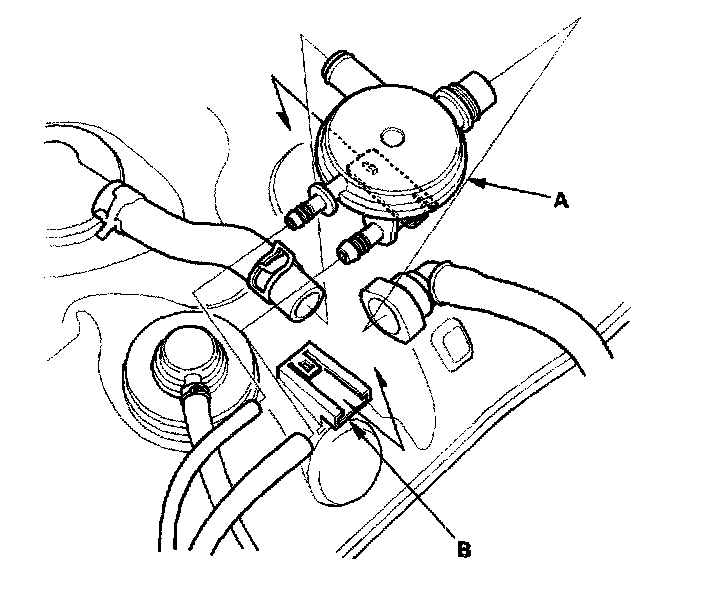

2. Remove the fuel tank vapor control valve (A) from the fuel tank (B).
3. Install the fuel tank vapor control valve.
4. Install the fuel tank.
