ECM Circuit Diagrams

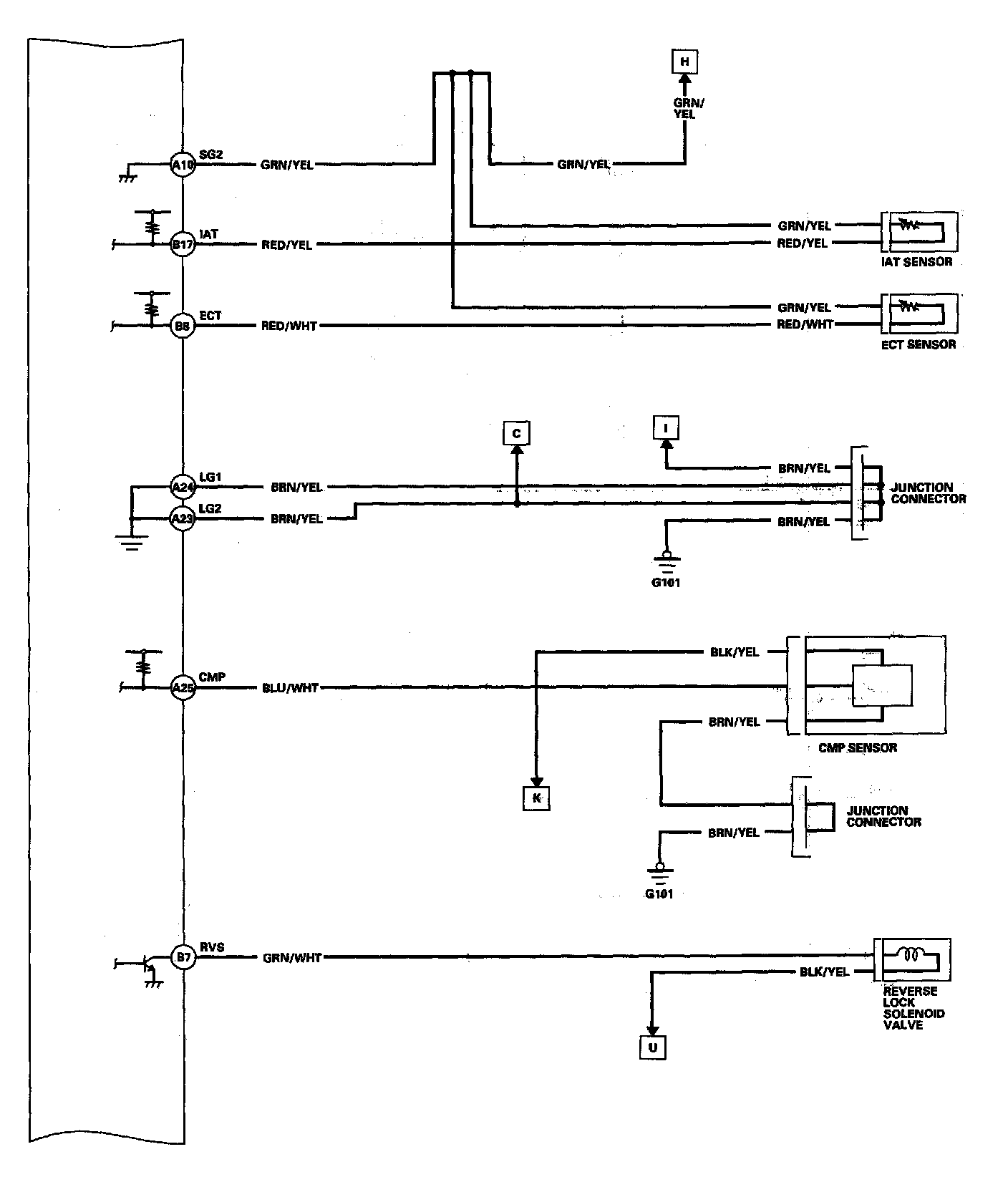

ECM Circuit Diagram 11-39:

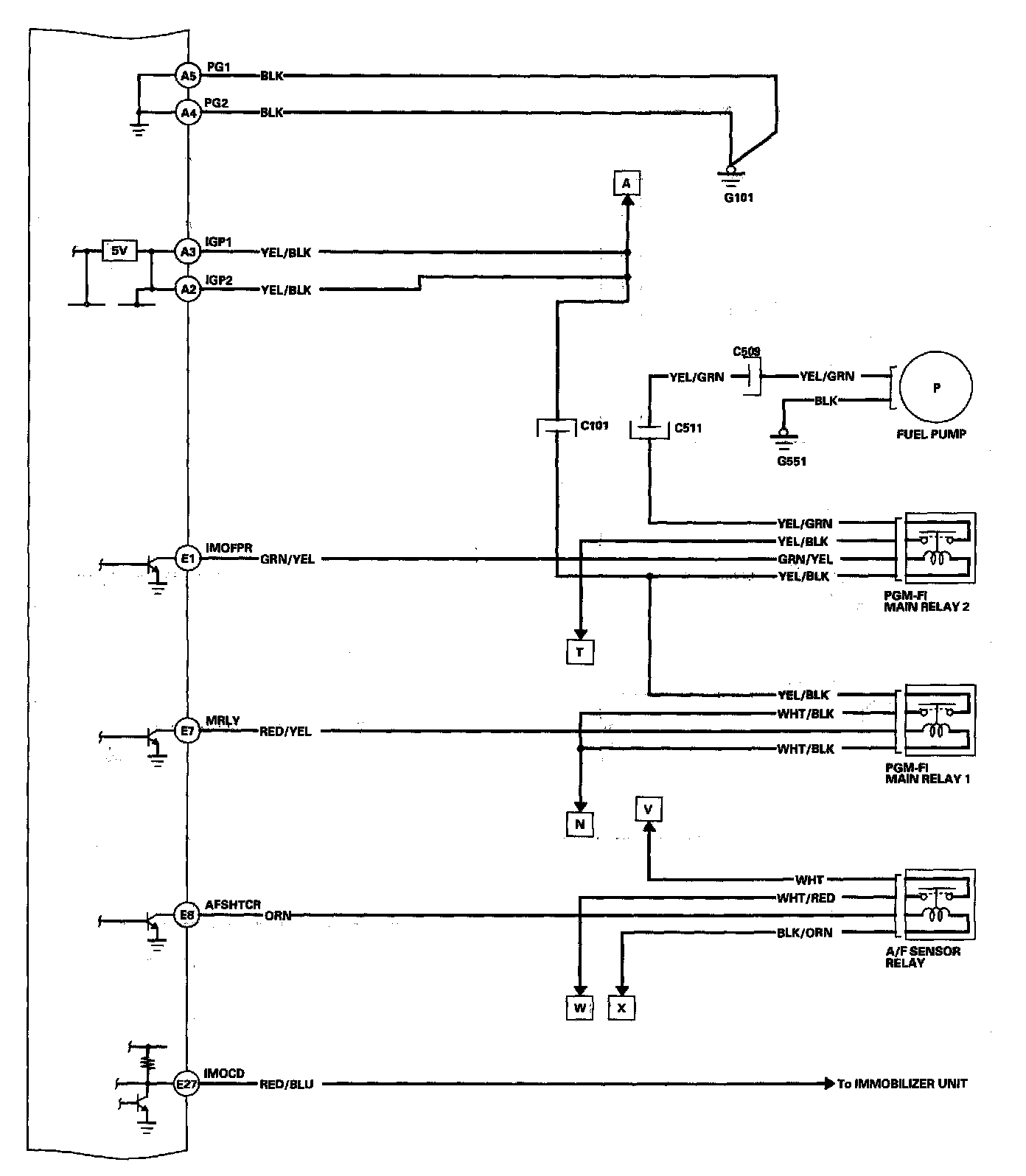

ECM Circuit Diagram 11-40:

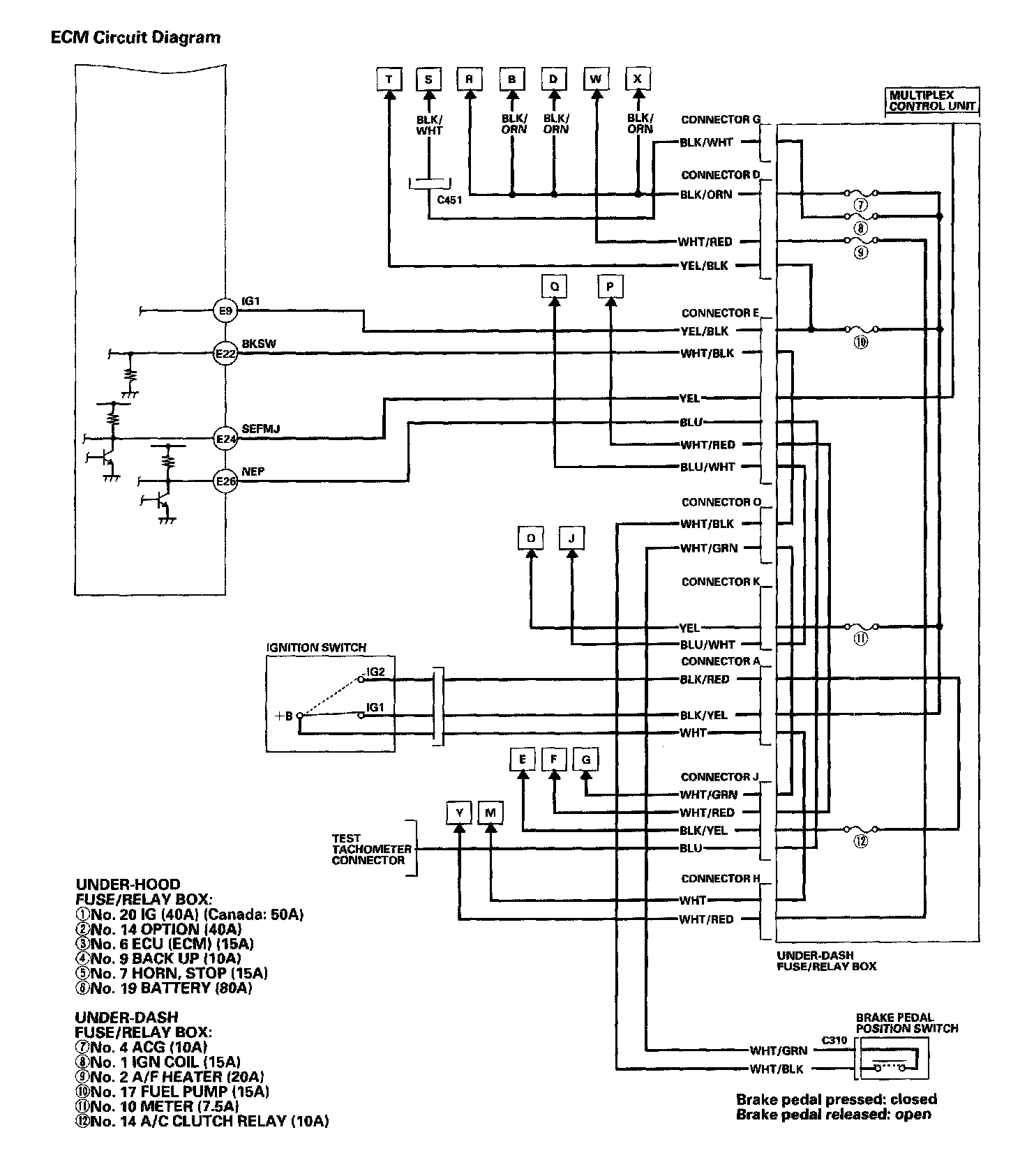

ECM Circuit Diagram 11-41:

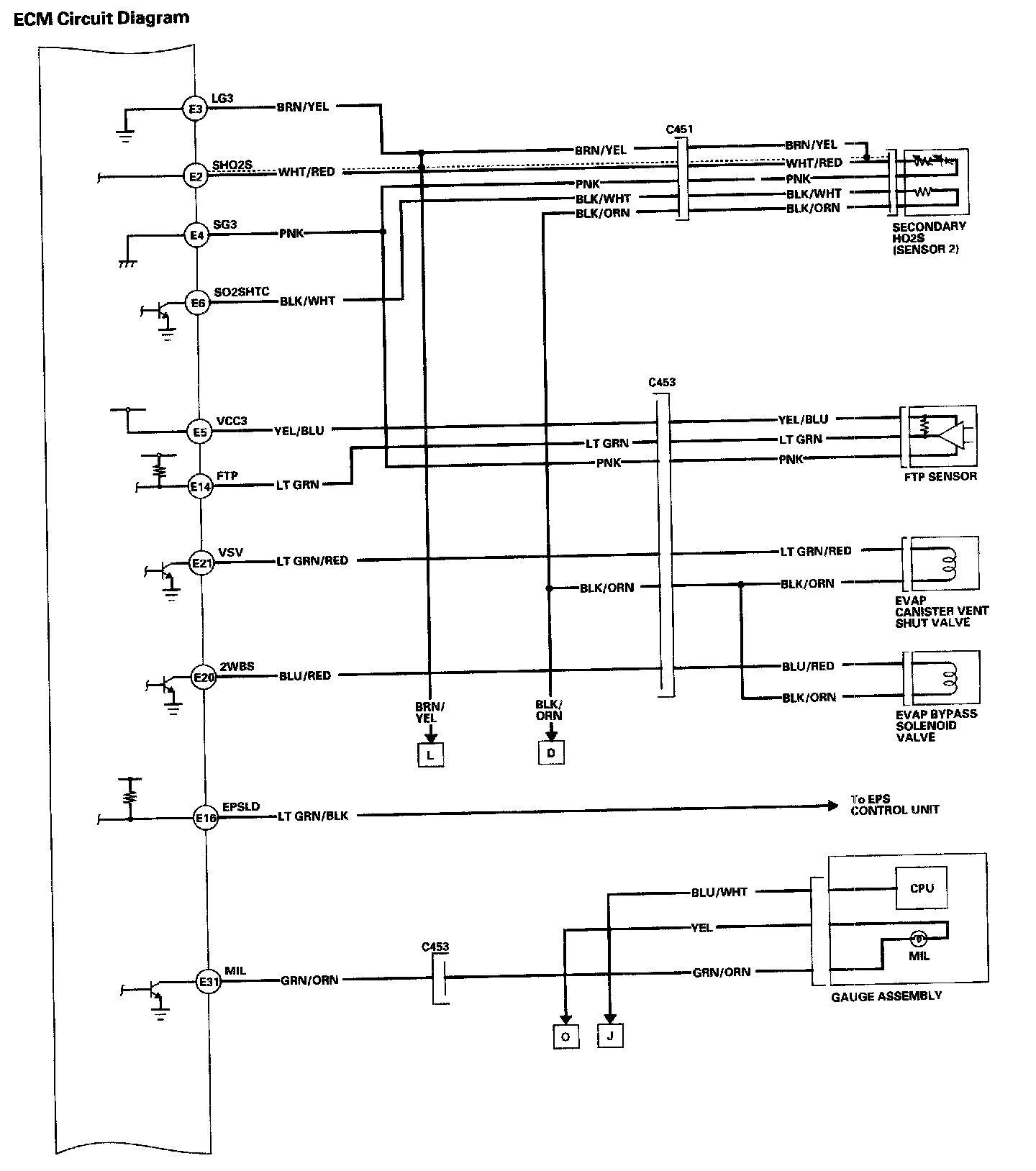

ECM Circuit Diagram 11-42:

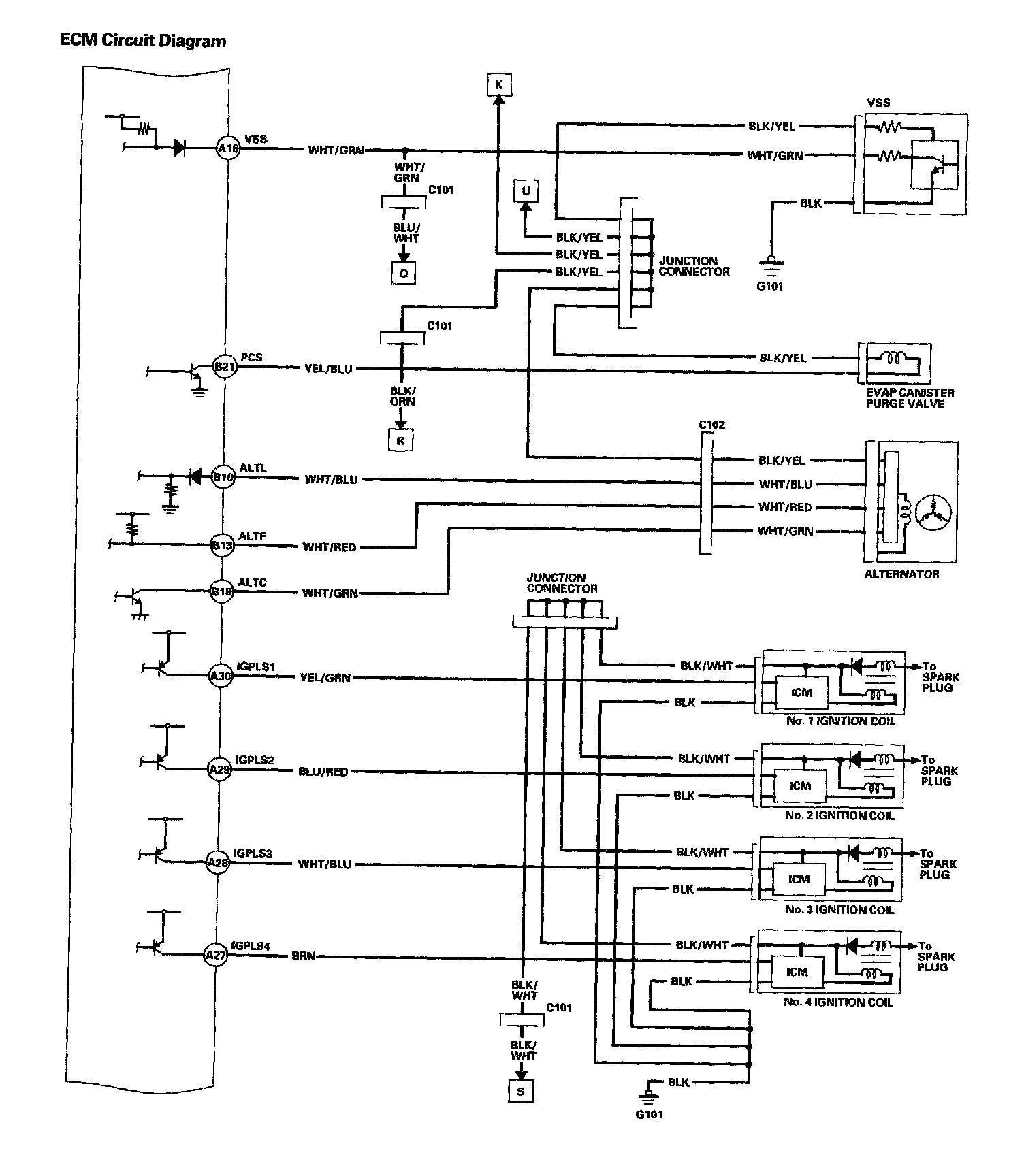

ECM Circuit Diagram 11-43:

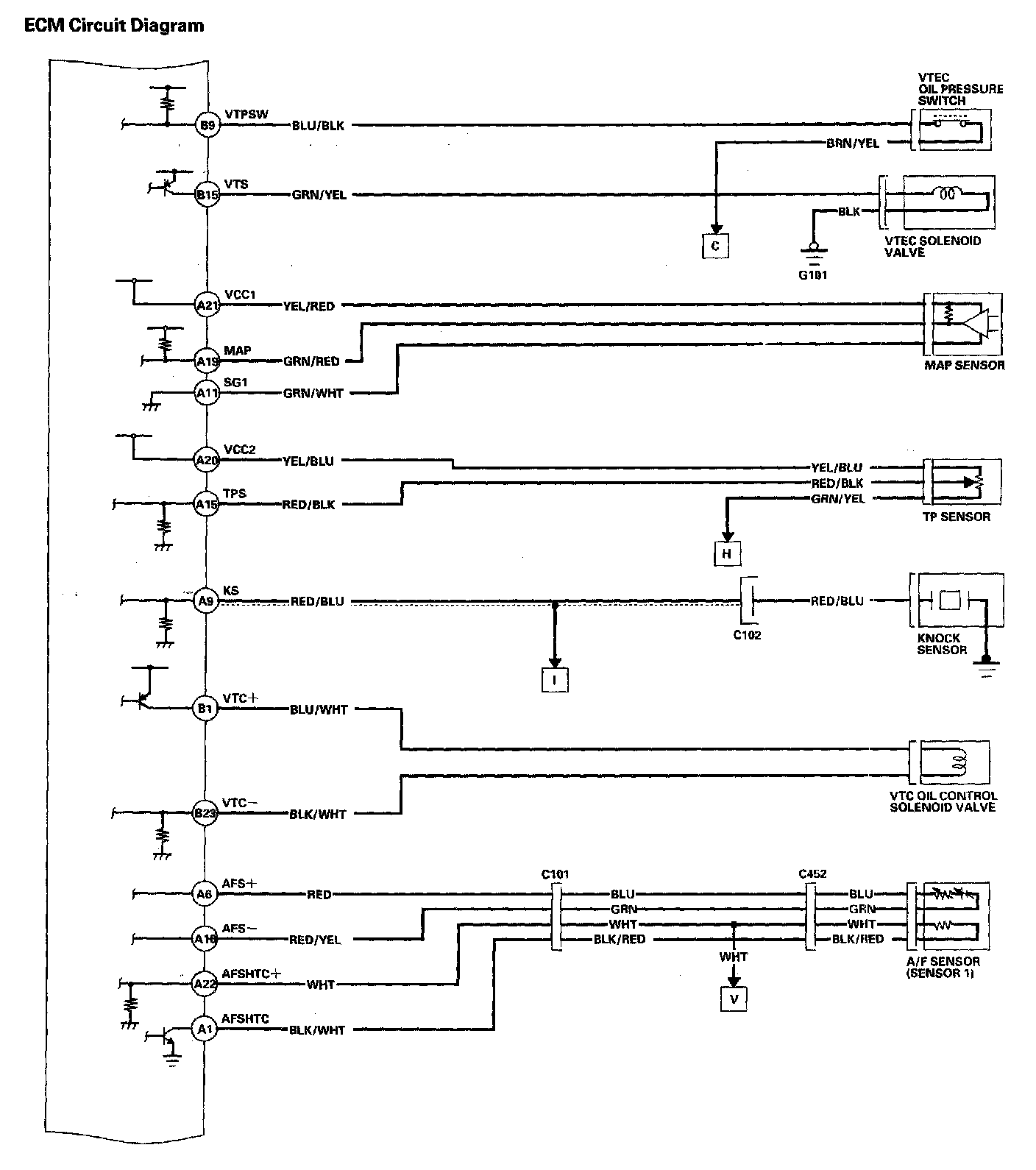

ECM Circuit Diagram 11-44:

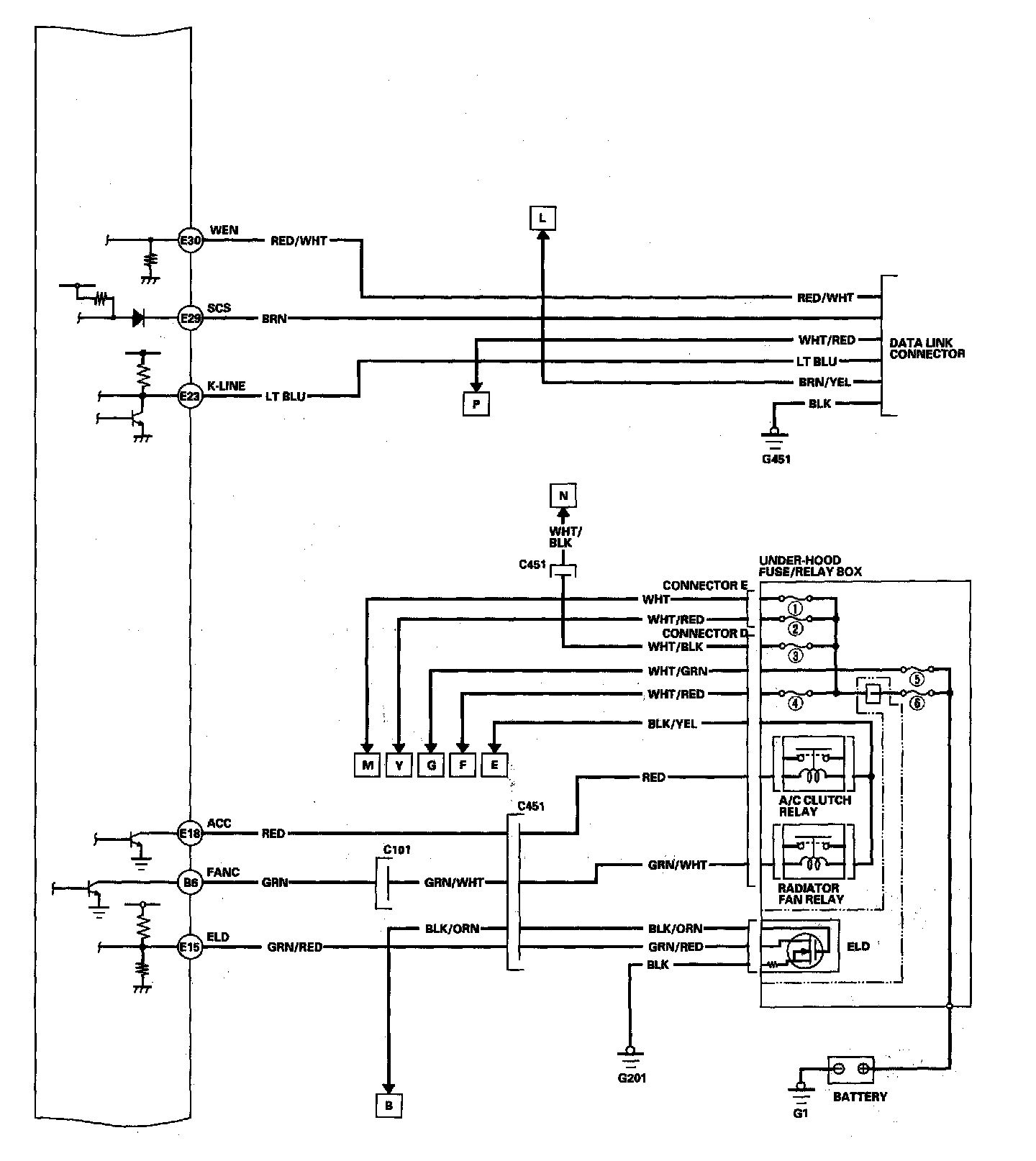

ECM Circuit Diagram 11-45:

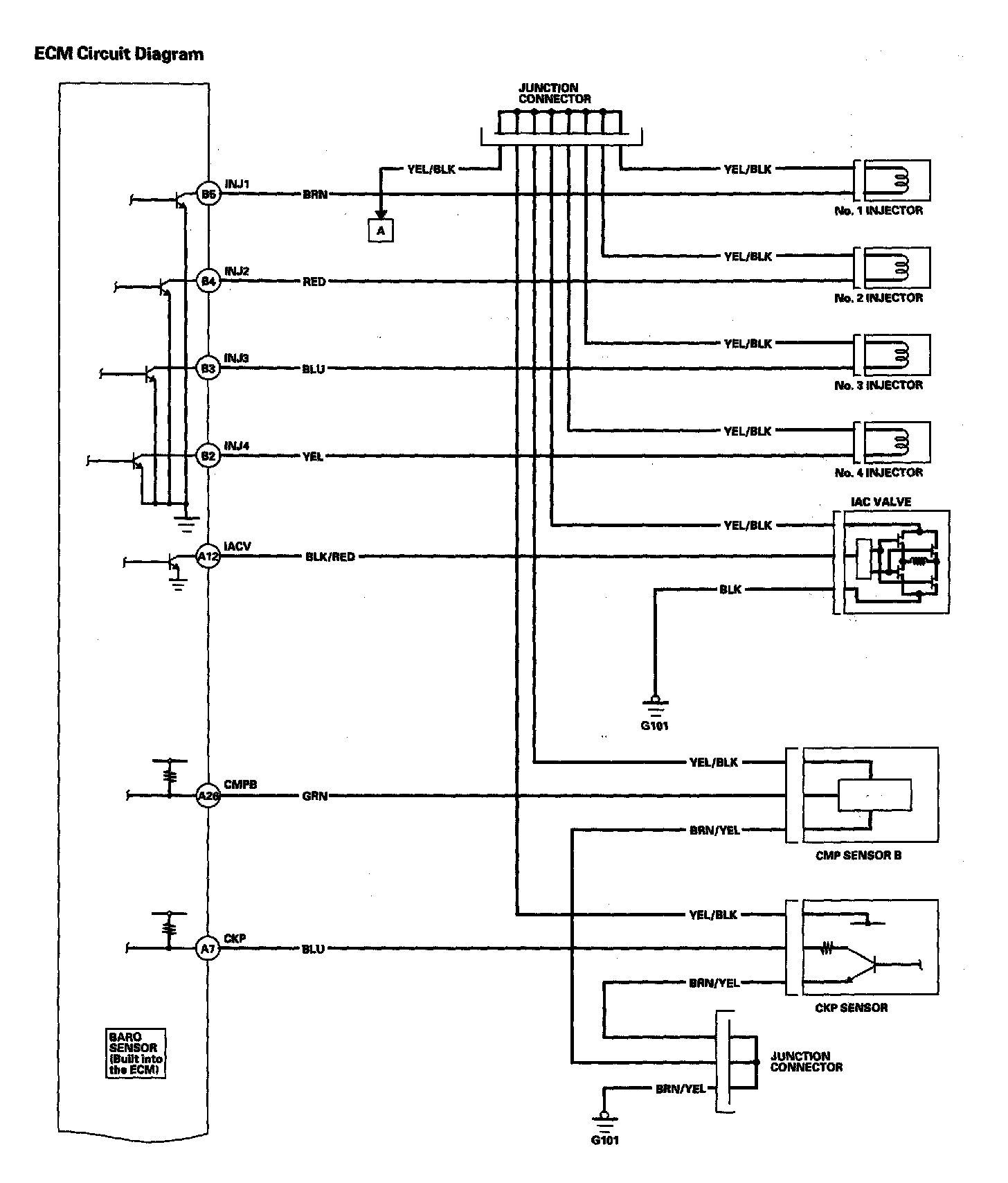

ECM Circuit Diagram 11-46:
