Oil Filter: Service and Repair

Engine Oil Filter Replacement

Special Tool Required
Oil filter wrench 07HAA-PJ70100

Engine Oil Filter (3/4-turn type)

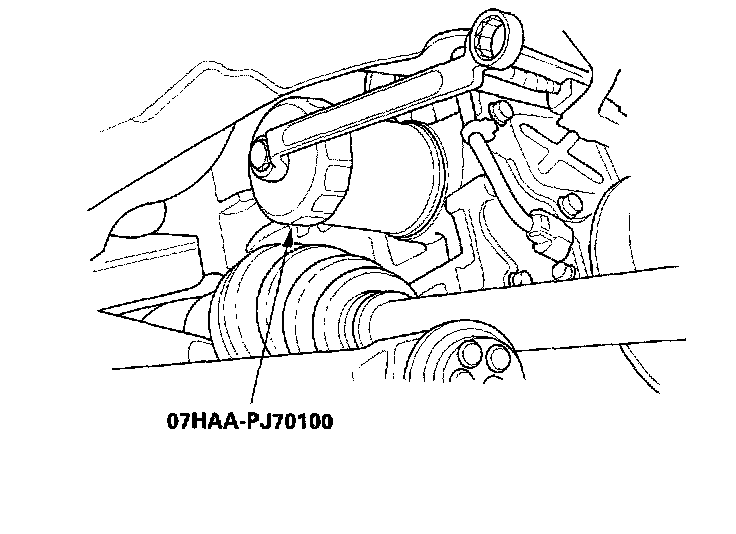

1. Remove the oil filter with the special tool.

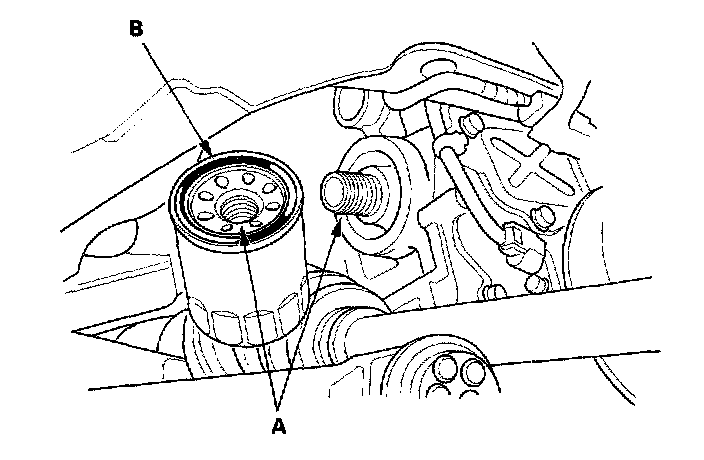

2. Inspect the threads (A) and rubber seal (B) on the new filter. Wipe off the seat on the engine block, then apply a light coat of oil to the filter rubber seal. Use only filters with a built-in bypass system.
3. Install the oil filter by hand.





4. After the rubber seal seats, tighten the oil filter clockwise with the special tool.
Tighten: 3/4 turn clockwise.
Tightening torque: 12 Nm (1.2 kgf-cm, 8.7 ft. lbs.)

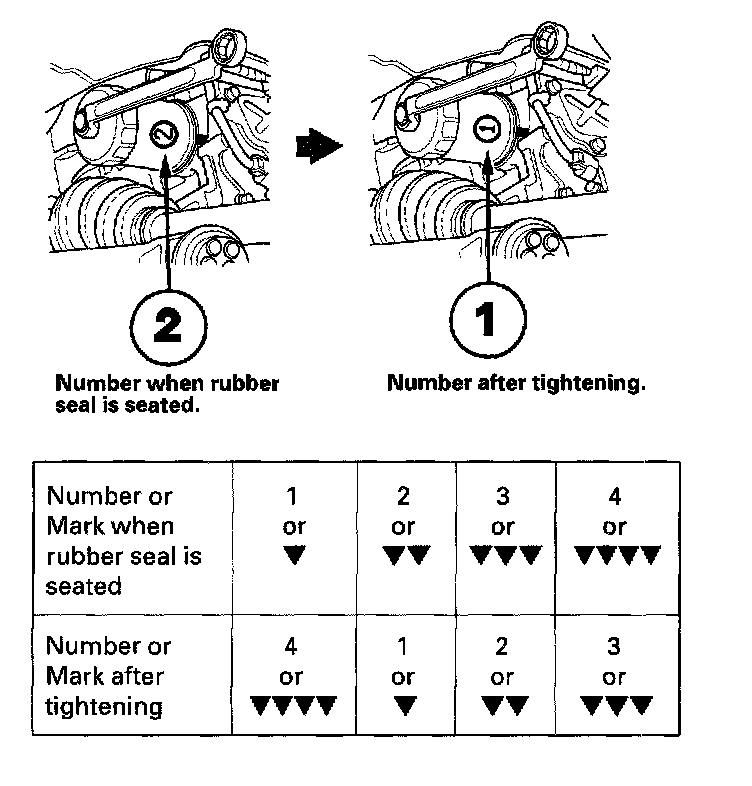

5. If 4 numbers or marks (1 to 4 or V to VVVV) are printed around the outside of the filter, use the following procedure to tighten the filter.
^ Spin the filter on until its seal lightly seats against the block, and note which number or mark is at the bottom.
^ Tighten the filter by turning it clockwise 3 numbers or marks from the one you noted. For example, if number 2 is at the bottom when the seal is seated, tighten the filter until the number 1 comes around the bottom.
6. After installation, fill the engine with oil up to the specified level, run the engine for more than 3 minutes, then check for oil leakage.

Oil Filter Feed Pipe Replacement
1. Remove the oil filter.

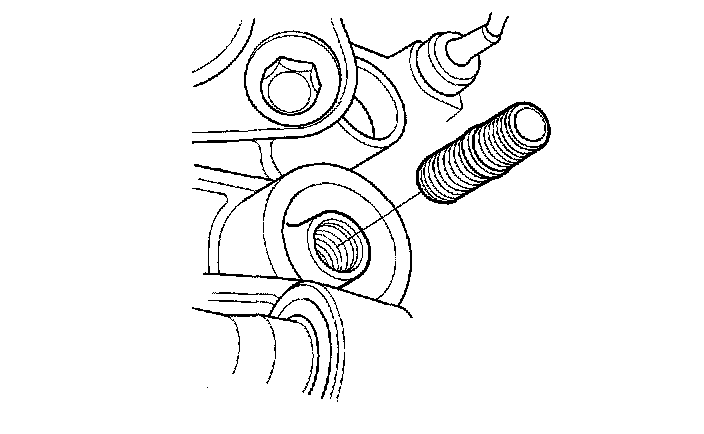

2. Remove the oil filter feed pipe.

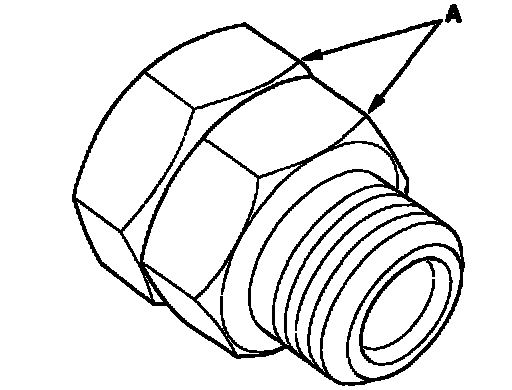

3. Install the two 20 x 1.5 mm nuts (A) onto the new oil filter feed pipe. Hold the nut with a wrench, then tighten the other nut.
4. Tighten the oil filter feed pipe to the block to 49 Nm (5.0 kgf-cm, 36 ft. lbs.), then remove the nuts from the oil filter feed pipe.
