Turn Signal Bulb: Service and Repair

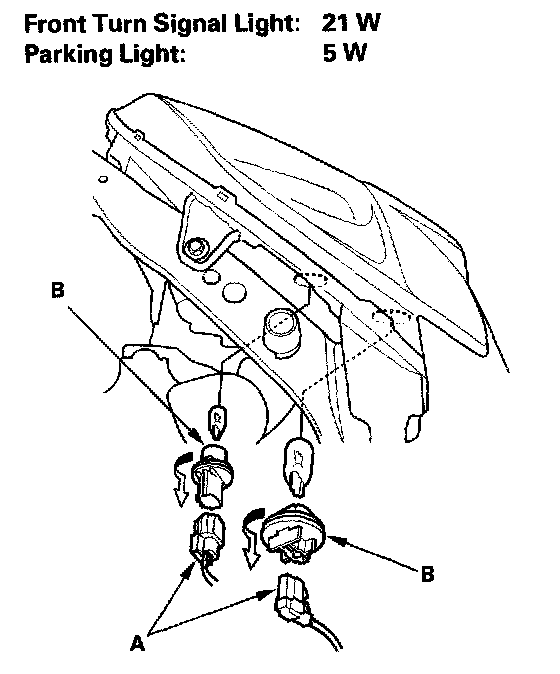

Front Turn Signal Light, Parking Light

1. Remove the inner fender.




2. Disconnect the connectors (A) from the lights.
3. Turn the bulb sockets (B) 45° counterclockwise to remove them from the headlight housing.
4. Install the new bulb(s) in the reverse order of removal.
