Home >> Honda >> 2005 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Lighting and Horns >> Relays and Modules - Lighting and Horns >> Daytime Running Lamp Relay >> Diagrams

Daytime Running Lamp Relay: Diagrams

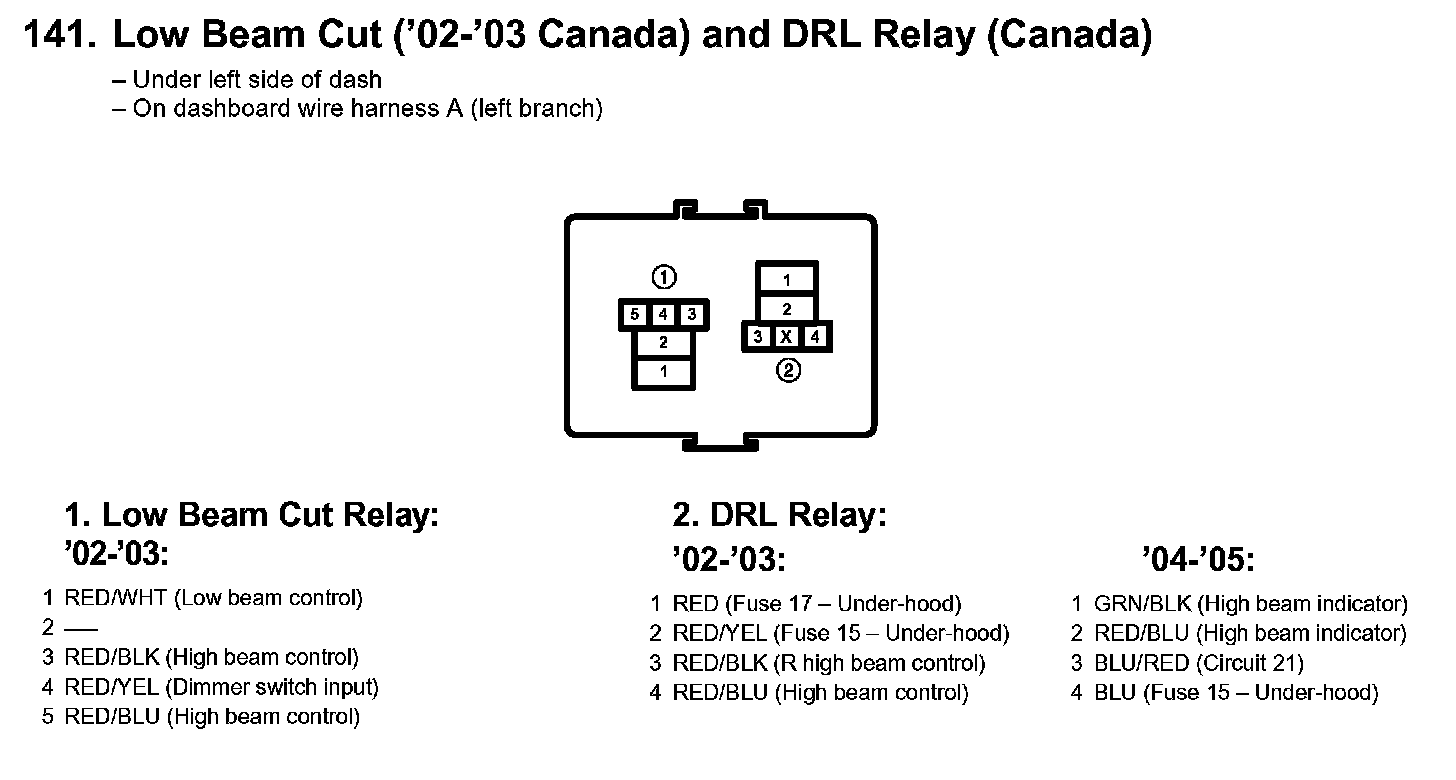

141. Low Beam Cut ('02-'03 Canada) And DRL Relay (Canada):
