Connector Views

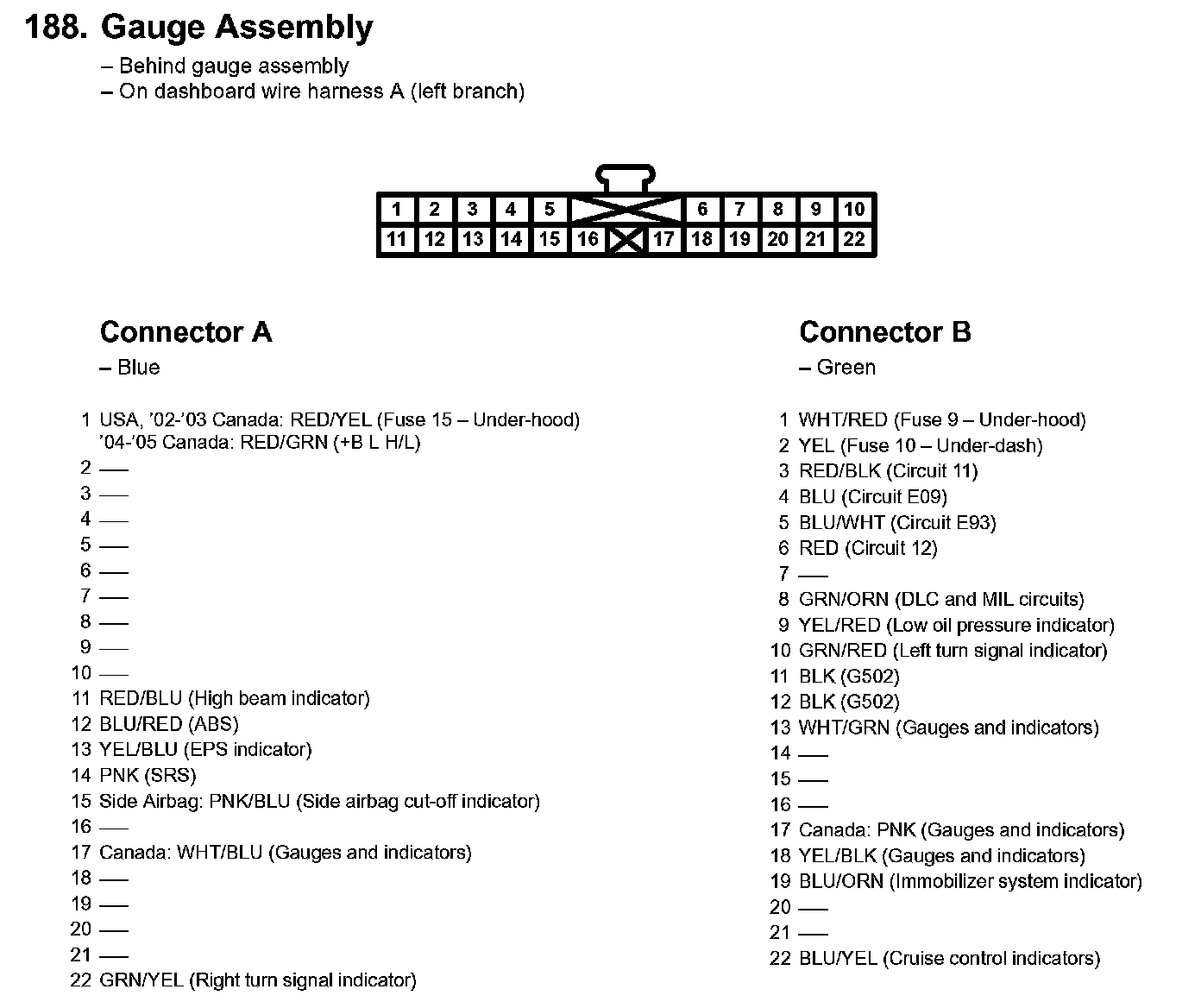

188. Gauge Assembly:

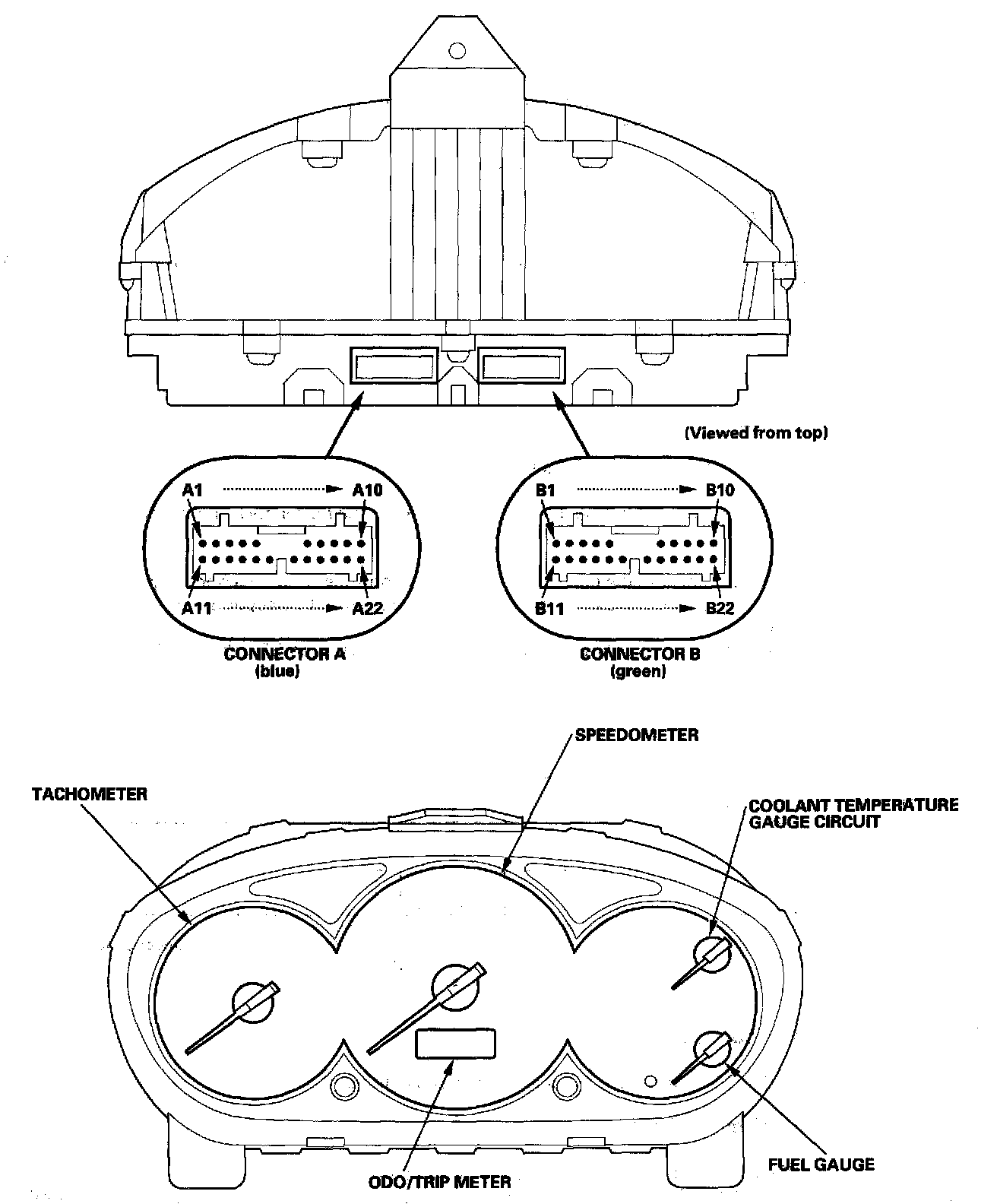

Gauges - Component Location Index:



Gauges - Component Location Index:
