Home >> Honda >> 2005 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Sensors and Switches - HVAC >> Evaporator Temperature Sensor / Switch >> Locations

Evaporator Temperature Sensor / Switch: Locations

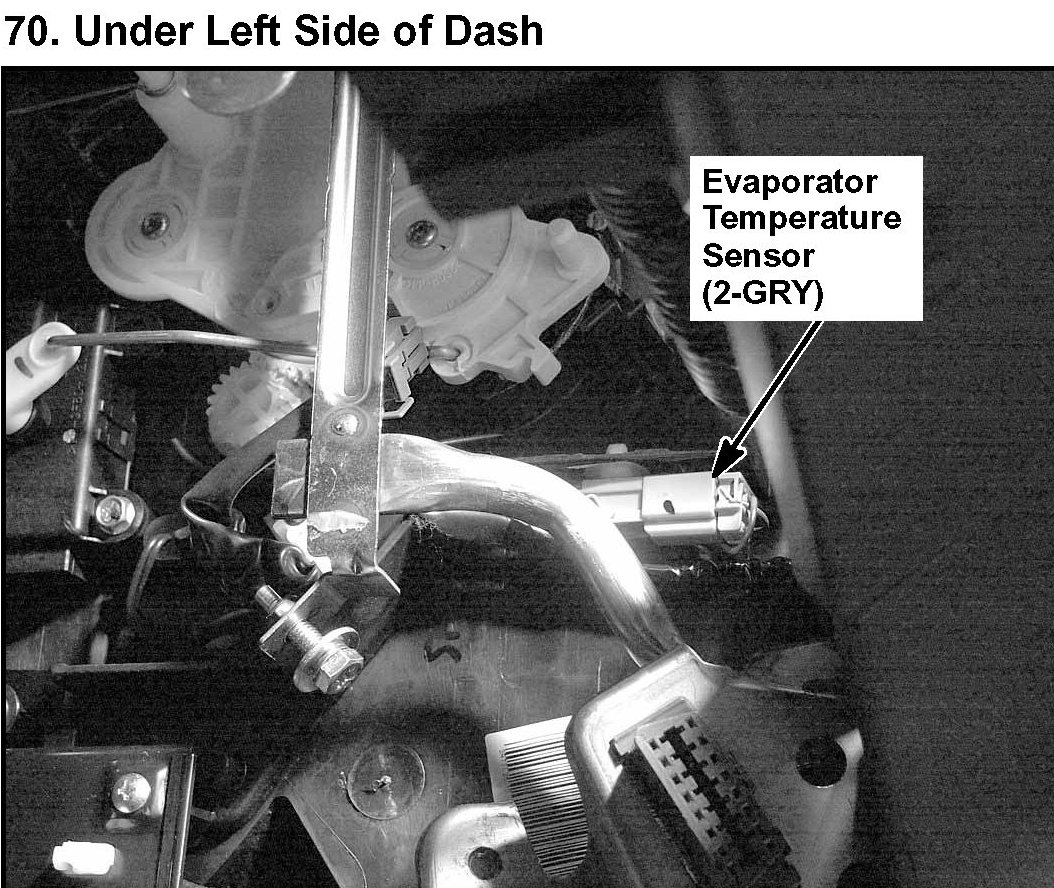

70. Under Left Side of Dash:

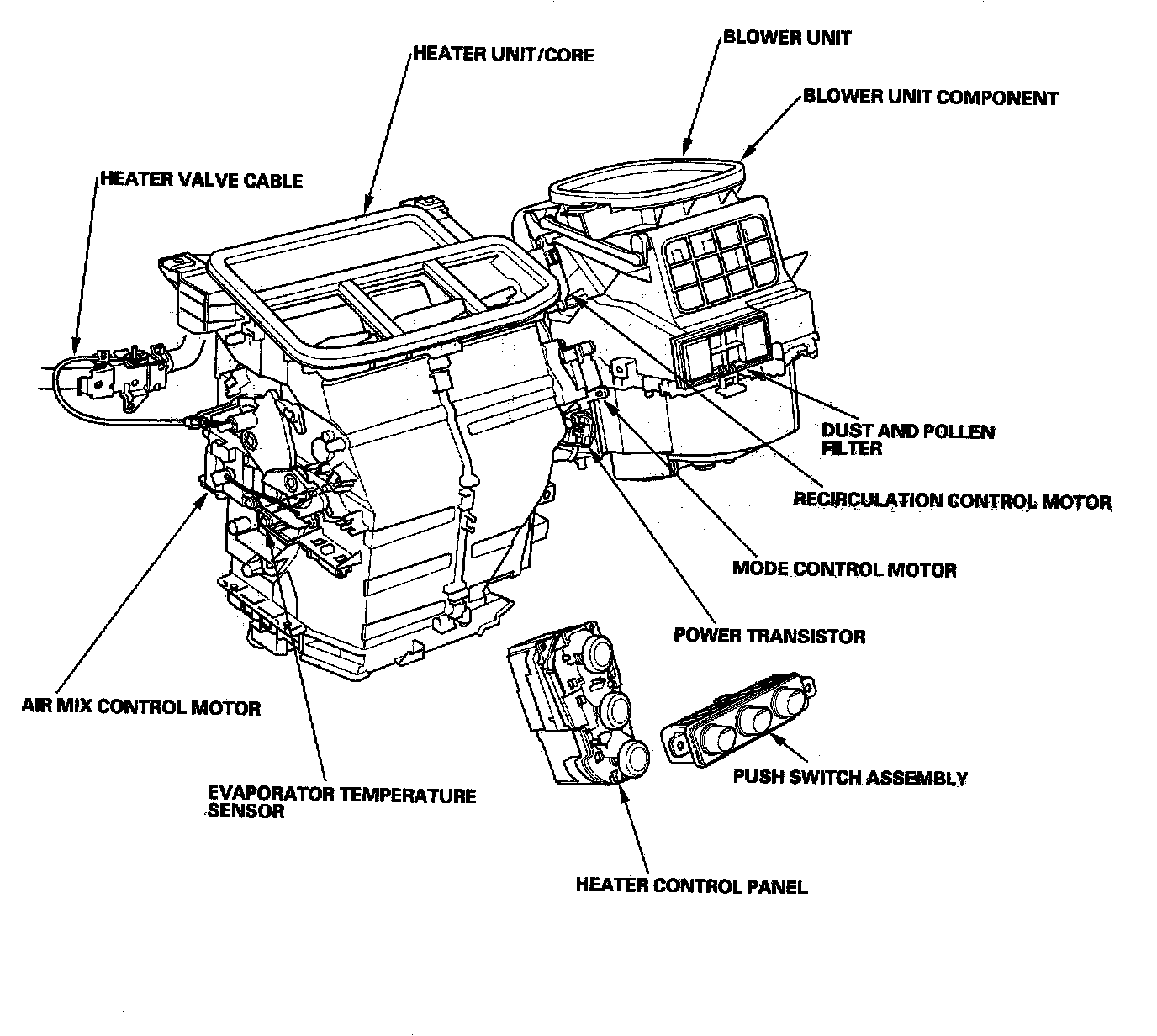

Heating/Air Conditioning - Component Location Index:
