Radiator Cooling Fan Motor: Service and Repair

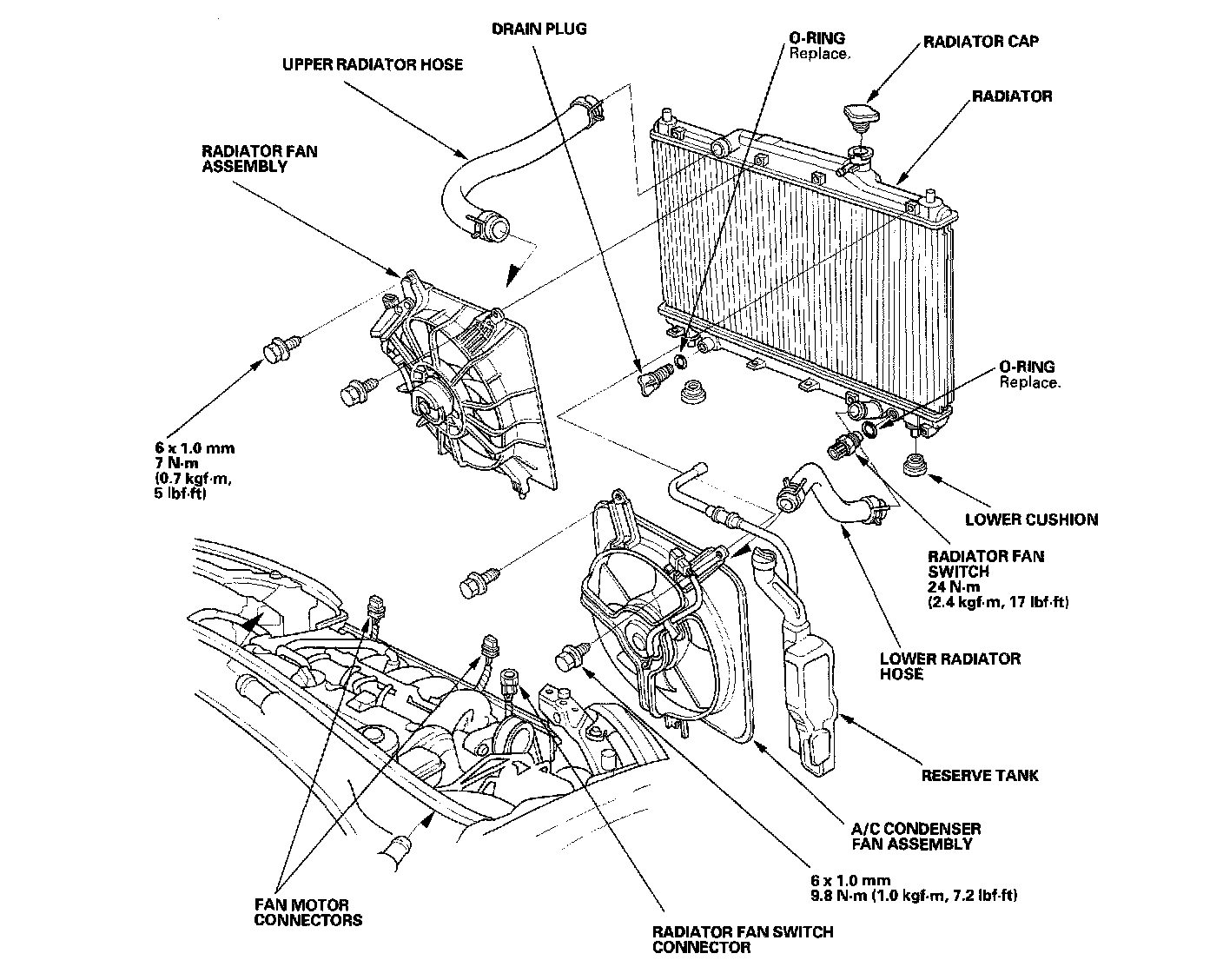

Radiator and Fans Replacement1. Drain the engine coolant.
2. Remove the front bumper.
3. Remove the bulkhead.
4. Remove the upper radiator hose and lower radiator hose.
5. Disconnect the fan motor connectors and radiator fan switch connector, then pull the radiator up and out.
6. Remove the fan shroud assemblies and other parts from the radiator.
7. Install the radiator in the reverse order of removal. Make sure the upper and lower cushions are set securely.
8. Install the bulkhead in the reverse order of removal. Apply body paint to the bulkhead mounting bolts.
9. Fill the radiator with engine coolant and bleed the air.
