Home >> Honda >> 2005 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Manual Transmission/Transaxle >> System Diagram

System Diagram

Transmission Disassembly





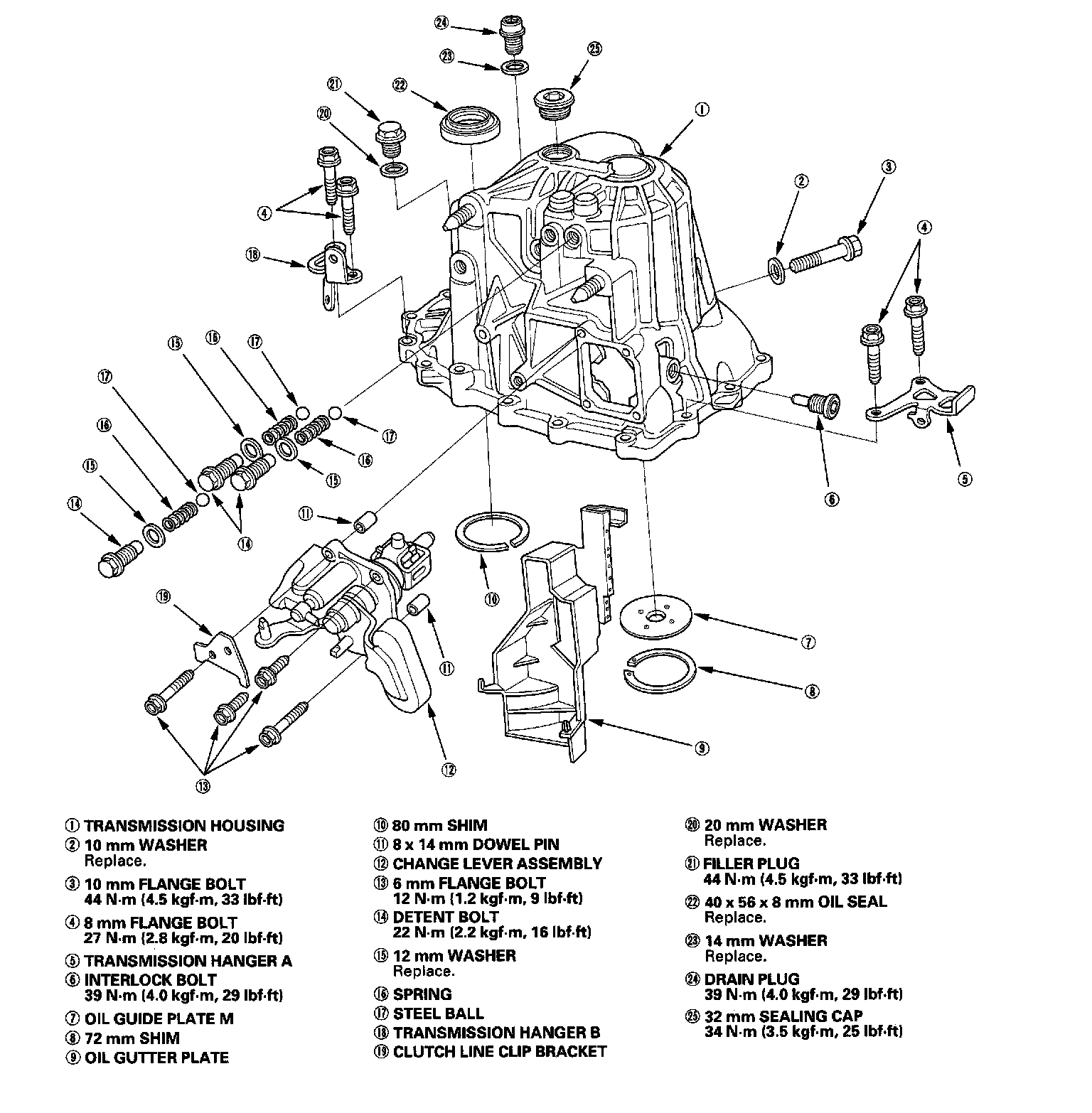

Exploded View-Clutch Housing

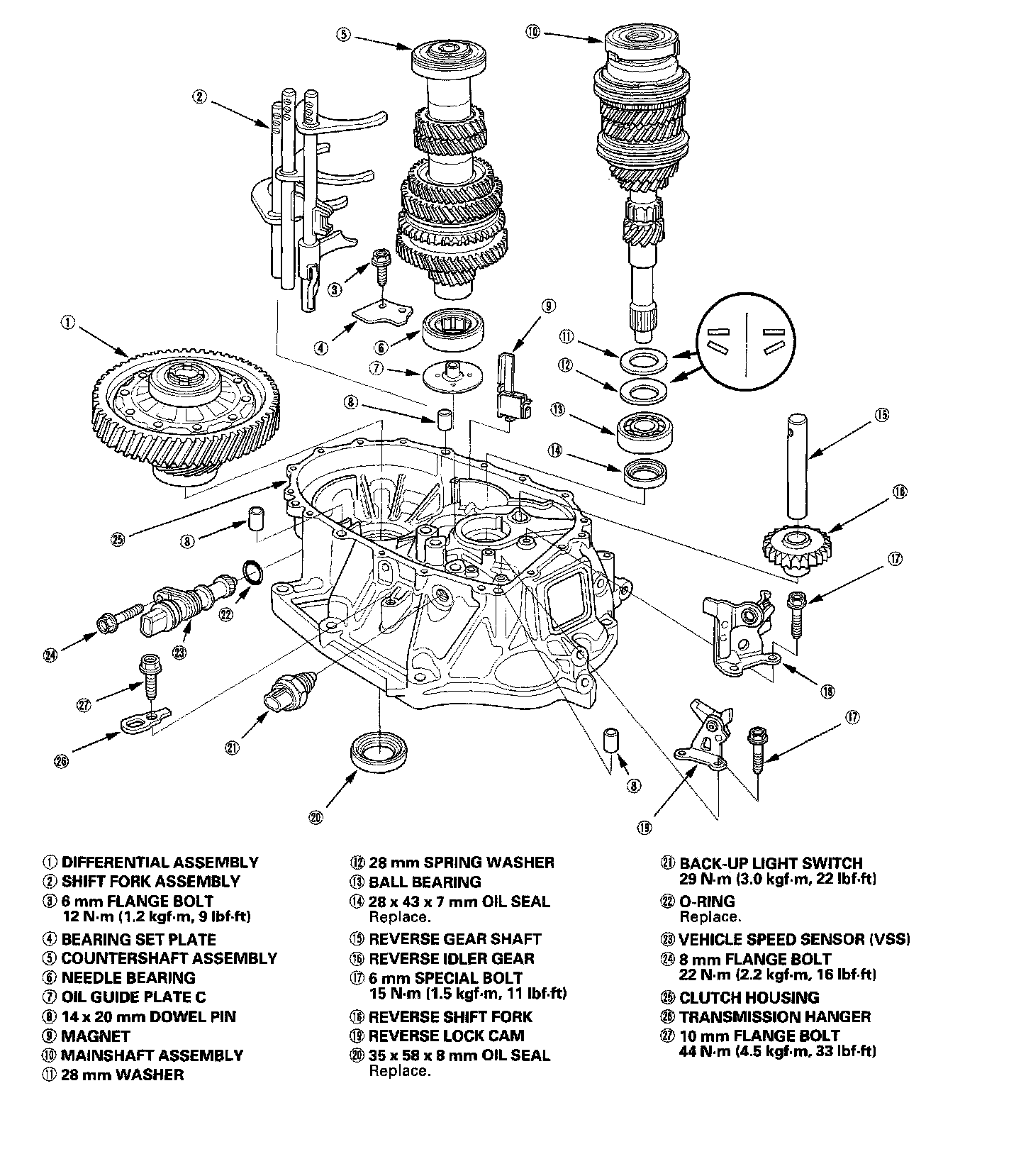

Exploded View-Transmission Housing

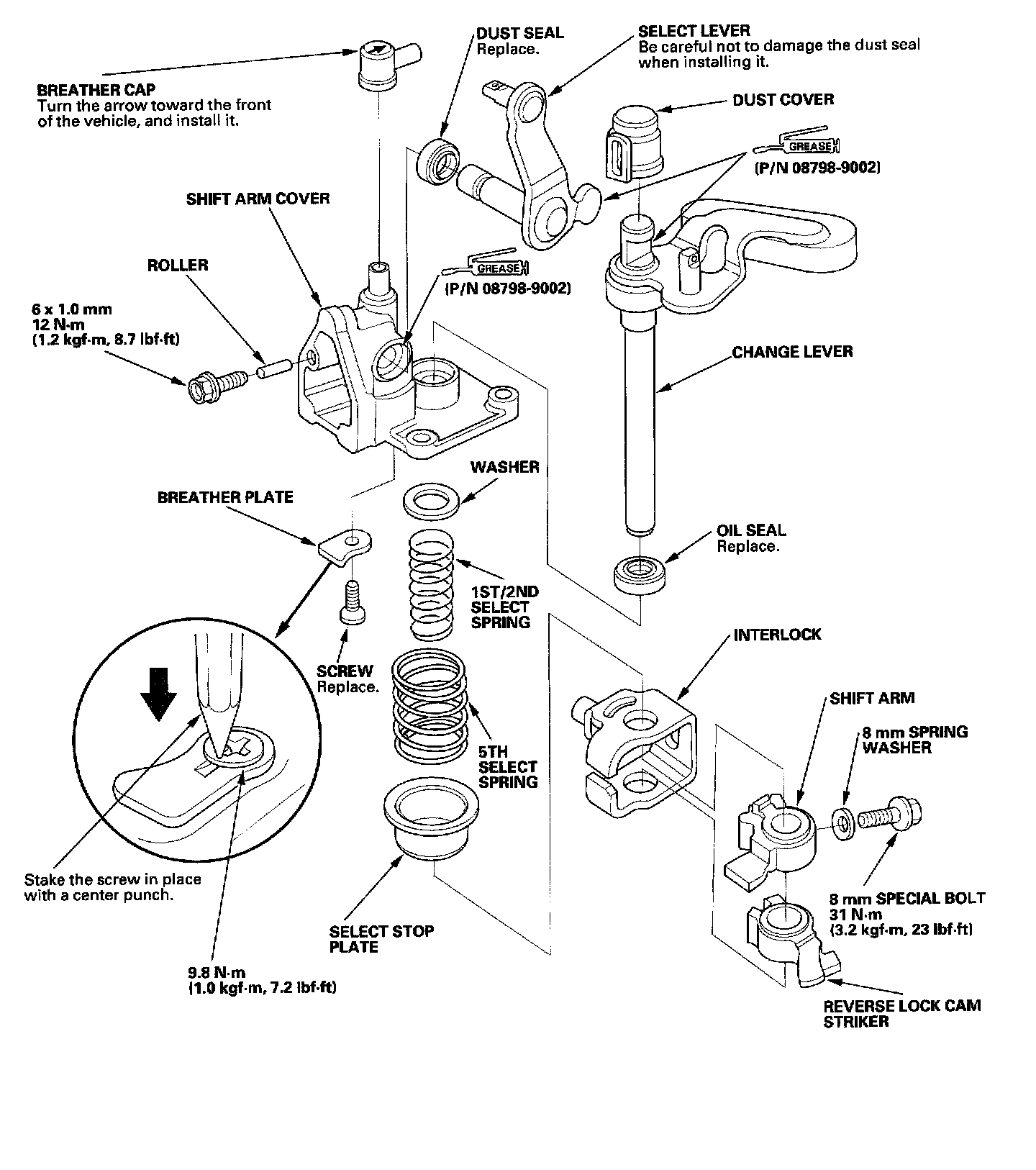

Change Lever Assembly Disassembly/Reassembly

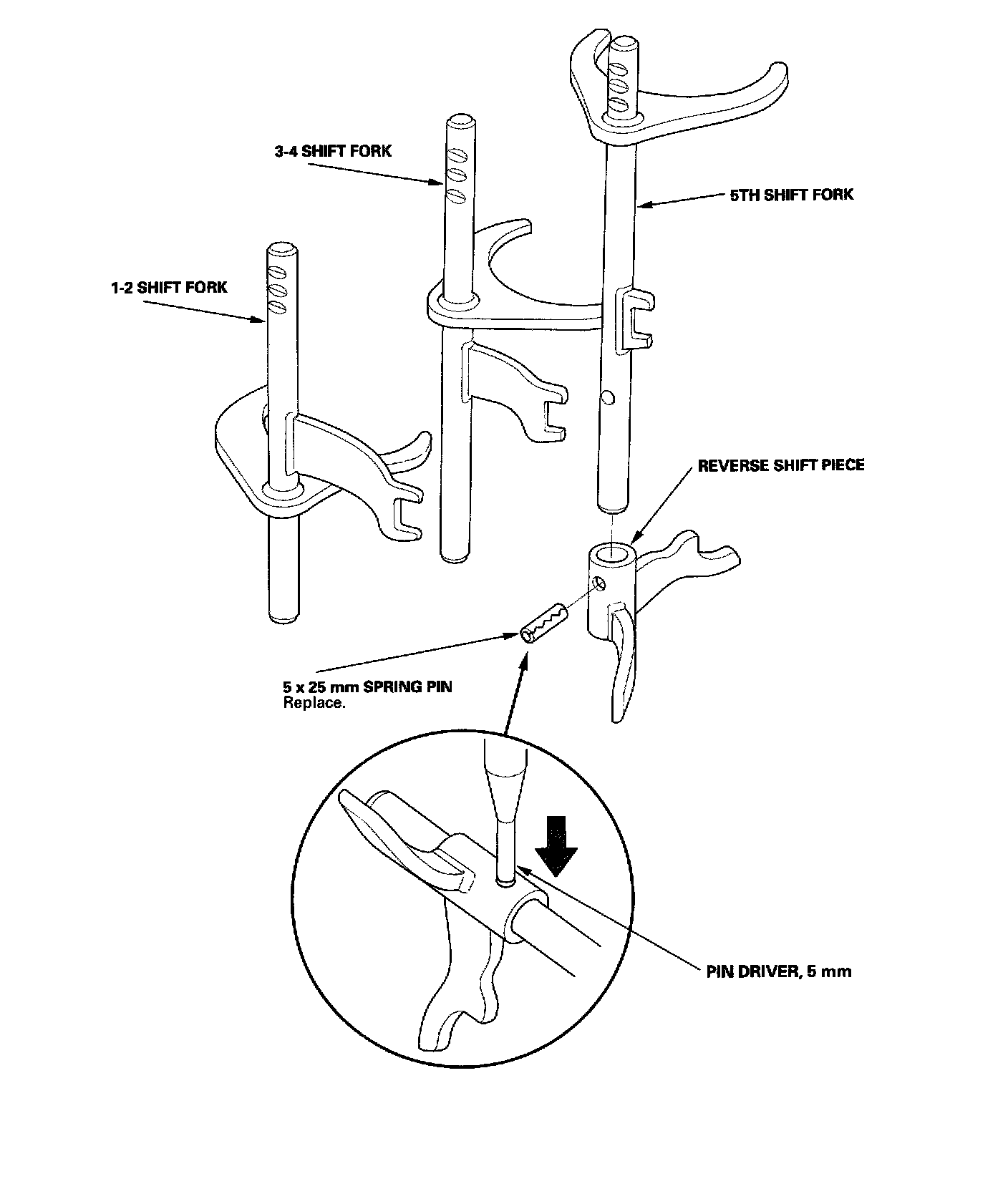

Shift Forks Disassembly/Reassembly

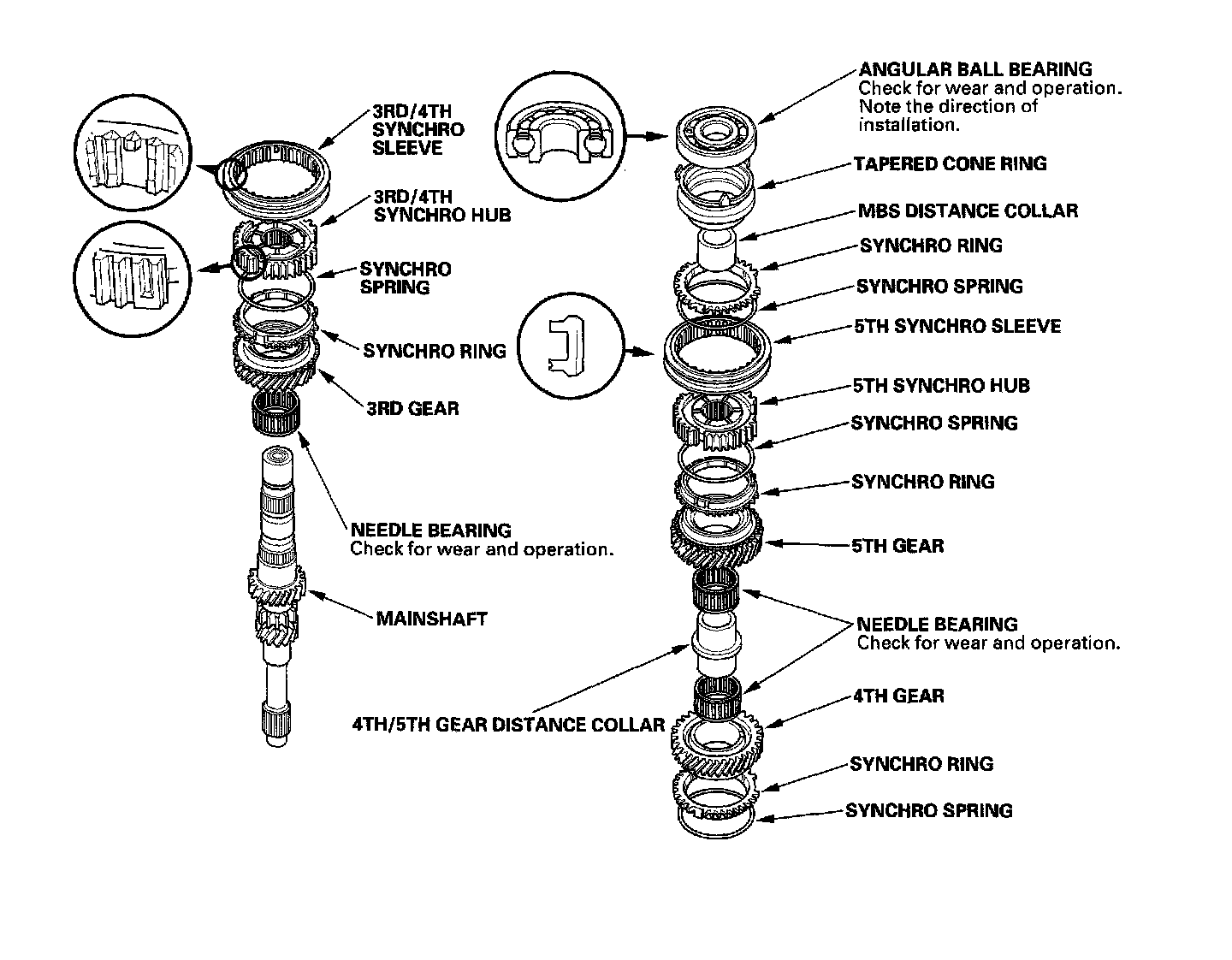

Mainshaft Reassembly

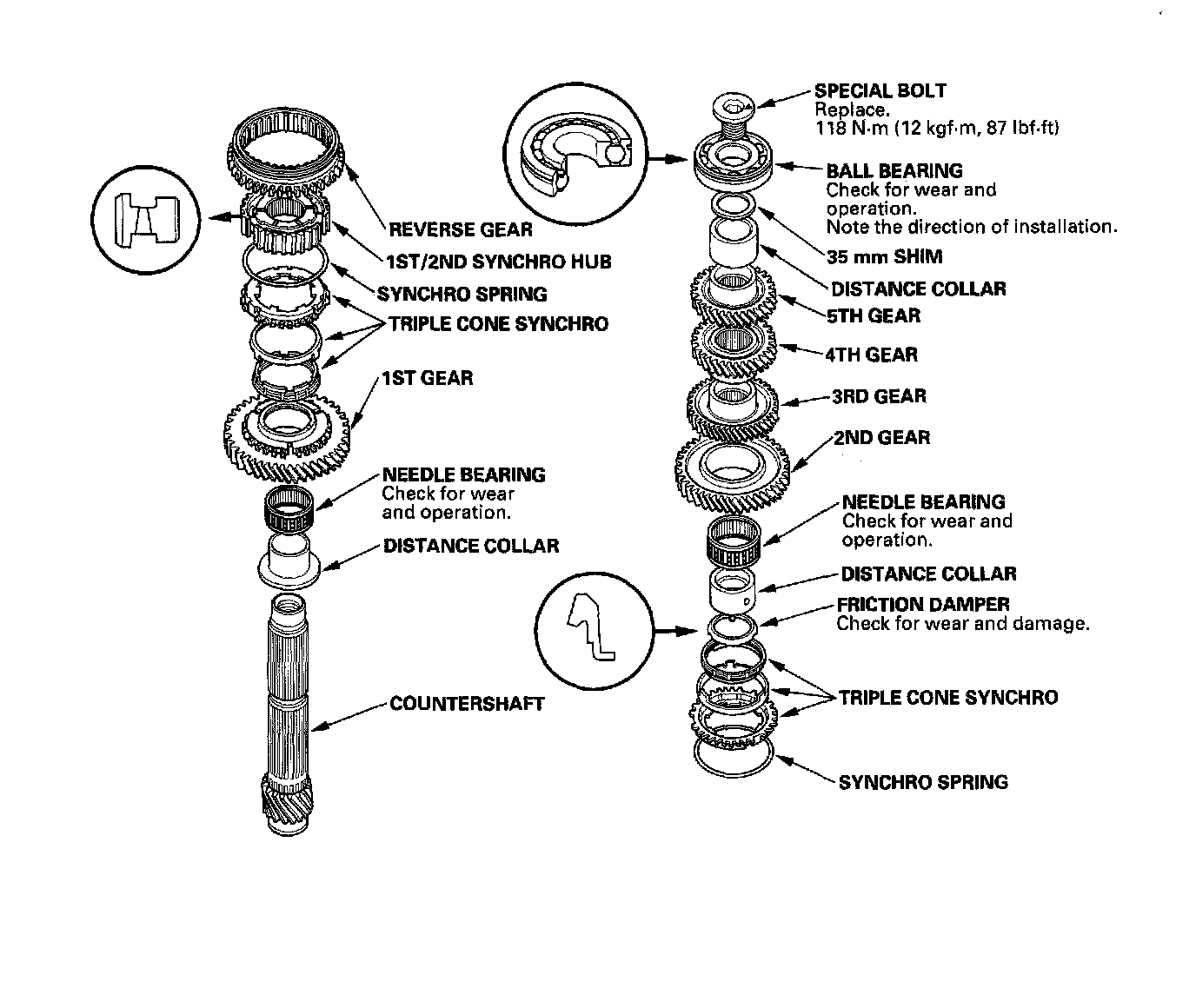

Countershaft Reassembly

M/T DIFFERENTIAL





Component Location Index
