Circuit Diagrams

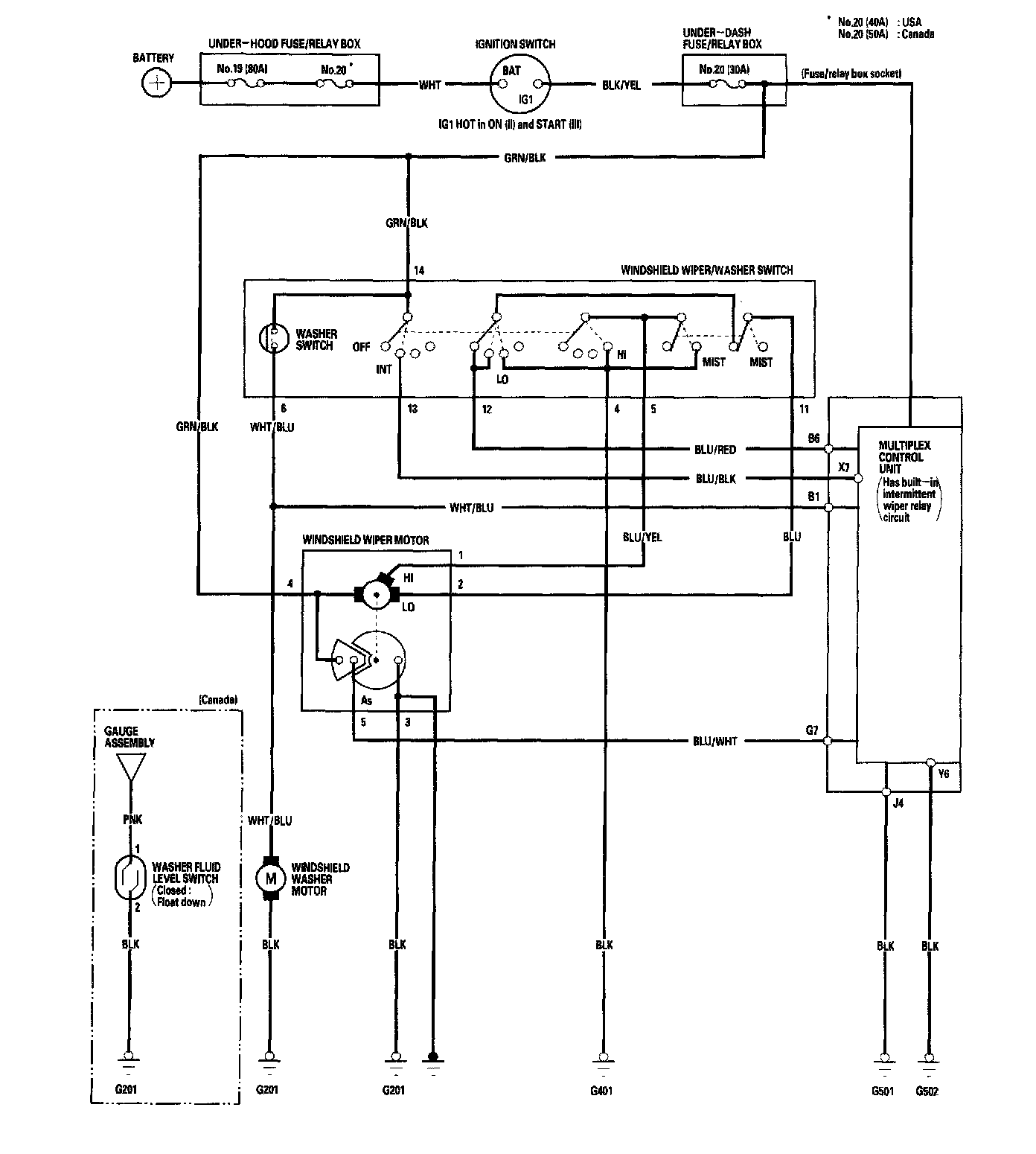

Wipers/Washers - Circuit Diagram (Windshield):

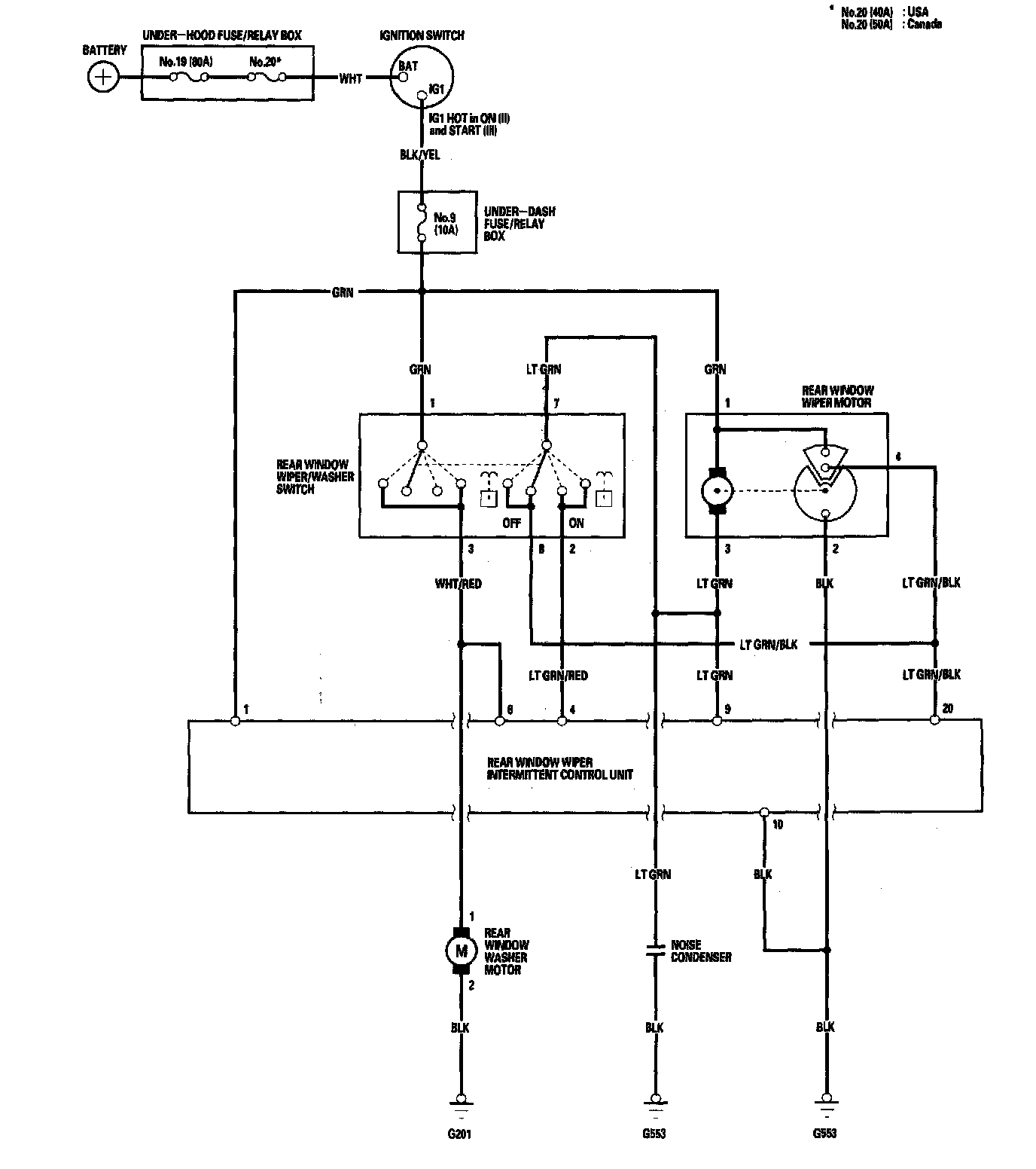

Wipers/Washers - Circuit Diagram (Rear Window):
