Home >> Honda >> 2005 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Restraints and Safety Systems >> System Diagram

System Diagram

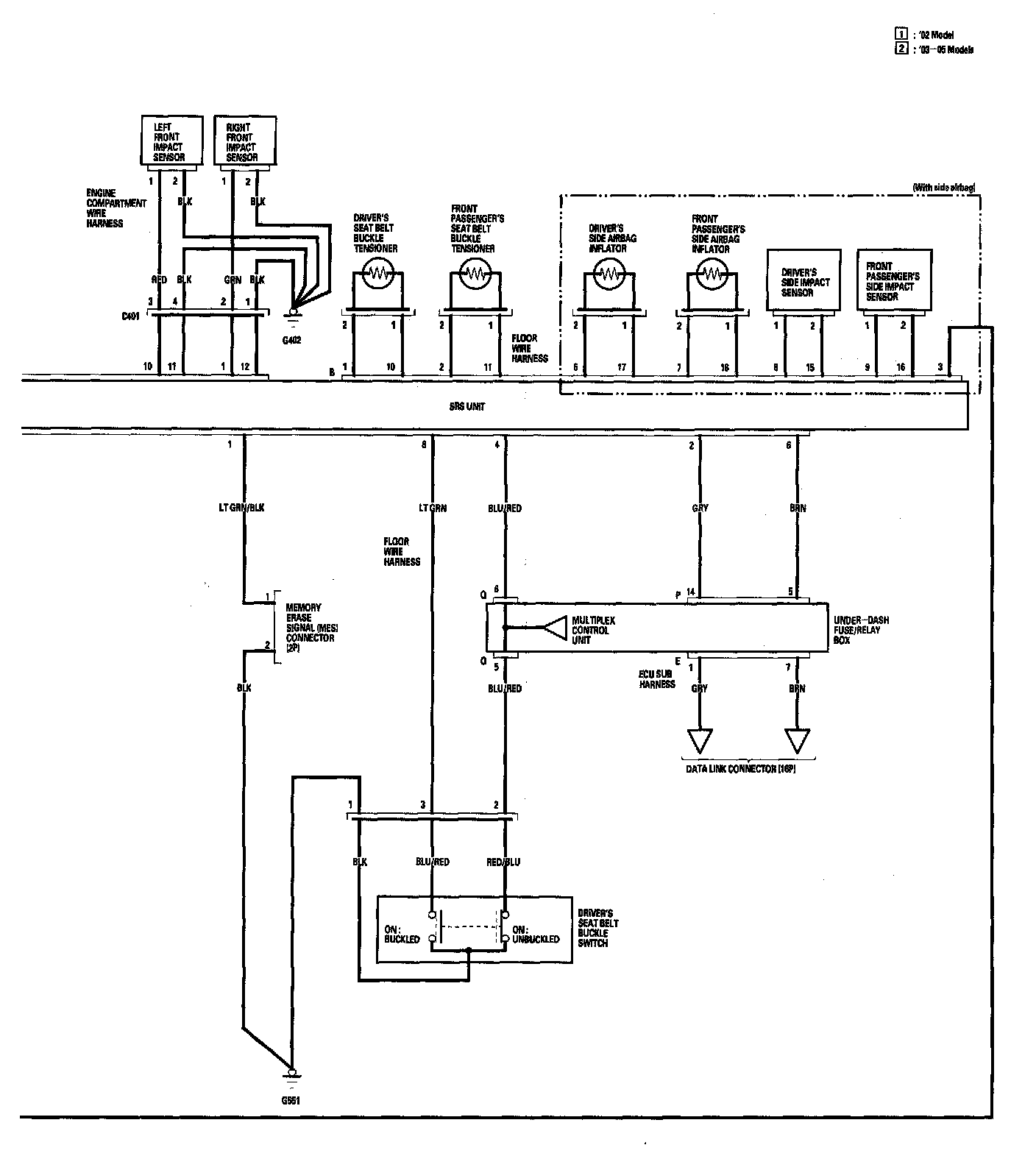

SRS - Circuit Diagram Part 1:

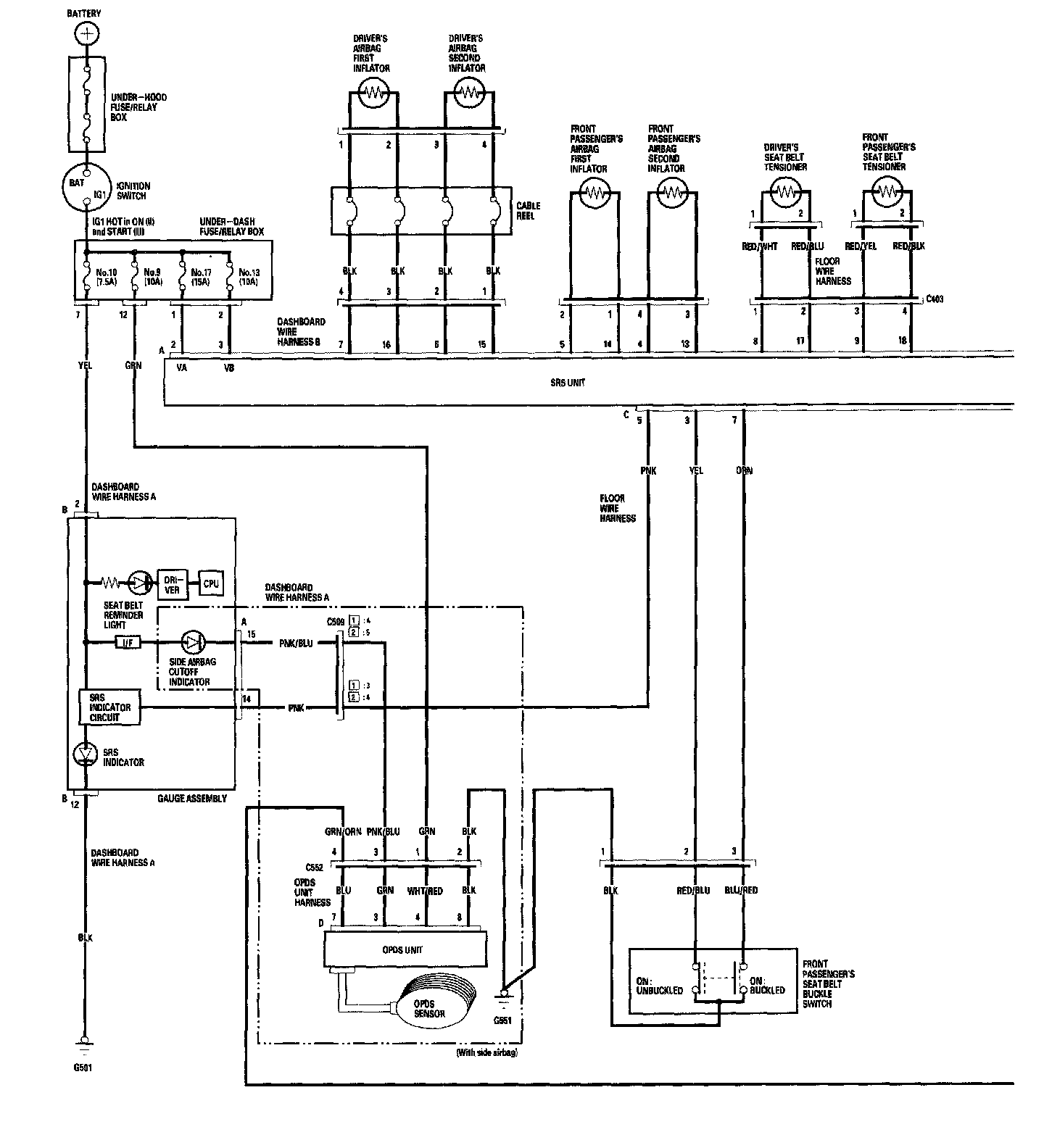

SRS - Circuit Diagram Part 2:
