ECM Electrical Connections

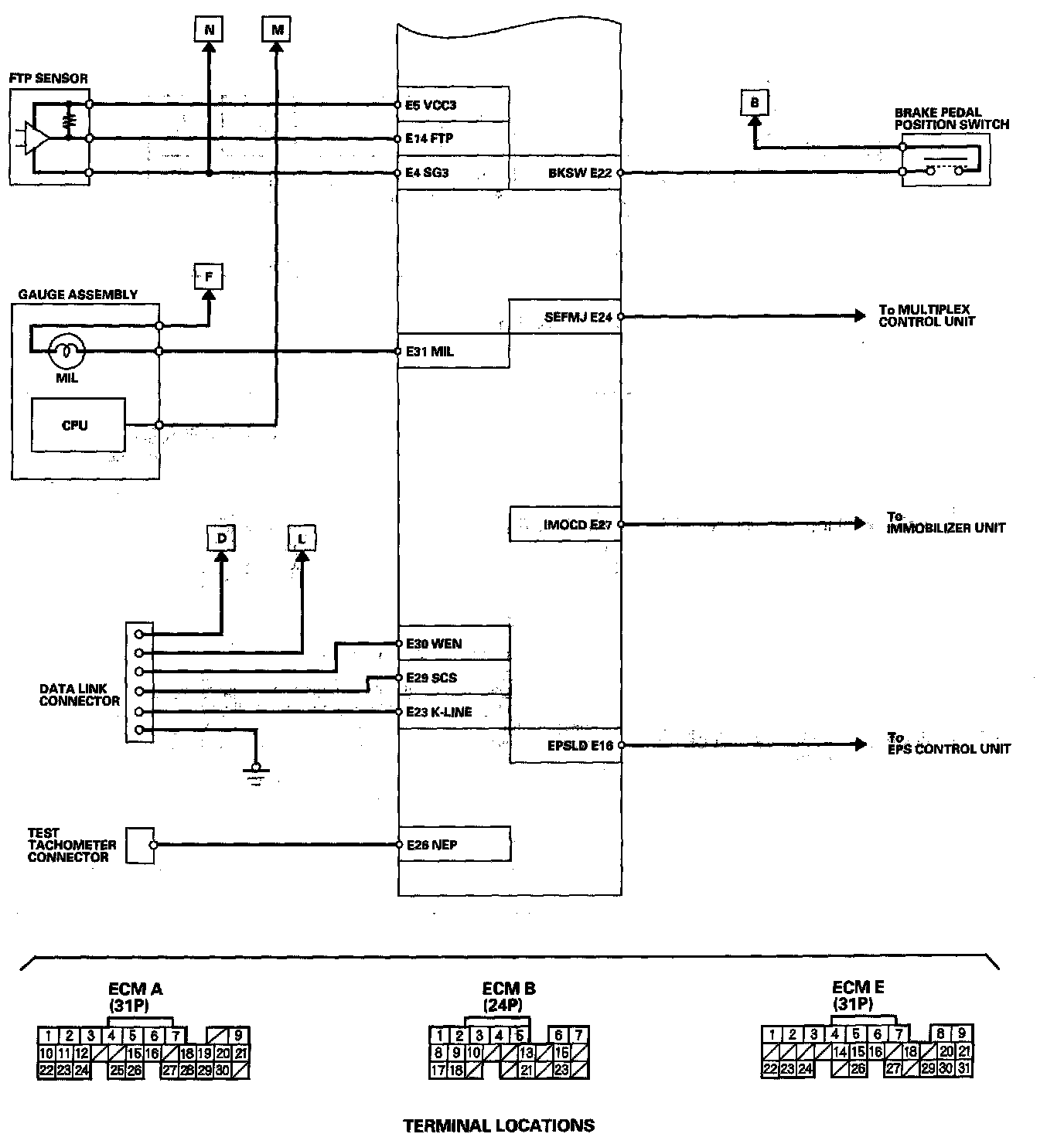

ECM Electrical Connections Part 1:

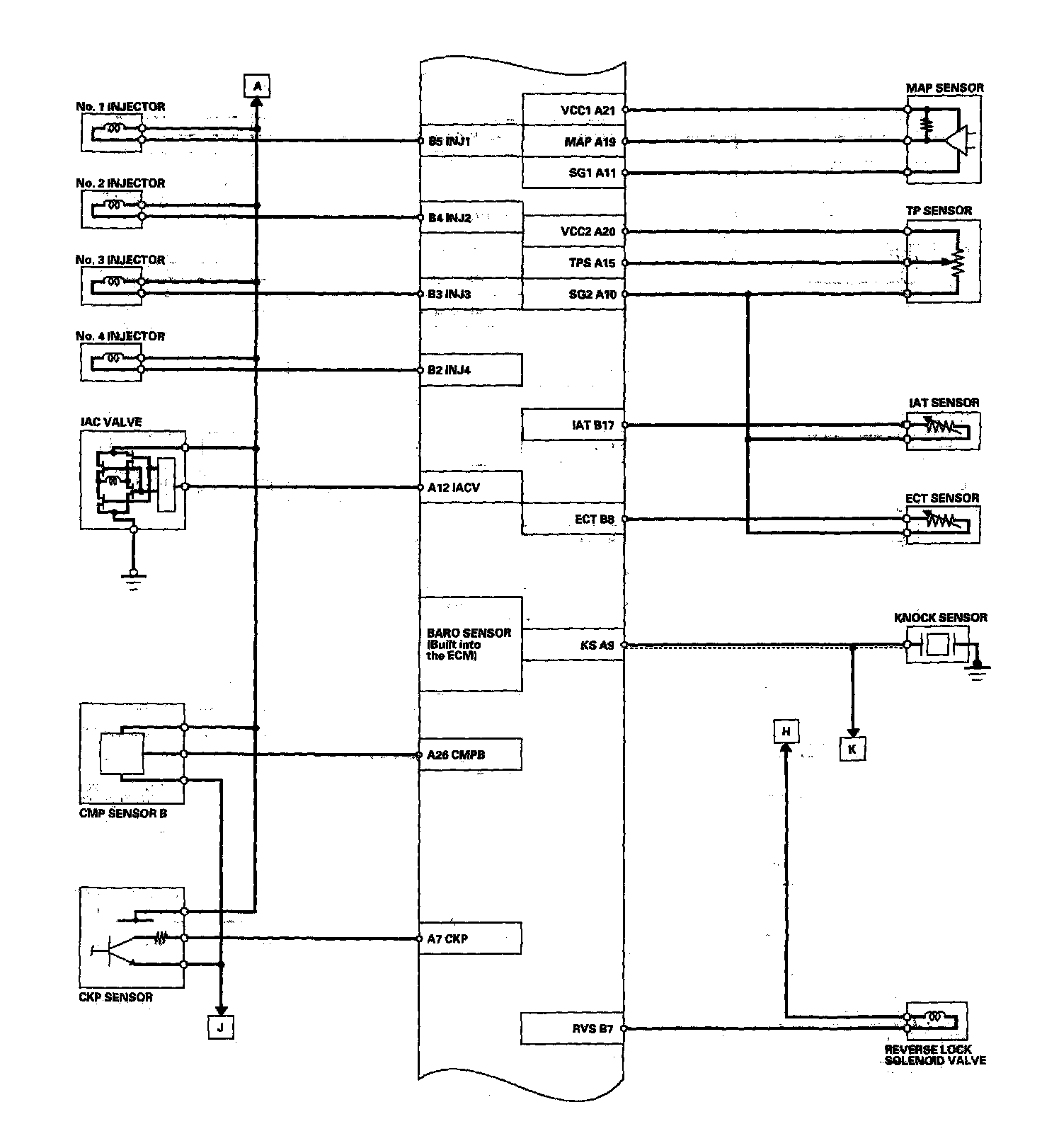

ECM Electrical Connections Part 2:

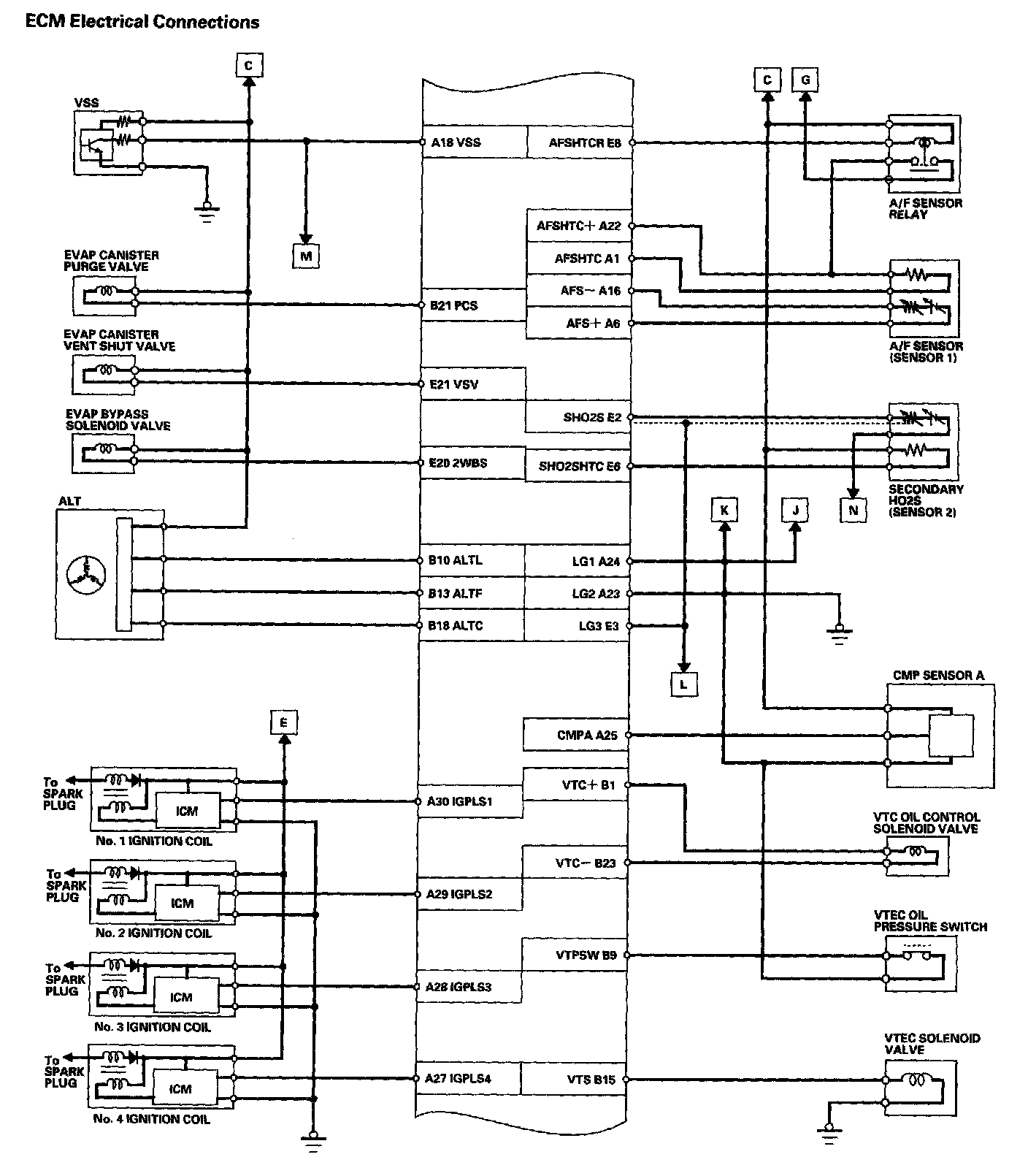

ECM Electrical Connections Part 3:

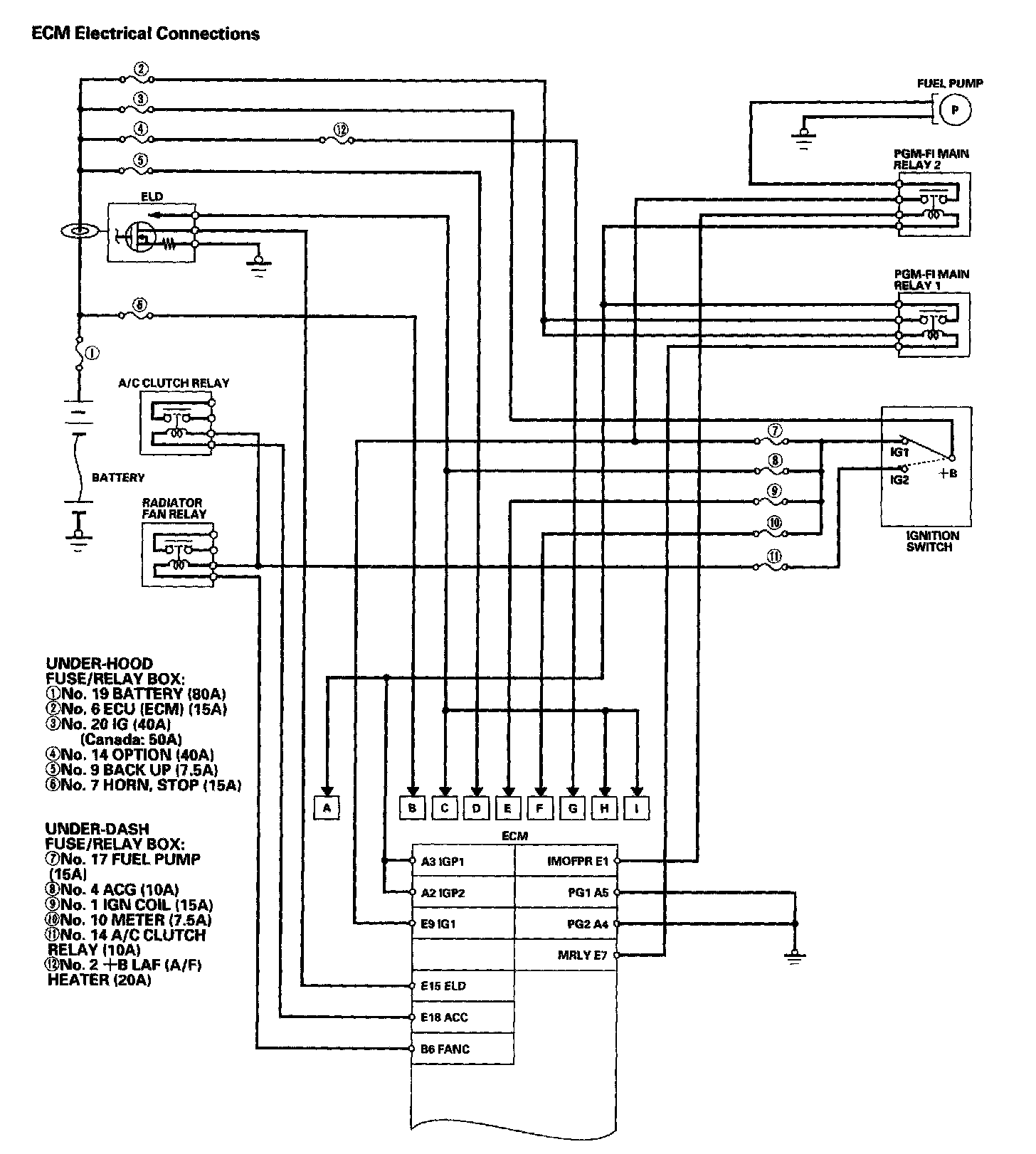

ECM Electrical Connections Part 4:
