Home >> Honda >> 2005 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper and Washer Systems >> Wiper Control Module

Wiper Control Module

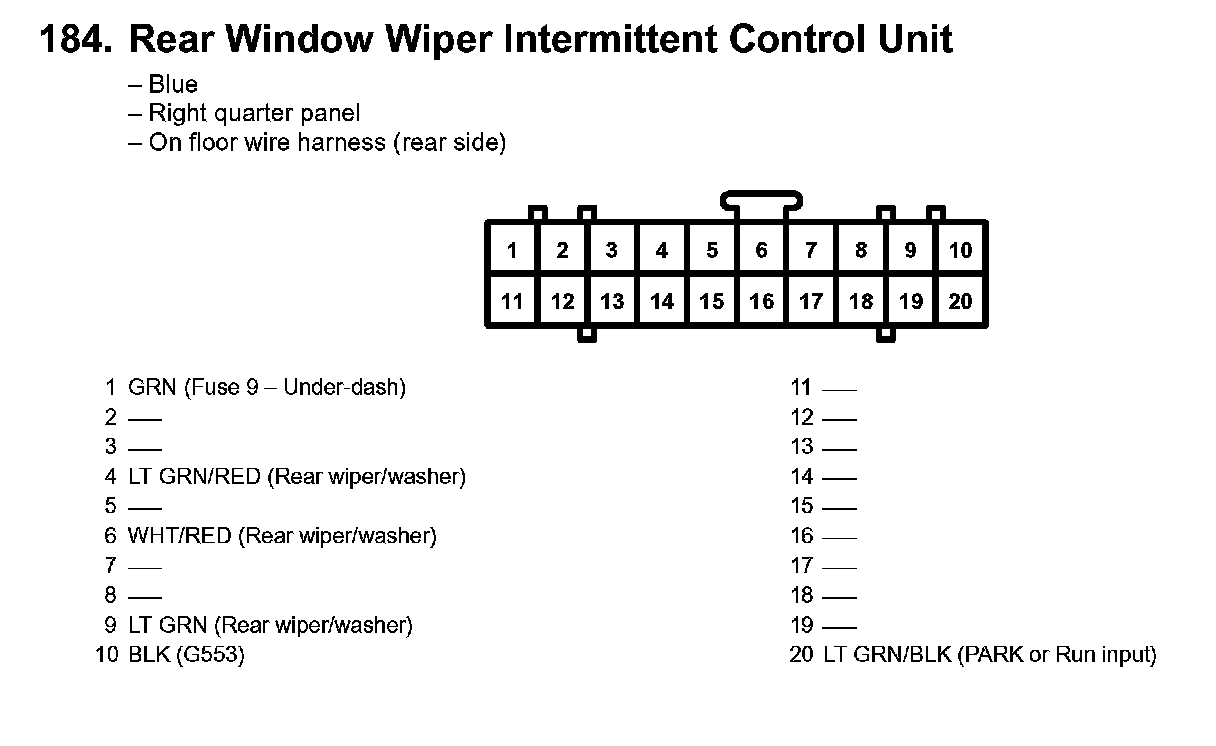

184. Rear Window Wiper Intermittent Control Unit:
