Civic Si L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Marker Lamp
Marker Lamp

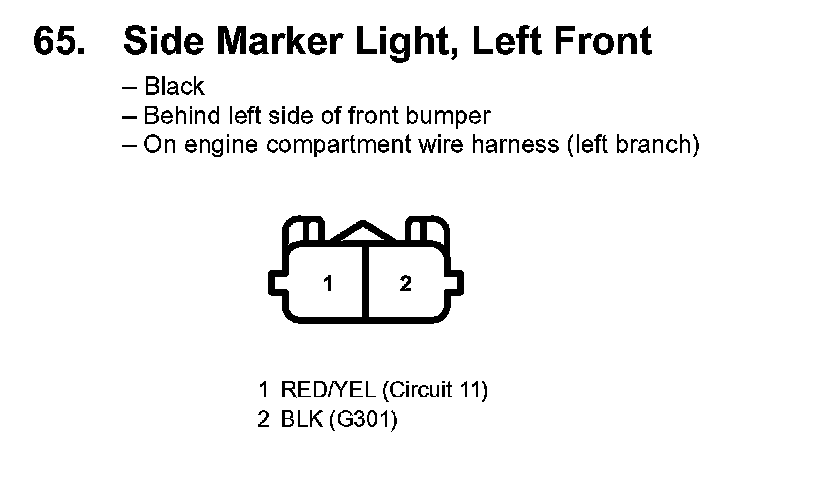

65. Side Marker Light, Left Front:

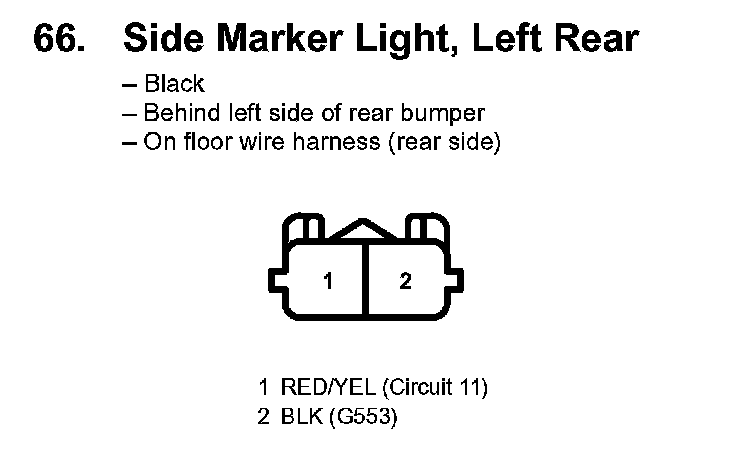

66. Side Marker Light, Left Rear:

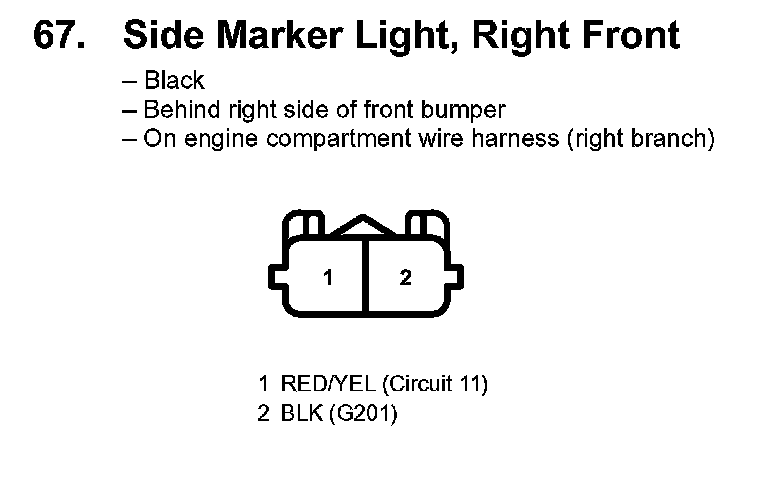

67. Side Marker Light, Right Front:

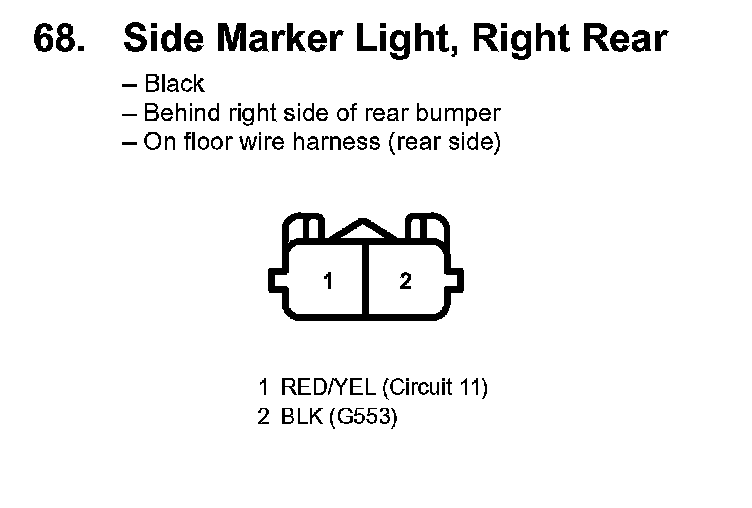

68. Side Marker Light, Right Rear:
