System Diagram

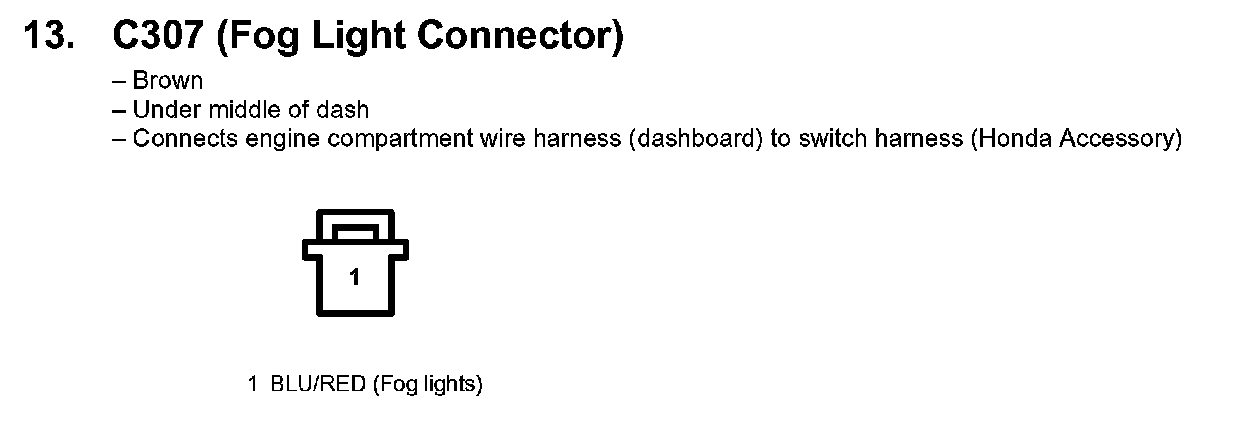

13. C307 (Fog Light Connector):

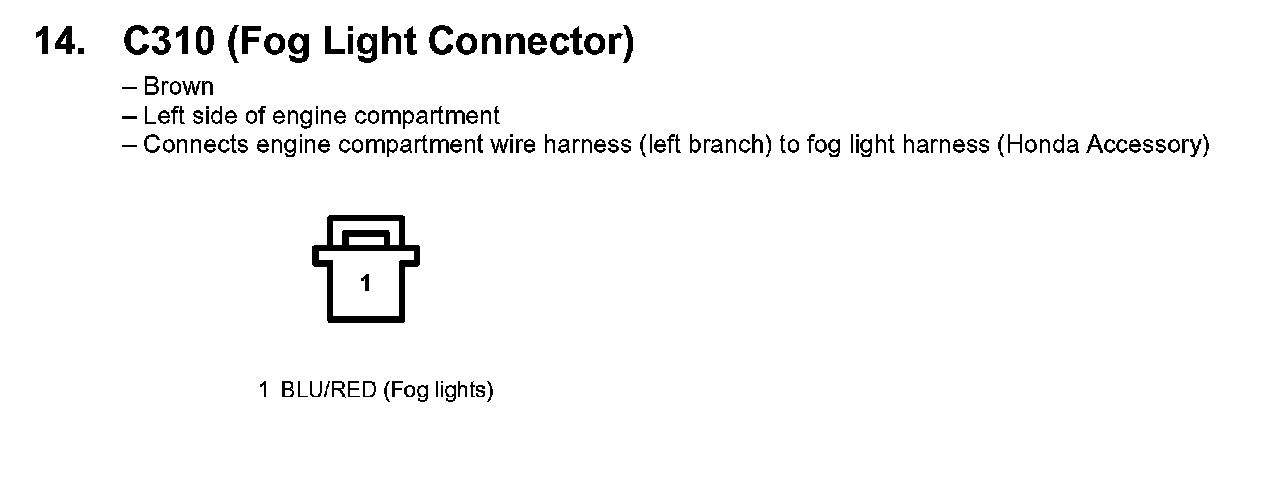

14. C310 (Fog Light Connector):

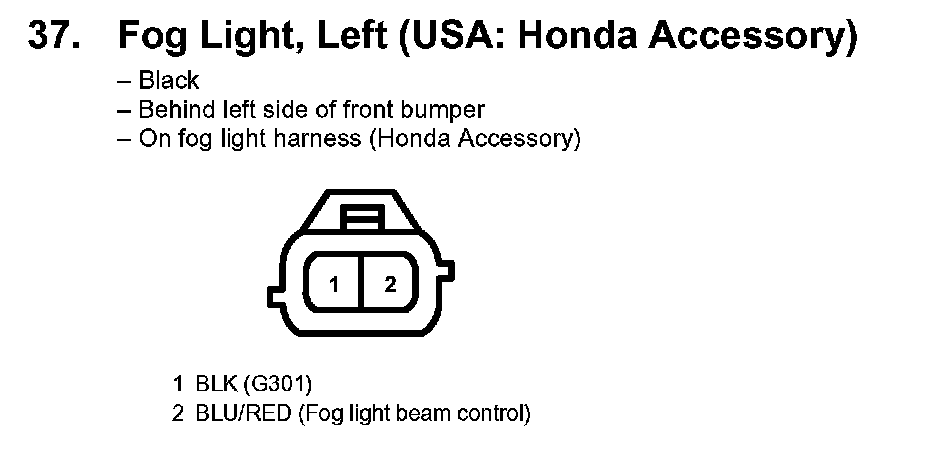

37. Fog Light, Left (USA: Honda Accessory):

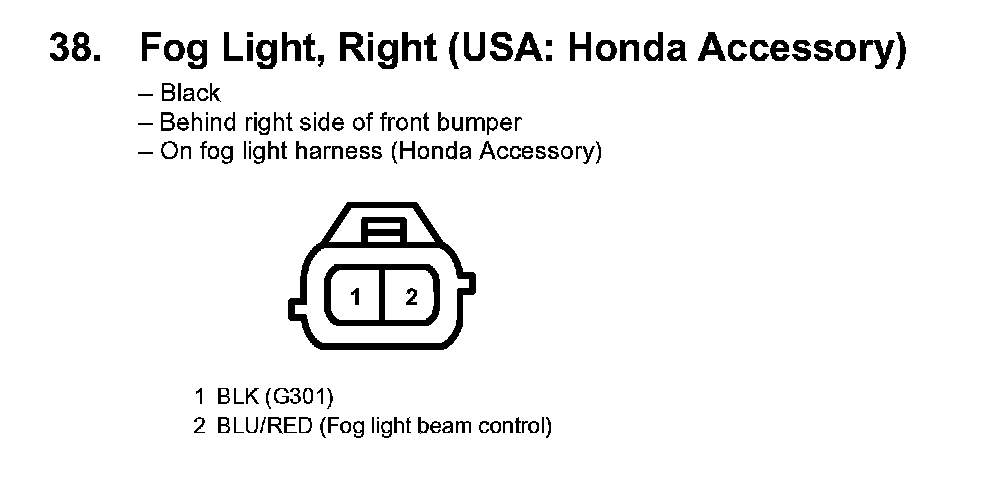

38. Fog Light, Right (USA: Honda Accessory):

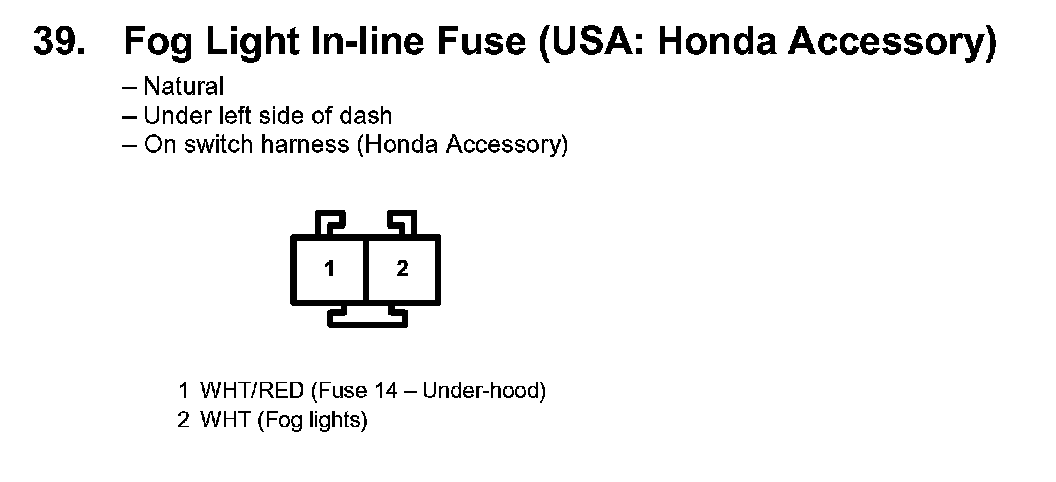

39. Fog Light In-line Fuse (USA: Honda Accessory):
