Engine Control Module Terminal Arrangement

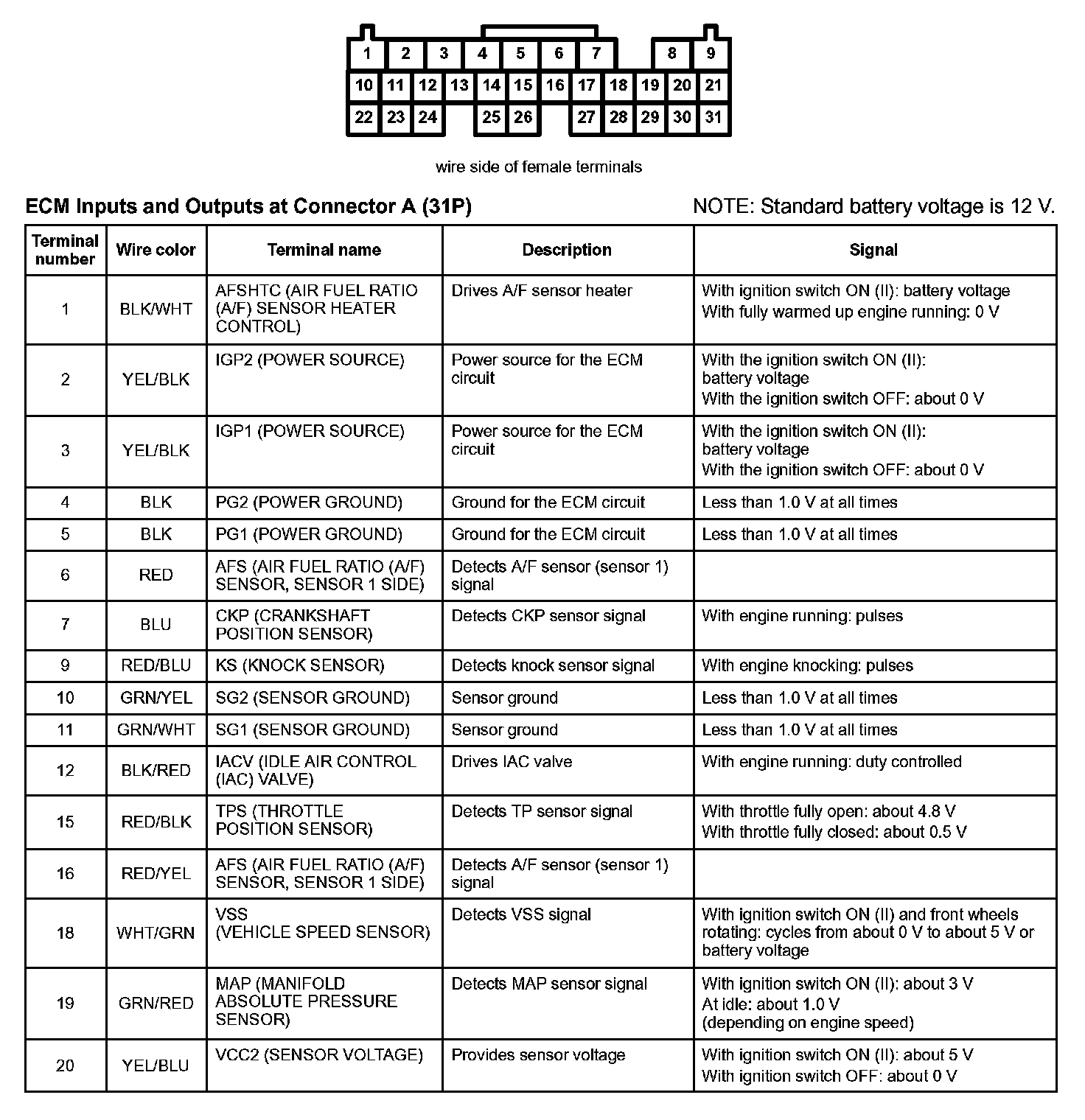

ECM Inputs And Outputs At Connector A (31P) Part 1:

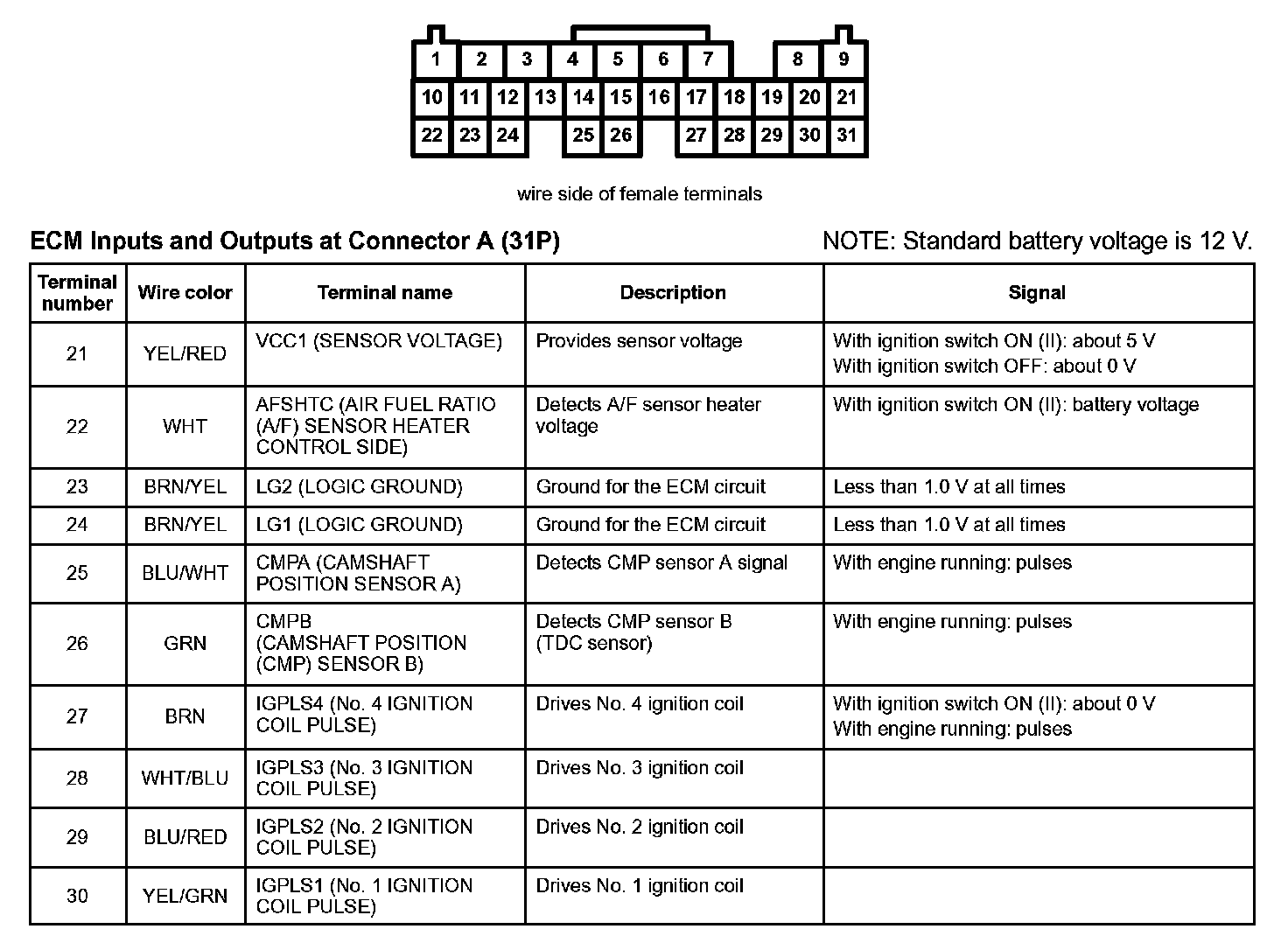

ECM Inputs And Outputs At Connector A (31P) Part 2:

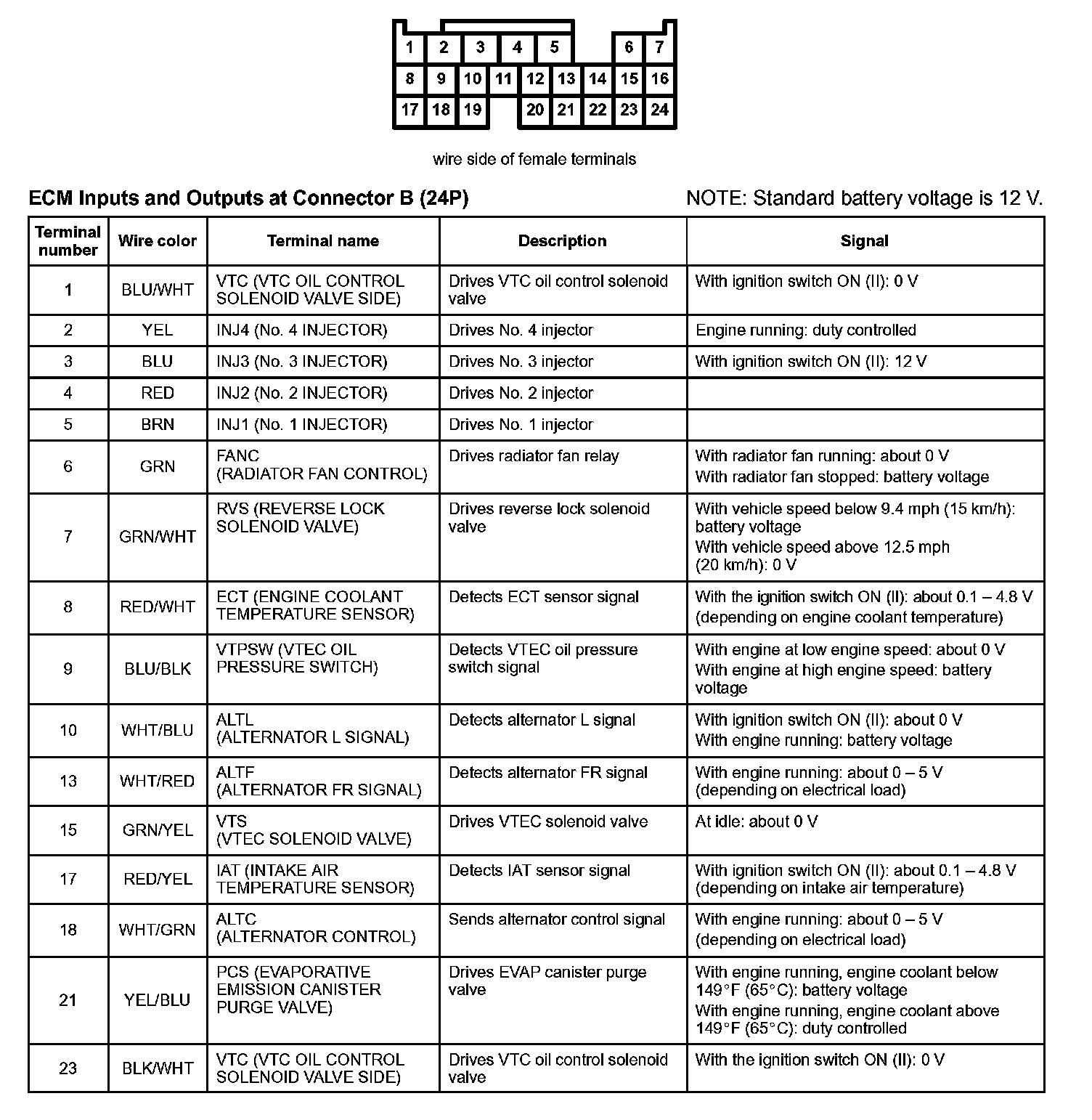

ECM Inputs And Outputs At Connectors B (24P):

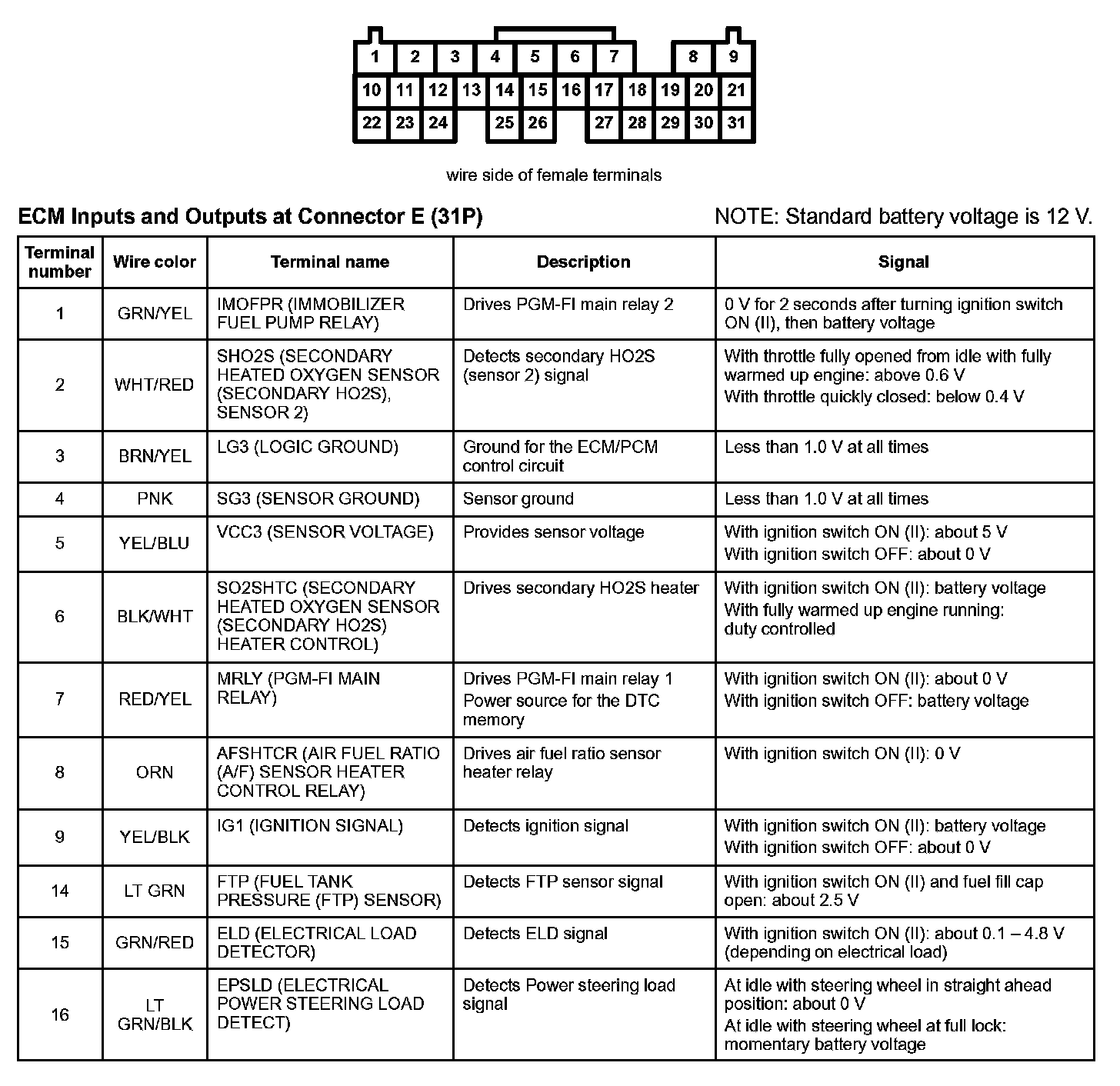

ECM Inputs And Outputs At Connectors E (31P) Part 1:

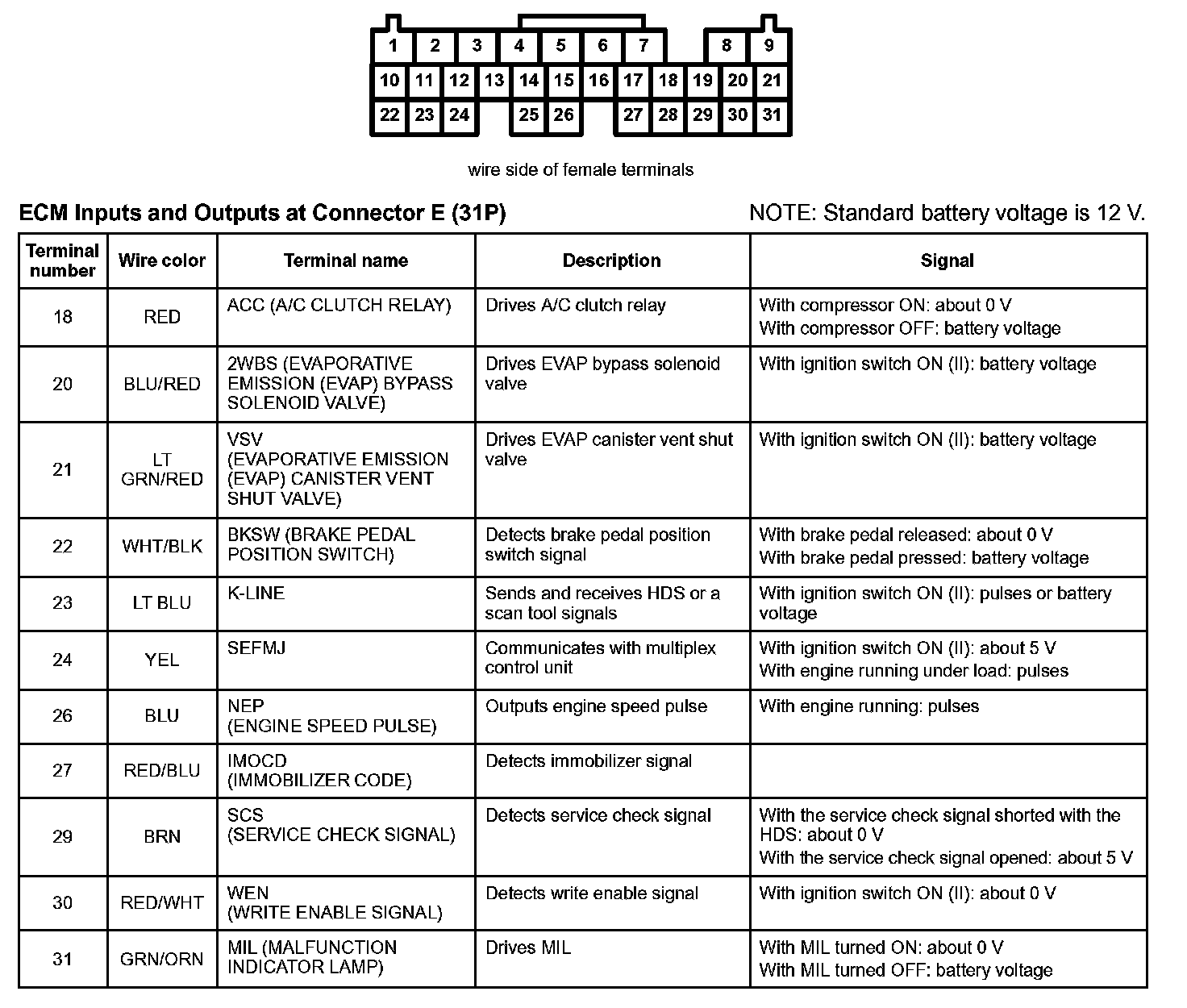

ECM Inputs And Outputs At Connectors E (31P) Part 2:
