Home >> Honda >> 2005 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 76-100 >> 95

Views 76-100: 95

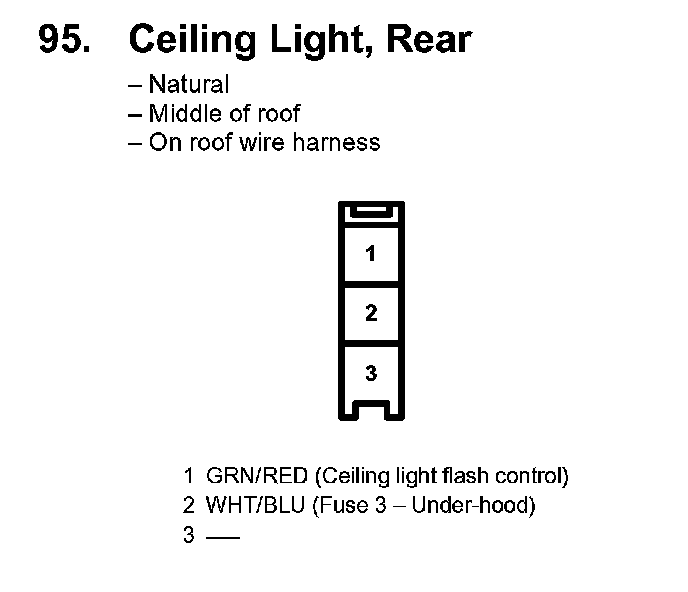

95. Ceiling Light, Rear:



120. Ceiling Light/Spotlights:
