Home >> Honda >> 2005 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 76-100 >> 81

Views 76-100: 81

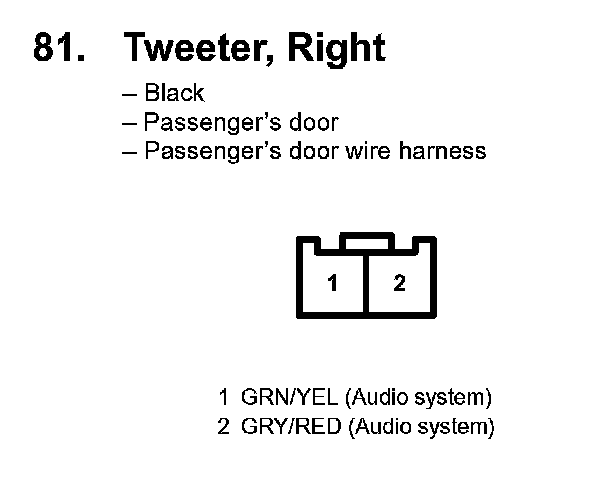

81. Tweeter, Right:
