Home >> Honda >> 2005 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 199 - 230 >> C230 A&B

C230 A&B

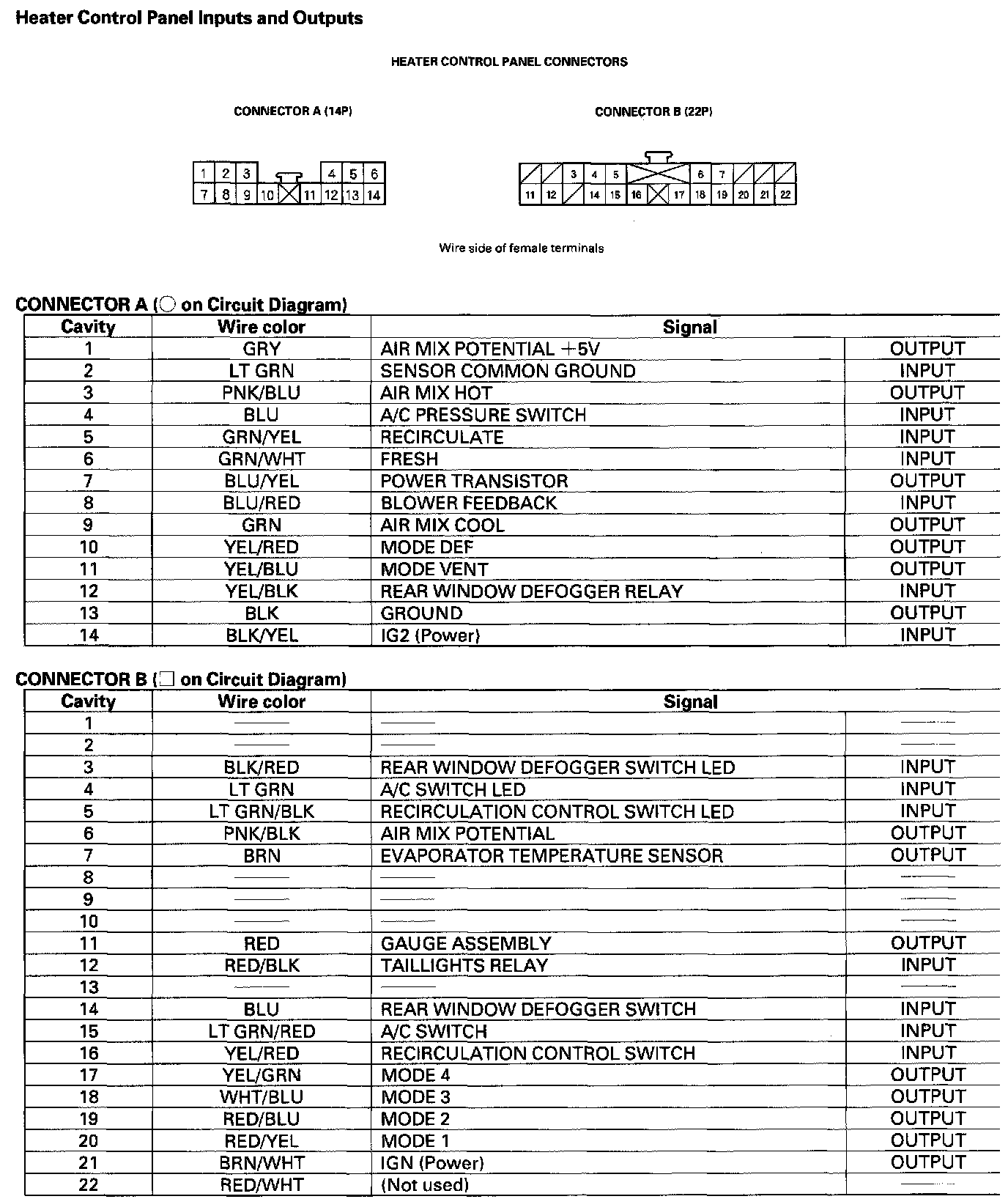

Connector 230 A & B
