Alarm Module, (Vehicle Antitheft)

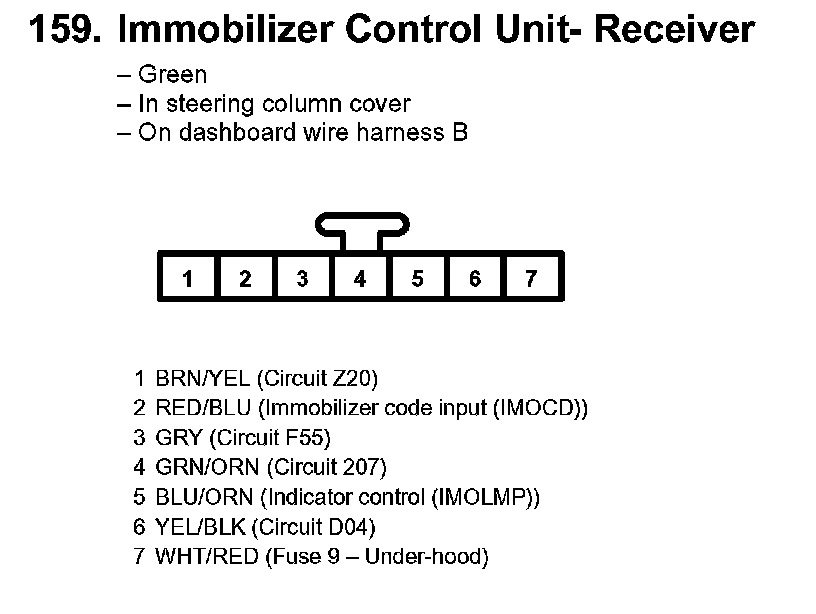

159. Immobilizer Control Unit-Receiver:

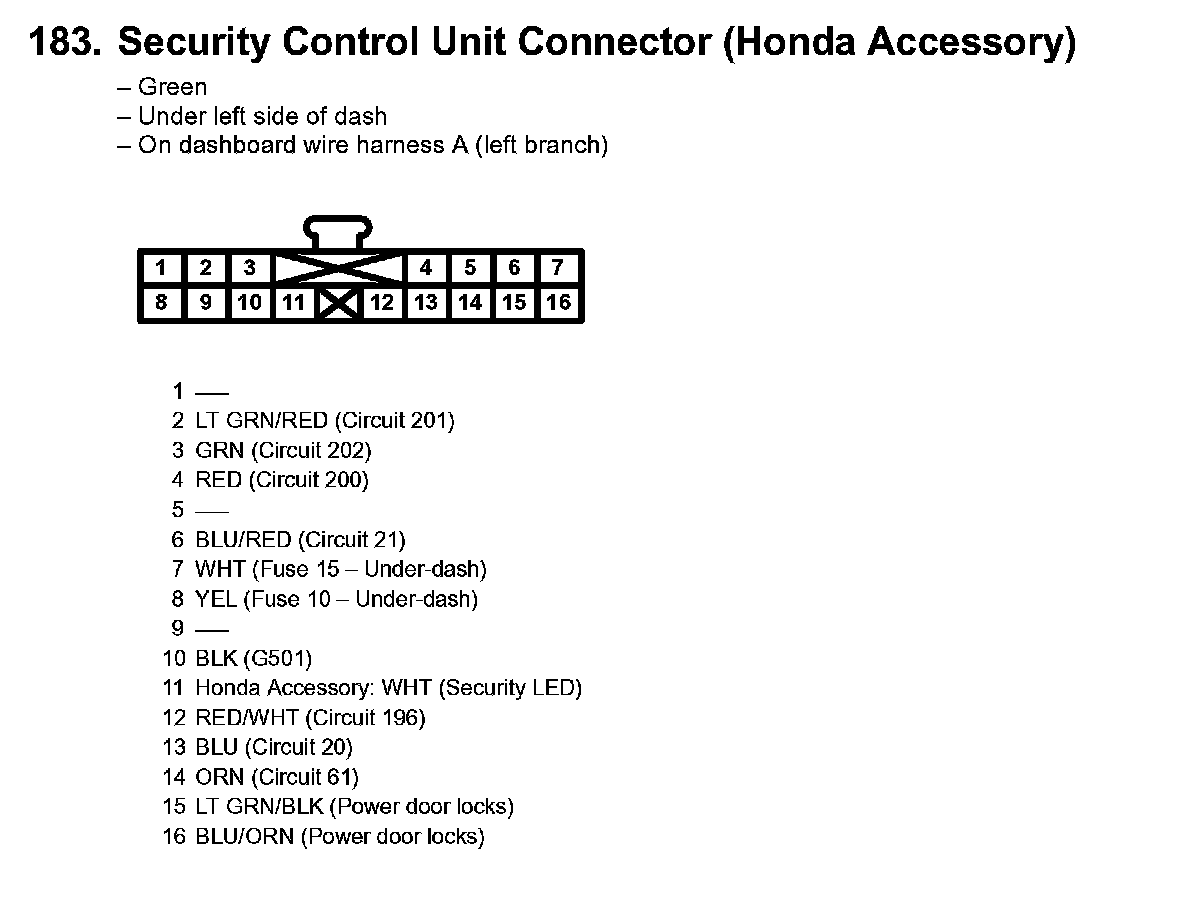

183. Security Control Unit Connector (Honda Accessory):
