Trunk / Liftgate Switch: Testing and Inspection
Hatch Latch Switch Test1. Open the hatch.
2. Remove the hatch lower trim panel.

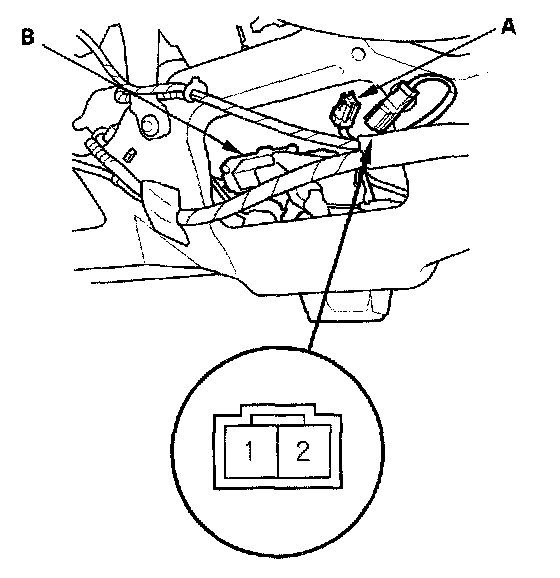

3. Disconnect the 2P connector (A) from the hatch latch (B),
4. Check for continuity between the No. 1 and No. 2 terminals.
- There should be continuity with the hatch open.
- There should be no continuity with the hatch closed.
5. If the continuity is not as specified, replace the hatch latch.
