Passenger's

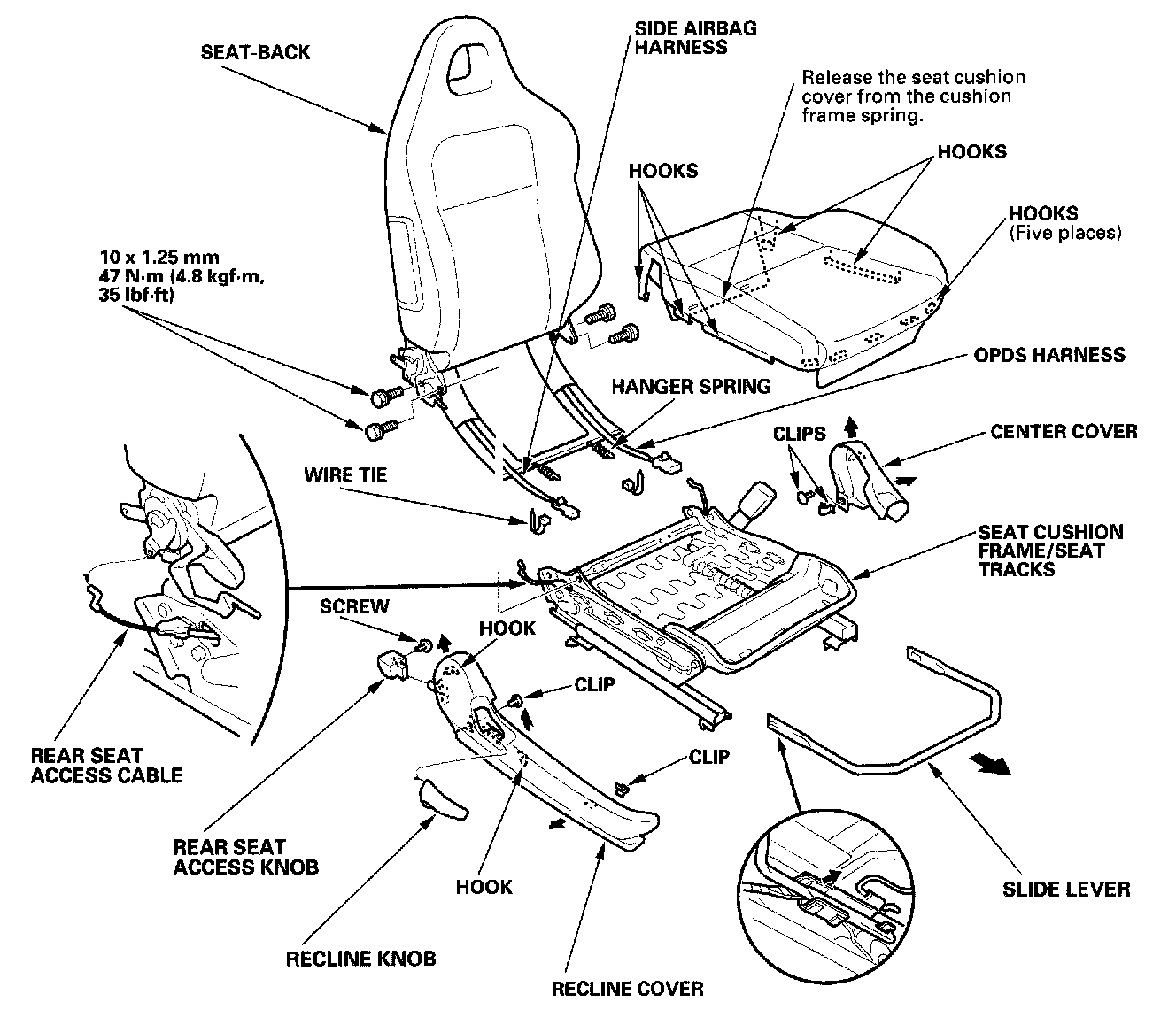

Front Seat Disassembly/Reassembly - Passenger's




For some models: SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

NOTE:
- Take care not to tear the seams or damage the seat covers.
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Apply multipurpose grease to the moving portion of the seat track.
- To prevent wrinkles in the seat cushion cover, stretch the material evenly over the pad.
- Make sure the rear seat access cable is connected properly on each side.
- Replace any damaged clips, and replace the wire ties with new ones.
