Power Door Lock Actuator: Diagrams

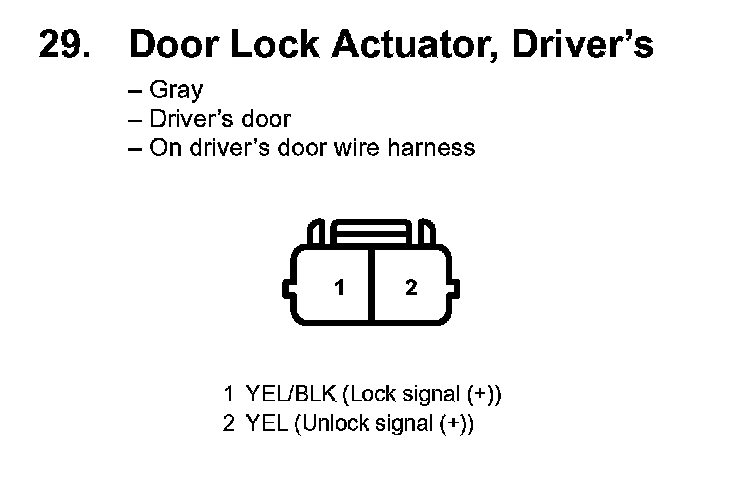

29. Door Lock Actuator, Driver's:

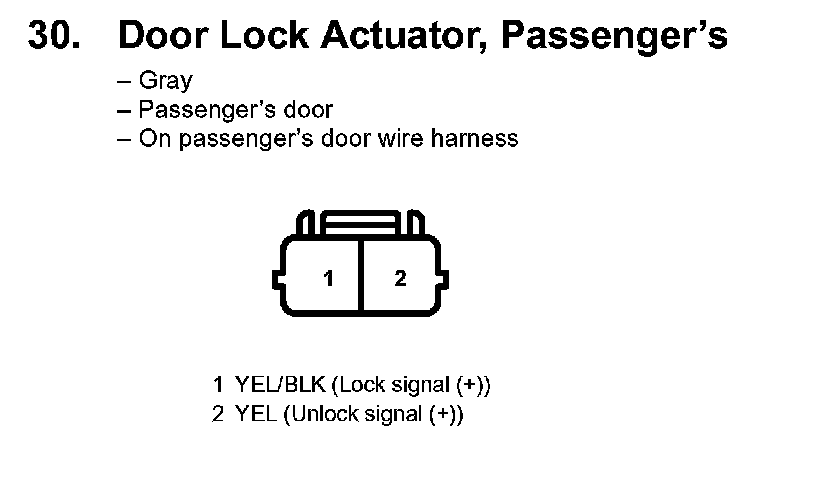

30. Door Lock Actuator, Passenger's:
