Trim Removal/Installation - Rear Side Area
Trim Removal/Installation - Rear Side AreaSpecial Tools Required
KTC trim tool set SOJATP2014
NOTE:
- Put on gloves to protect your hands.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to bend or scratch the trim and panels.
1. To remove the rear side trim panel, remove these items:
- Rear seat cushion and rear seat-back
- Cargo floor mat and cargo area floor
- Rear trim panel

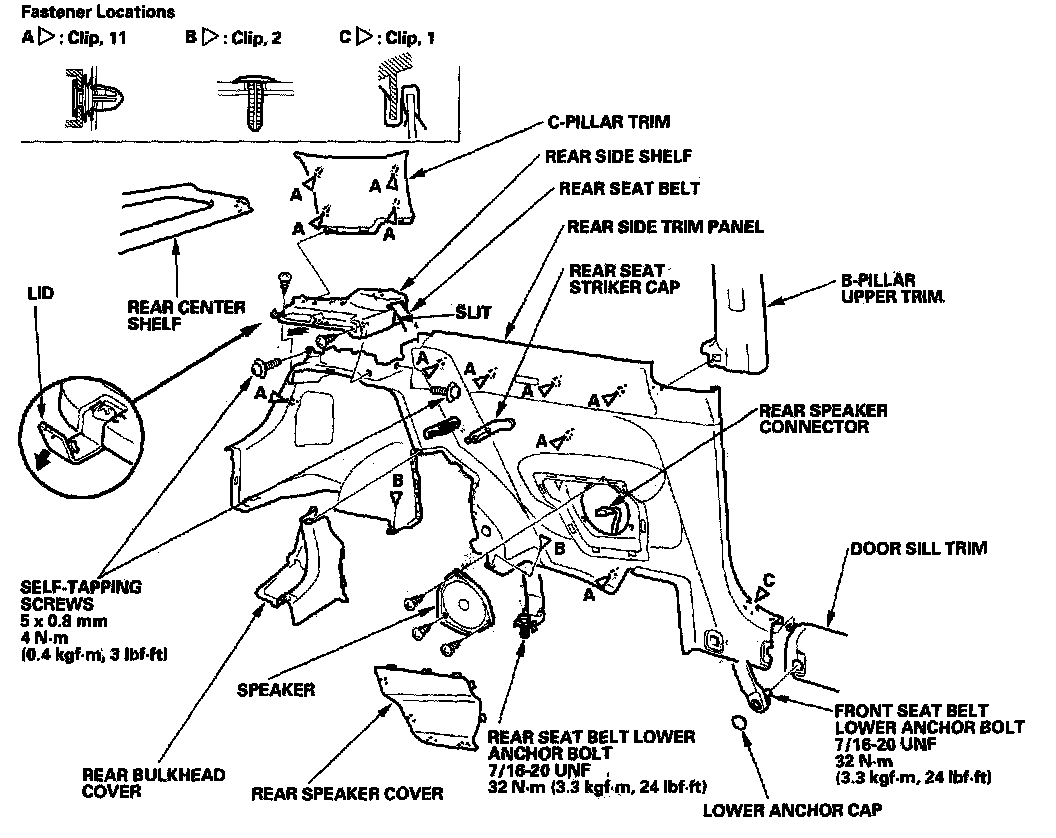

2. Remove the trim as shown. On the right side, disconnect the cargo compartment light connector.
3. Install the parts in the reverse order of removal, and note these items:
- Replace any damaged clips, and push the clips into place securely.
- Make sure the cargo compartment light connector is plugged in properly.
- If the threads on the rear side trim panel mounting self tapping ET screws are worn out, use an oversized self-tapping ET screw (P/N 901 37-S1A-EO1) made specifically for this application.
- When installing the rear side shelf, slip the rear seat belt through the slit in the trim.
- Apply liquid thread lock to the anchor bolts before reinstallation.
- Before installing the anchor bolts, make sure there are no twists or kinks in the seat belt.
