Trim Removal/Installation - Hatch Area

Trim Removal/Installation - Hatch Area

Special Tools Required
KTC trim tool set SOJATP2014

NOTE:
- Put on gloves to protect your hands.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components
- Take care not to bend or scratch the trim and panels.

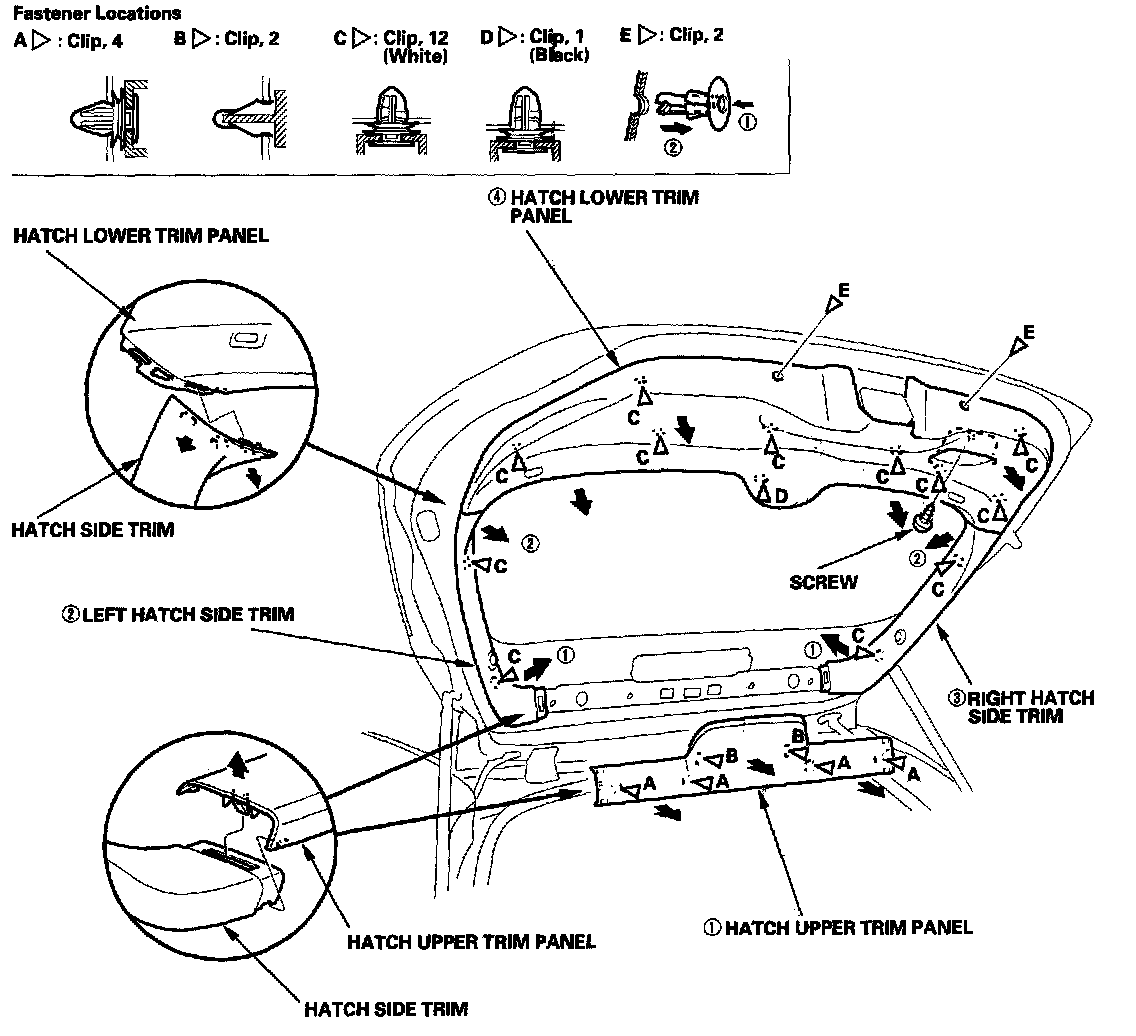

1. Remove the trim in the sequence shown.
- Hatch upper trim panel
- Left hatch side trim
- Right hatch side trim
- Hatch lower trim panel




2. Install the trim in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Push the clips into securely.
