Trim Removal/Installation - Cargo Floor Area
Trim Removal/Installation - Cargo Floor AreaSpecial Tools Required
KTC trim tool set SOJATP2014
NOTE:
- Put on gloves to protect your hands.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to bend or scratch the trim and panels
1. To remove the rear trim panel, remove the child seat tether anchor.

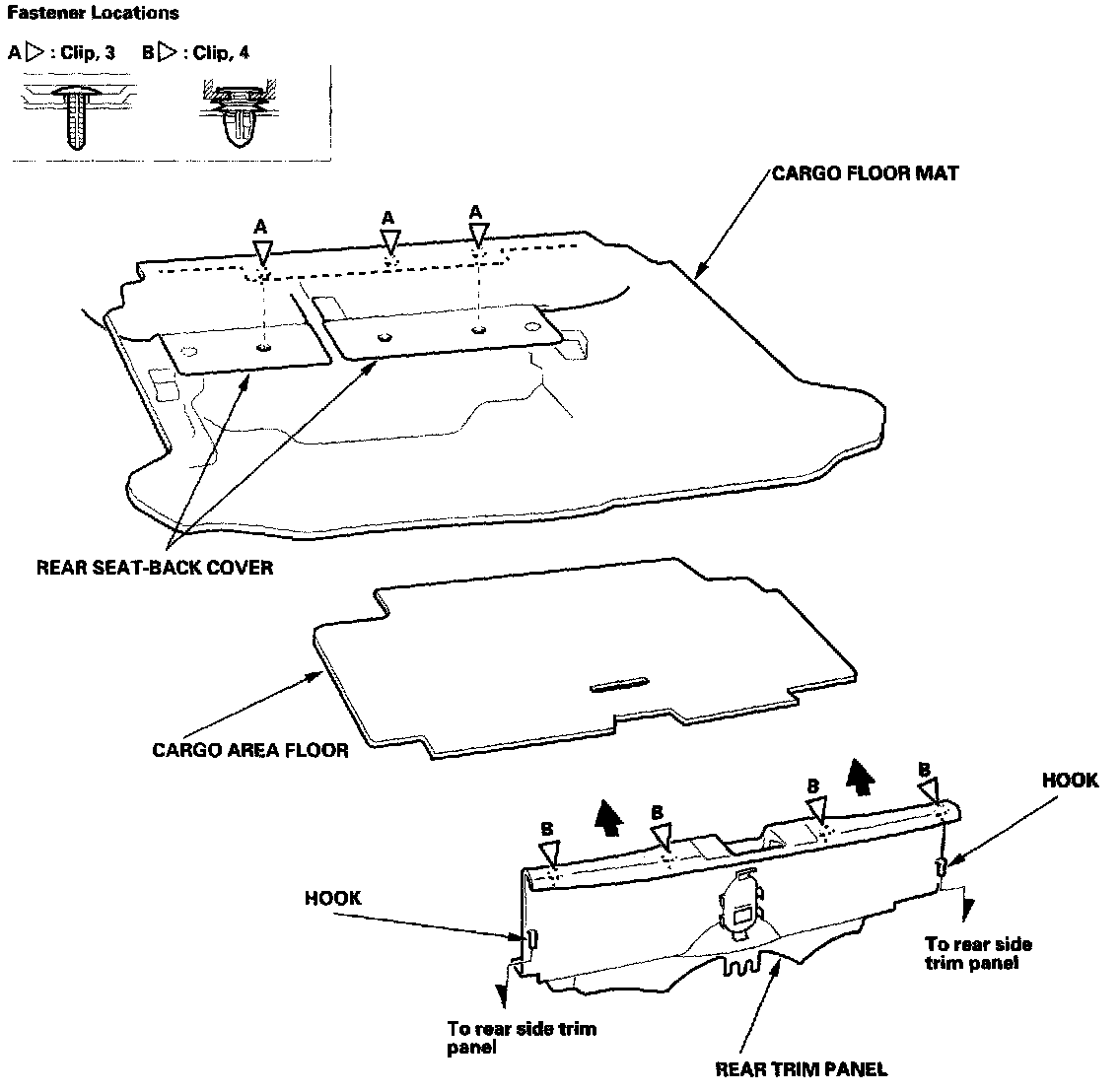

2. Remove the trim as shown.
3. Install the trim in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Push the clips into place securely.
