Headliner: Service and Repair

Headliner Removal/installation

Special Tools Required
KTC trim tool set SOJATP2014

NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to bend and scratch the headliner.
- Be careful not to damage the dashboard and other interior trim.

1. Remove these items:
- A-pillar trim, both sides
- B-pillar upper trim, both sides
- Hatch weatherstrip, as necessary
- C-pillar trim, both sides
- Moonroof switch
- Spotlights
- Ceiling light

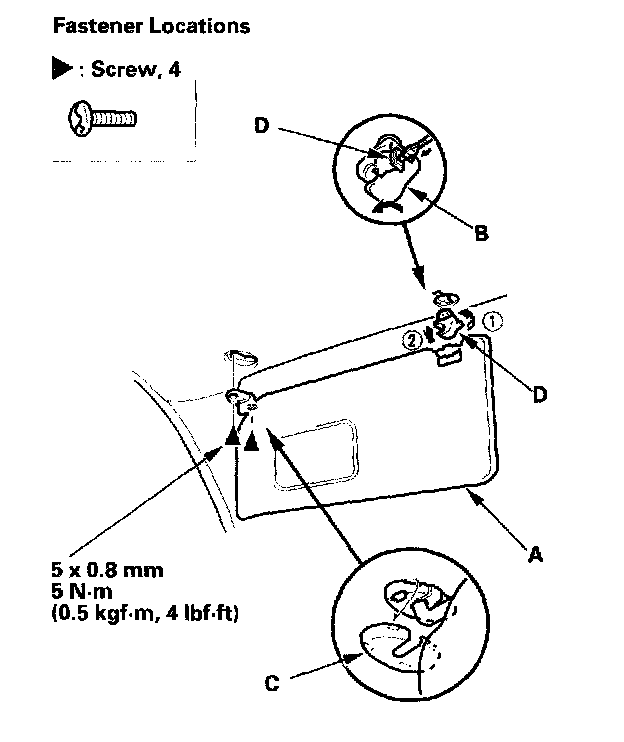

2. Remove the sunvisor (A) and holder (B) from both sides.
1. Remove the caps (C).
2. Remove the screws.
3. Remove the sunvisor from the body and holder.
4. Using a flat-tip screwdriver, push the hook (D), and turn the holder 900, then pull it out.

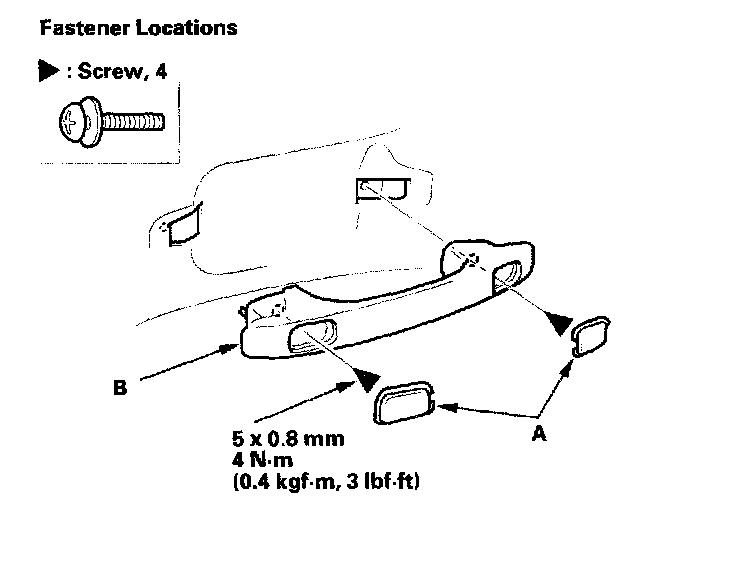

3. Remove the caps (A) from both rear passenger grab handles (B). Remove the screws, and then remove the handles.




4. Remove the headliner (A).
1. Remove the socket plug (B).
2. Remove the remaining door opening trim (C) from each roof portion.
3. Detach the rear clips (D) by pulling the rear portion of the headliner down.
4. Detach the front clips (E).6 and release the fasteners (F) by pulling the front portion of the headliner down.
5. With the help of an assistant, release the clips (G) of the headliner from the moonroof frame (H) by sliding the head liner forward,and lowering it.
6. Remove the headliner through the passenger's door opening.

5. Install the headliner in the reverse order of removal, and note these items:
- When reinstalling the headliner through the passenger's door opening, be careful not to fold or bend it. Also, be careful not to scratch the body.
- Check that both sides of the headliner are securely attached to the trim.
- Remove any clips that remain in the roof during removal, and reinstall them back in the headliner before installation.
